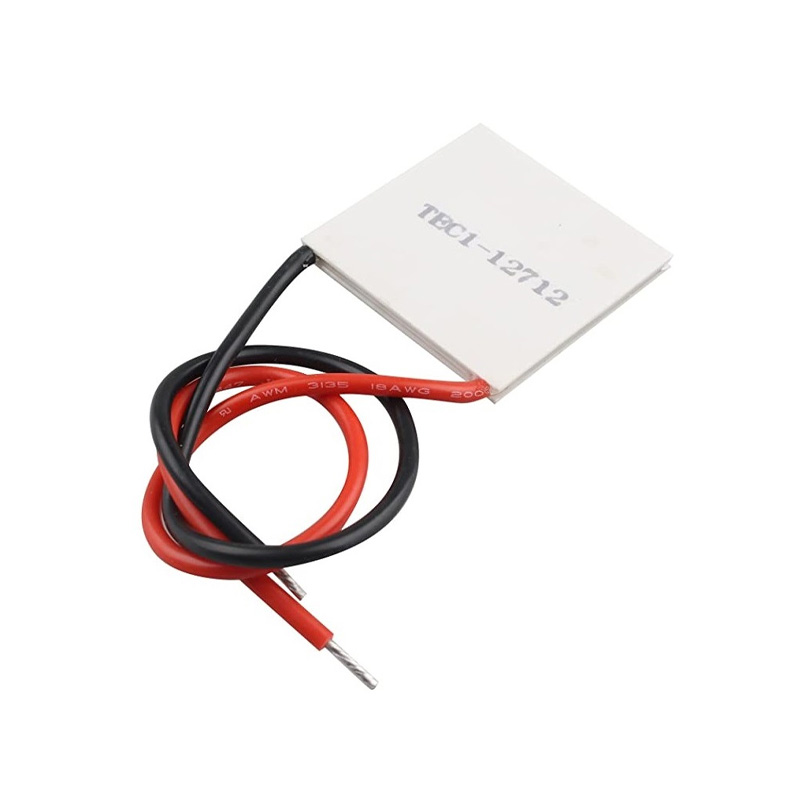

Pro-Range TEC1-12712 40x40mm Thermoelectric Cooler Peltier Module - 15.8V, 12A, 103.5W

You need a DC power supply capable of delivering at least 15.8V and a continuous current of 12A or higher. The module's performance is rated at these specific parameters, so using a lower voltage or current-limited supply will reduce its cooling capacity and maximum temperature differential. Ensure your power source and wiring can handle the ~190W power draw.

Yes, a heat sink is absolutely critical. The hot side of the Peltier module must be actively cooled to dissipate the heat pumped from the cold side plus the electrical energy input. Without adequate heat sinking, the module will overheat, leading to drastically reduced efficiency, potential thermal runaway, and permanent damage. Use a high-performance heatsink with forced air or liquid cooling.

Yes. The direction of heat transfer is determined by the polarity of the applied DC voltage. By reversing the polarity, the sides swap functions, allowing the module to act as a heater. This makes it useful for applications requiring precise temperature cycling or dual-mode thermal control. Always ensure your control circuit can manage the high current during polarity switching.

In common TEC nomenclature, '127' typically indicates the number of thermoelectric couples (127 pairs) inside the module, which correlates with its power handling and ΔT capability. The '12' often refers to the maximum current rating in Amperes (12A). More couples generally allow for a greater heat pumping capacity and temperature differential at the specified current.
