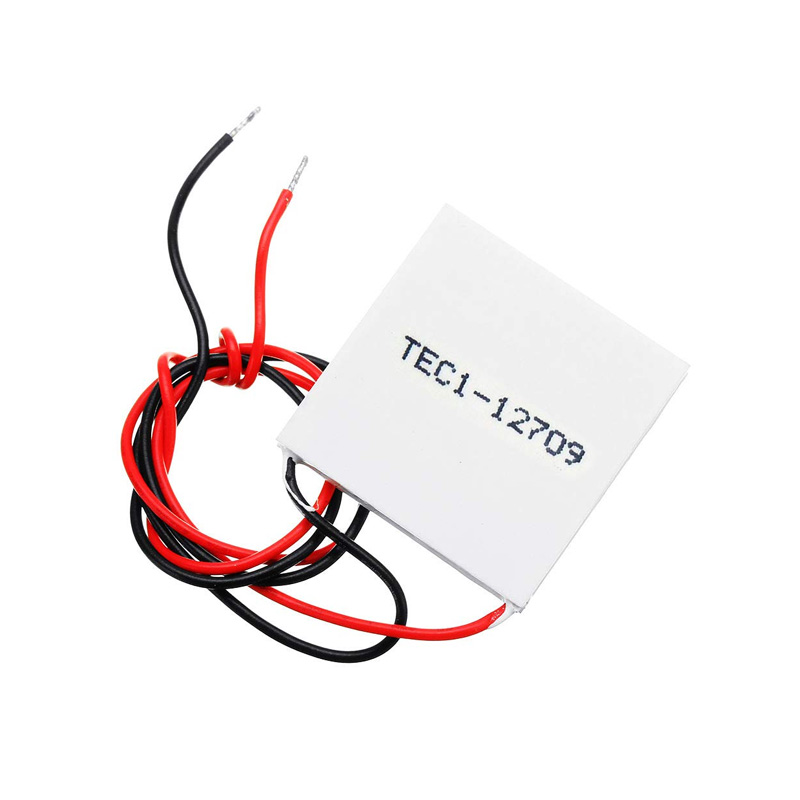

Pro-Range TEC1-12709 40x40mm Thermoelectric Cooler Module - 15.8V, 9A, 77W Cooling
The Pro-Range TEC1-12709 is a 40x40mm Peltier thermoelectric cooler module designed for active cooling in industrial, commercial, and high-power electronic systems. Operating at 15.8V DC and 9A, it provides up to 77W of cooling capacity with a maximum temperature differential of 65°C.
Features
- High-Performance Peltier Module with 77W Maximum Cooling Capacity
- Rated for 15.8V DC Operation at 9A Current Draw
- Compact 40mm x 40mm x 4.4mm Footprint for Space-Constrained Designs
- Maximum Temperature Differential (ΔT) of 65°C Between Hot and Cold Sides
- Silicone-Sealed Construction for Moisture and Environmental Protection
Out of stock
The Pro-Range TEC1-12709 is a solid-state thermoelectric cooler based on the Peltier effect, where an applied DC current creates a heat flux between its ceramic substrates. This module is engineered for demanding thermal management tasks, transferring heat efficiently from the cold side to the hot side for active cooling without moving parts.
With a rated voltage of 15.8V and a current of 9A, it delivers a substantial cooling power of 77W, making it suitable for stabilizing temperatures in high-power electronics, laser diodes, CCD cameras, and portable refrigeration units. The module features a durable, silicone-rubber-sealed construction that protects the internal bismuth telluride elements from moisture and contaminants, ensuring reliable performance across a broad operating temperature range from -55°C to +83°C.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4 × 4 × 0.44 cm |
