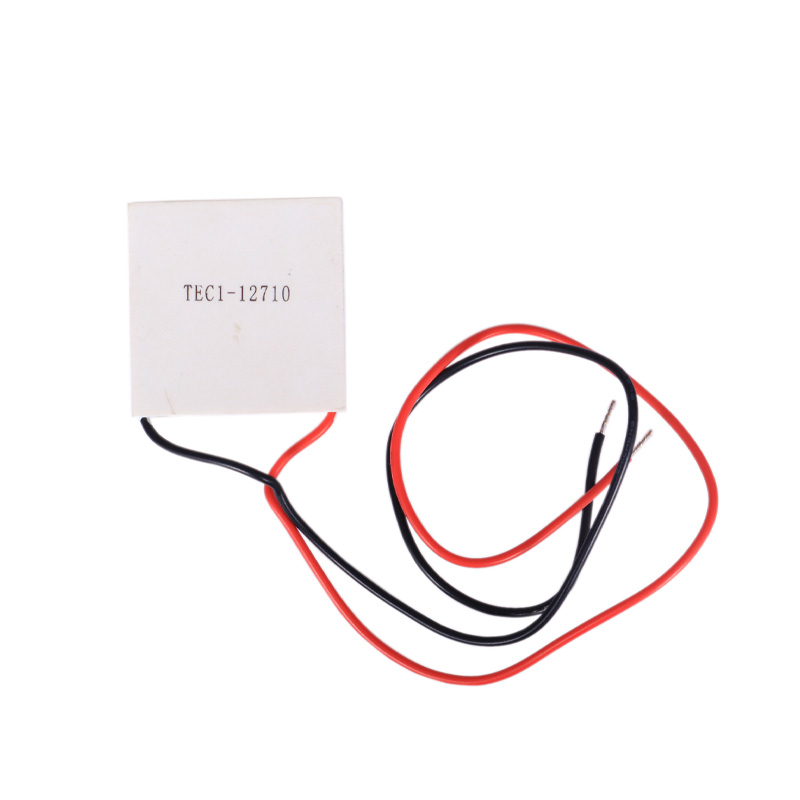

Pro-Range TEC1-12710 40x40mm Thermoelectric Cooler Peltier Module - 15.8V, 10A, 86W
The Pro-Range TEC1-12710 is a high-performance 40x40mm Peltier thermoelectric cooler module, delivering up to 86W of cooling capacity with a maximum 65°C temperature differential. It operates at 15.8V DC and 10A, making it suitable for industrial cooling systems, electronic enclosures, and precision temperature control applications.
Features
- High-Capacity Cooling: Delivers up to 86W of cooling power for effective heat transfer.
- Significant Temperature Differential: Capable of achieving a maximum ΔT of 65°C between hot and cold sides.
- Robust Electrical Specs: Rated for 15.8V DC operation at 10A for stable, high-power performance.
- Compact & Durable Build: Measures 40mm x 40mm x 3.4mm with a silicone-sealed, moisture-resistant construction.
- Wide Operating Range: Functions reliably in ambient temperatures from -55°C to +83°C.
Out of stock
The Pro-Range TEC1-12710 utilizes the Peltier effect to create a controlled heat flux, transferring thermal energy from its cold side to its hot side when DC power is applied. This solid-state heat pump is ideal for applications requiring precise, active cooling without moving parts or refrigerants.
Engineered for demanding thermal management, the module features a ceramic substrate construction with bismuth telluride semiconductor pellets, ensuring efficient operation and structural integrity. Its silicone rubber seal provides environmental protection against moisture and contaminants, enhancing long-term reliability in industrial settings.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 4 × 4 × 0.34 cm |
