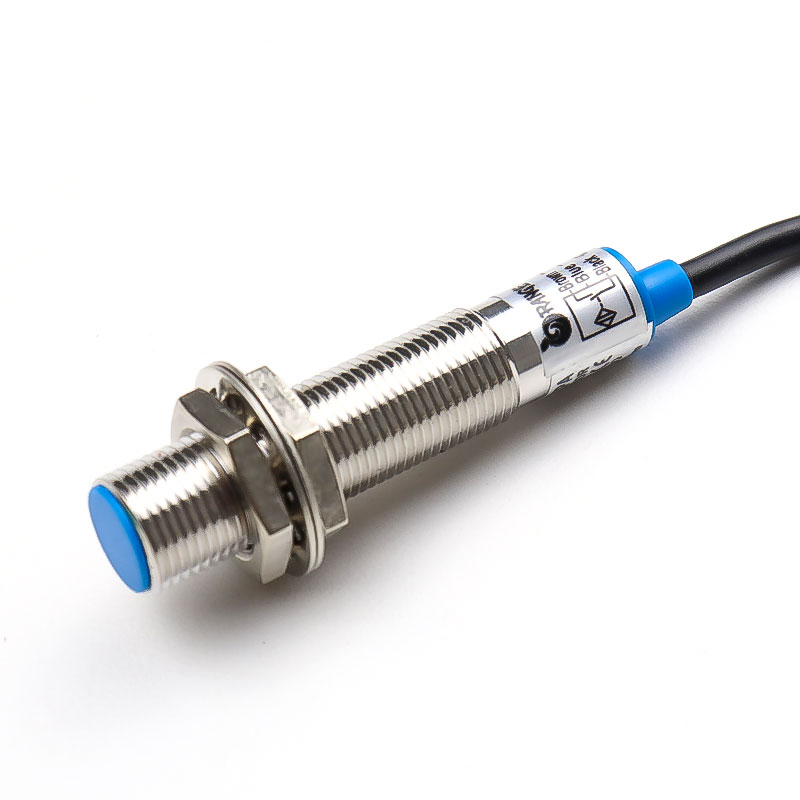

Pro-Range RM12 2mm PNP Inductive Proximity Sensor (Shielded) - M12 Thread, 2m Cable

This RM12 model is a shielded (flush-mount) sensor. Its internal coil is surrounded by a metal shield that confines the magnetic field primarily to the front face. This allows it to be installed flush with or embedded into a metal mounting bracket without the bracket itself triggering a false detection. Unshielded sensors have a larger, radial sensing field and require a non-metallic clearance around the sides.

Connect the Red wire to your positive DC supply voltage (6-36V), the Blue wire to the DC common (0V/GND), and the Black wire (signal output) to your PLC's digital input. For a typical PLC with a sinking input (connected to 0V internally), the Black wire will source current to the input when a metal target is detected, closing the circuit. Always ensure polarity is correct to activate the built-in reverse protection.

Inductive sensors primarily detect ferrous metals (like iron and steel) with the highest sensitivity. They can also detect non-ferrous metals (aluminum, copper) but at a reduced effective distance, typically 30-60% of the nominal 2mm rating. The actual reliable operating point (setting distance) should be ≤ 1.4mm (70% of nominal) to account for temperature drift and supply voltage variations.

Yes, the IP67 protection rating certifies that the sensor is dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for washdown areas, machining centers with coolant, and other environments with exposure to water, oil, and cutting fluids, provided the electrical connections are properly sealed.
