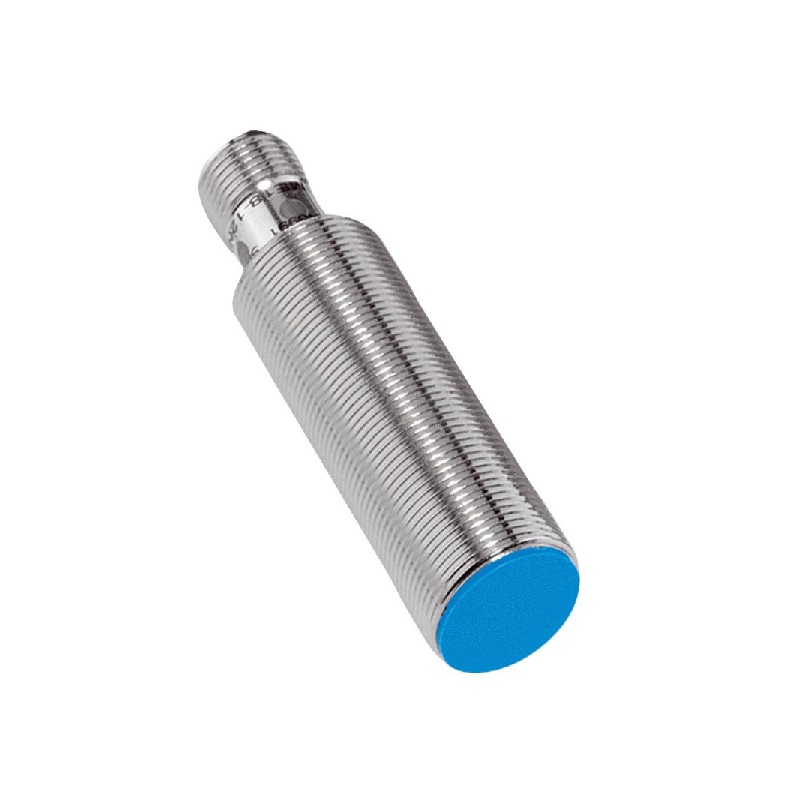

SICK IME18-08BPOZC0S Inductive Proximity Sensor, 8 mm Range, PNP Output, M18 x 1 Thread, 10-30 VDC
The SICK IME18-08BPOZC0S is an industrial-grade inductive proximity sensor from the IME series, featuring an 8 mm sensing range, PNP switching output, and an M18 x 1 threaded metal housing. It operates from a 10-30 VDC supply and connects via a 4-pin M12 male connector, making it suitable for integration into PLCs, industrial automation, and machine control systems.
Features
- 8 mm (Sn) standard sensing distance for flush mounting applications.
- PNP (sourcing) output with a 1000 Hz switching frequency for fast response.
- Robust M18 x 1 threaded metal housing with hotmelt encapsulation for high shock and vibration resistance.
- Wide 10-30 VDC operating voltage range for flexible power supply compatibility.
- Integrated ASIC ensures precise, digitally-adjusted switching points and high repeatability across production runs.
Out of stock
The SICK IME18-08BPOZC0S is a high-performance inductive proximity sensor designed for reliable non-contact detection of metallic objects in demanding industrial environments. Its operation is based on the eddy current principle, where an integrated oscillator circuit is damped by the presence of a conductive target, triggering a precise switching signal.
Engineered for durability, the sensor is fully encapsulated with hotmelt moulding, significantly enhancing its resistance to mechanical shock, vibration, and environmental contaminants. The integrated Application-Specific Integrated Circuit (ASIC) allows for digital calibration post-manufacturing, guaranteeing highly accurate and repeatable switching points for consistent long-term performance in automated machinery and positioning systems.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 12 × 9 × 4 cm |
