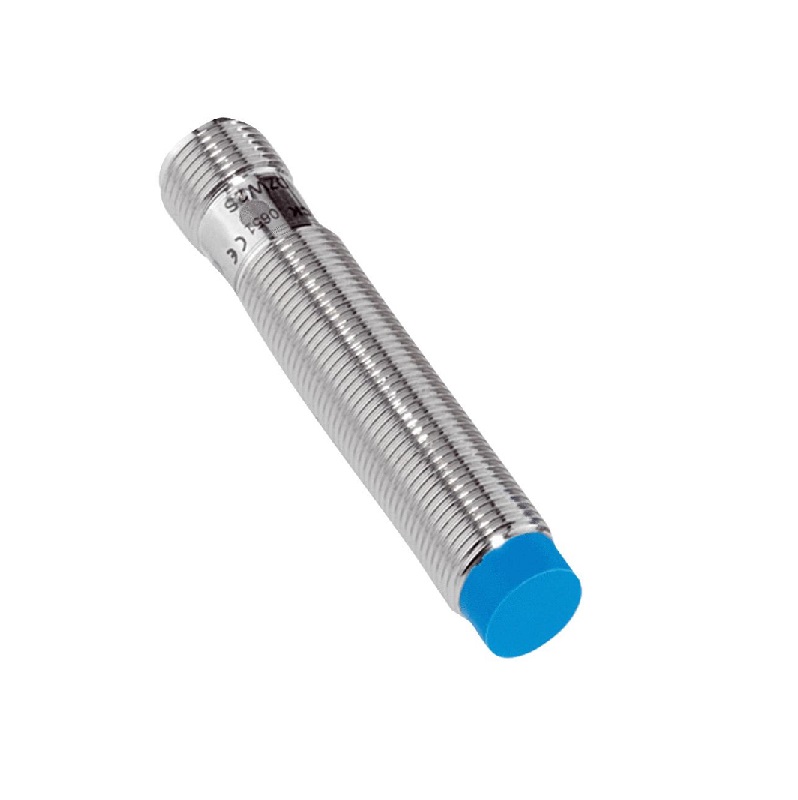

SICK IME12-08NPSZC0S Inductive Proximity Sensor, M12 Thread, PNP NO, 3-Wire, 8mm Range, IP67

This IME12-08NPSZC0S sensor is specified for non-flush (unshielded) mounting. Non-flush sensors can detect metal targets from the sides as well as the front, providing the full 8mm sensing range. They must be installed with a clearance zone free of surrounding metal to avoid false triggering, unlike flush-mounted sensors which can be embedded in metal.

Not directly. This sensor outputs a switching signal at the supply voltage level (10-30VDC). To connect it to a 3.3V or 5V logic device like an Arduino, you will need an interface circuit, such as an opto-isolator or a voltage divider, to safely step down the signal voltage to a compatible level for the microcontroller's digital input pin.

Inductive sensors detect all conductive metals, including steel, aluminum, copper, and brass. However, the effective sensing range can vary slightly depending on the target material's conductivity and permeability. For ferrous metals like steel, the range is typically at its nominal 8mm. For non-ferrous metals like aluminum, the effective range may be reduced, often by 30-50%.

The 4-pin M12 connector is a standard industrial form factor. For this 3-wire PNP sensor, three pins are used: one for the positive supply voltage (V+), one for the switched output signal, and one for the common negative (0V). The fourth pin is typically unused or reserved for diagnostic functions in other sensor variants, providing a consistent physical interface across a product family.
