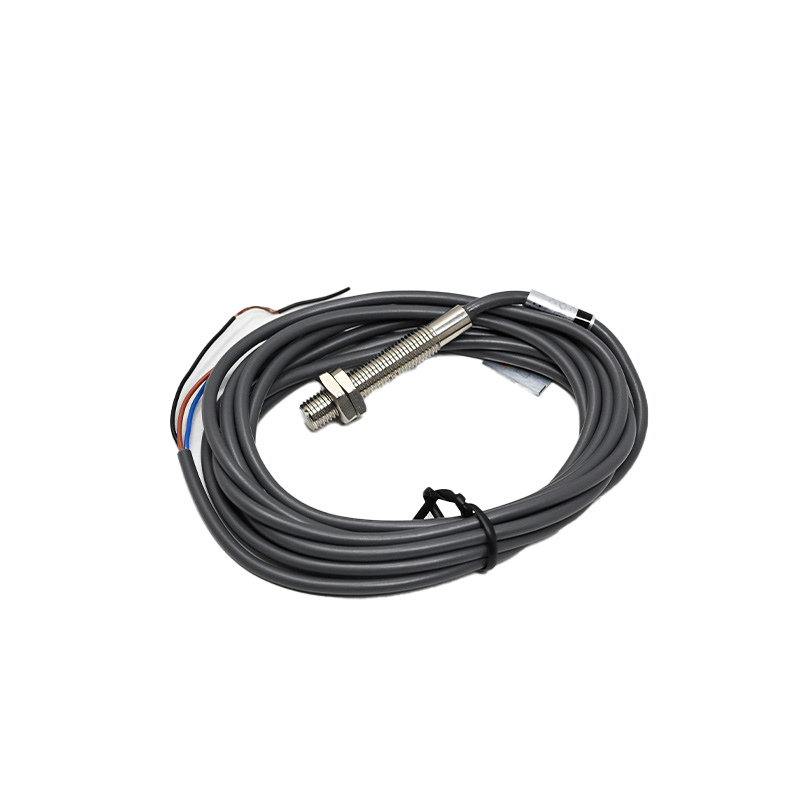

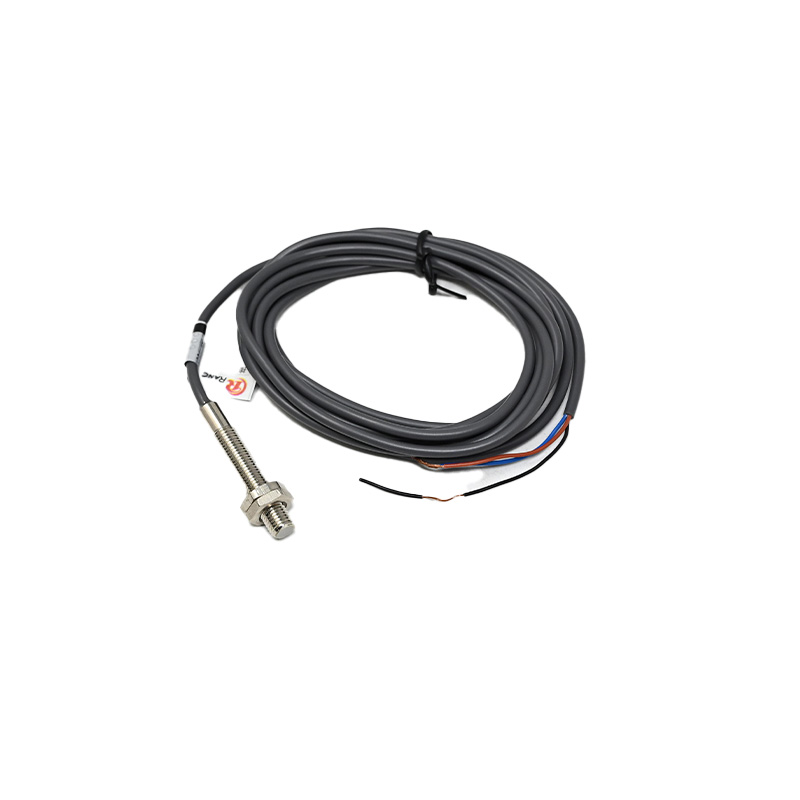

Generic LJ6A3-1-Z/AX Inductive Proximity Sensor NPN NC, 1mm Detection, IP65, Shielded

The NPN Normally Closed (NC) output provides a continuous current path to ground (sinking) when no target is present, and opens the circuit when a metal object is detected within the 1mm range. This is the inverse of a Normally Open (NO) output, which closes the circuit to ground upon detection. The NC configuration is often used for fail-safe monitoring, where a broken wire or power loss is interpreted as an alarm state.

Yes, the LJ6A3-1-Z/AX is fully compatible with 24VDC industrial PLC systems. Its wide 6-36VDC operating range is designed to accommodate common voltage levels like 12VDC and 24VDC. Simply connect the brown wire to +24V, the blue wire to 0V/common, and the black wire to your PLC's digital input. Ensure the PLC input is configured to accept an NPN sinking signal.

This shielded inductive sensor detects both ferrous (like steel and iron) and non-ferrous (like aluminum and copper) metals, though the sensing distance may reduce slightly for non-ferrous targets. The nominal detection distance (Sn) is 1mm for a standard steel target. The practical setting distance for reliable operation should be adjusted between 0 and 0.8mm to account for manufacturing tolerances and temperature drift.

The IP65 rating protects the sensor against dust ingress and low-pressure water jets from any direction, making it suitable for washdown areas or dusty industrial environments. The shielded (Z) design means the sensor's electromagnetic field is concentrated axially in front of the sensing face, allowing for side-by-side mounting without mutual interference, which is critical in dense sensor arrays.
