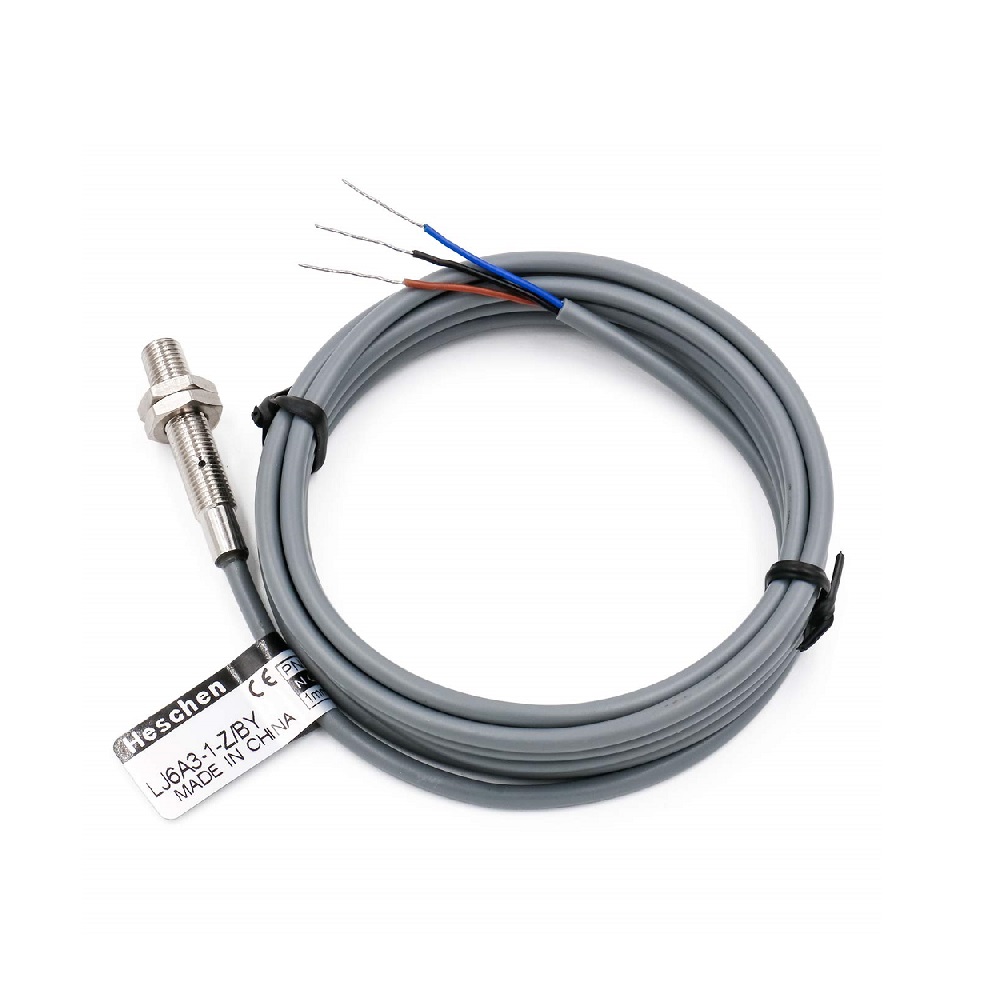

Generic LJ6A3-1-Z/BY Inductive Proximity Sensor, PNP NO, 1mm Range, 10-30VDC, IP65
The LJ6A3-1-Z/BY is a PNP normally open (NO) inductive proximity sensor designed for non-contact detection of metallic objects within a 1mm range. Operating from a 10-30VDC supply, it features a robust brass-nickel plated housing with IP65 protection for reliable performance in industrial automation and control systems.
Features
- PNP Normally Open (NO) output for direct interface with PLCs and controllers.
- 1mm nominal detection distance for precise metal object sensing.
- Wide 10-30VDC operating voltage range for flexible system integration.
- IP65-rated brass-nickel plated housing for durability in harsh industrial environments.
- Includes reverse polarity protection to safeguard the sensor from wiring errors.
Out of stock
The LJ6A3-1-Z/BY operates on the inductive sensing principle, generating an electromagnetic field to detect the presence of ferrous and non-ferrous metal targets without physical contact. Its three-wire configuration provides a clean switching signal compatible with standard programmable logic controllers (PLCs) and industrial I/O modules.
Constructed with a brass-nickel plated body and an ABS sensing face, this sensor is engineered for longevity in environments with dust, oil, and coolants. The IP65 ingress protection rating ensures reliable operation against water jets and particulate matter, making it suitable for machine tools, packaging equipment, and material handling systems.
Additional Information
| Weight | 0.138 kg |
|---|---|
| Dimensions | 12 × 8 × 3 cm |
