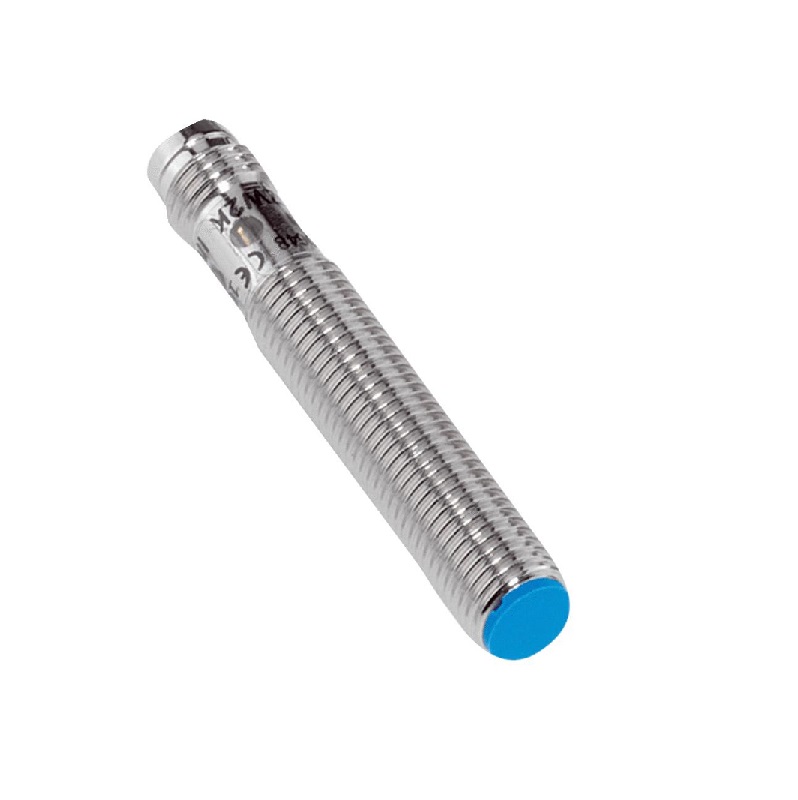

SICK IME08-02BPSZT0S Inductive Proximity Sensor, M8 Thread, PNP NO, 3-Wire, 2mm Sensing Range, IP67

The sensor uses a standard 3-wire configuration via its M8 connector. The brown wire is for the positive supply voltage (10-30V DC), the blue wire is the common ground (0V), and the black wire is the PNP switching output. When a metal target is detected within the 2mm range, the black output wire switches to supply voltage (high). Ensure your PLC or controller input is configured to accept a PNP (sourcing) signal.

Inductive proximity sensors are primarily designed for ferrous metals (steel, iron). The sensing range for non-ferrous metals like aluminum, brass, or copper is significantly reduced, typically to 30-60% of the nominal 2mm range. For reliable detection of non-ferrous targets, you may need to select a sensor specifically designed for all-metals detection or reduce the required operating distance.

Flush installation means the sensor's sensing face can be mounted level with (flush to) a metal mounting surface without a loss of sensing range. This IME08 sensor is designed for flush mounting. However, you must maintain a minimum lateral clearance between the sensor body and any surrounding metal; for an M8 sensor, a clearance of at least one thread diameter (8mm) from adjacent metal is recommended to prevent false triggering.

Yes, the SICK IME08 series incorporates robust built-in protection. It features short-circuit protection on the output, reverse polarity protection on the supply lines, and protection against voltage spikes during power-up. This makes it highly durable and suitable for direct connection to industrial PLCs and controllers without requiring additional external protection circuits in most applications.
