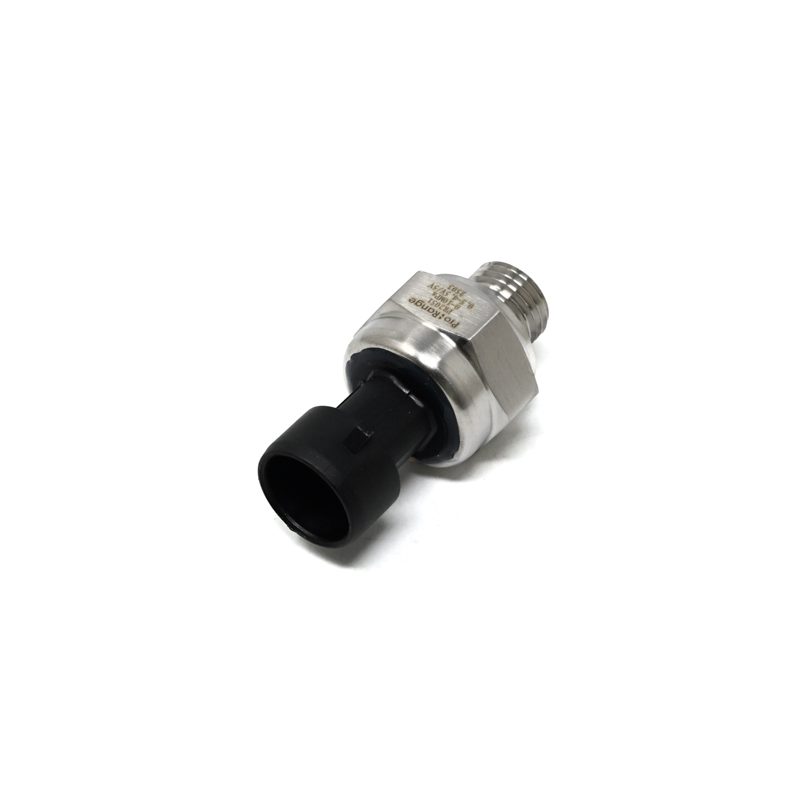

Pro-Range PR2051 Pressure Transducer 0-10 MPa, 0.5-4.5V Output, G1/4" Thread

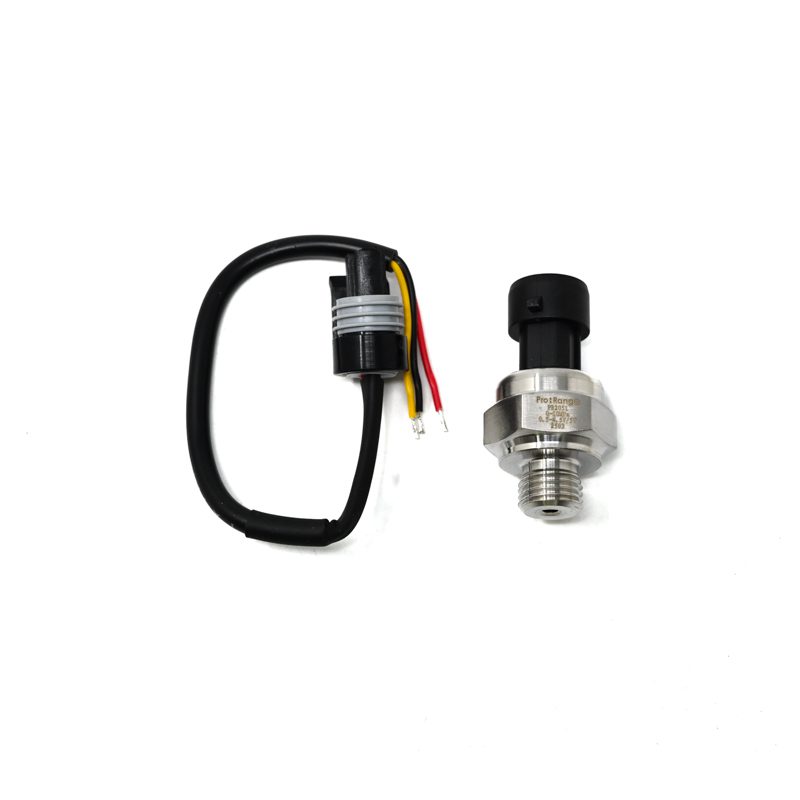

Pro-Range PR2051 Pressure Transducer 0-10 MPa, 0.5-4.5V Output, G1/4" Thread - Image 2
SKU: SENS-2235
📋 GST Invoice Available

Pro-Range PR2051 Pressure Transducer 0-10 MPa, 0.5-4.5V Output, G1/4" Thread

₹1,029.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range PR2051 is an industrial-grade pressure transducer with a 0-10 MPa measurement range and a 0.5-4.5V analog output, designed for seamless integration with PLCs, data acquisition systems, and 5V microcontroller platforms like Arduino for precise fluid and gas pressure monitoring.

Features

  • 0-10 MPa (0-1450 psi) pressure measurement range for industrial applications.
  • 0.5-4.5V ratiometric analog output compatible with 5V ADC systems.
  • Standard G1/4″ threaded connection for secure installation in fluid systems.
  • Robust construction ensures stable, accurate performance in demanding environments.
  • Ideal for hydraulic systems, industrial automation, and process control monitoring.

Out of stock

Description

The PR2051 pressure transducer utilizes a high-stability sensing element, typically a piezoresistive strain gauge, to convert applied pressure into a precise linear voltage signal. The 0.5-4.5V output is ratiometric to the supply voltage, providing excellent noise immunity and simplifying calibration with common 5V microcontrollers and industrial PLC analog inputs.

Engineered for durability, the transducer features a robust housing suitable for industrial environments. Its G1/4″ threaded port ensures a leak-proof connection in pneumatic and hydraulic lines, making it a reliable component for continuous pressure monitoring and control system feedback.

Key Features

  • High-accuracy piezoresistive sensing technology for reliable pressure measurement.
  • 0.5-4.5V analog voltage output provides a linear signal proportional to applied pressure.
  • Industrial-grade construction with a G1/4" threaded stainless steel pressure port.
  • Wide operating temperature range ensures performance in varied environmental conditions.
  • Excellent long-term stability and repeatability for critical monitoring applications.
  • Optimized performance-to-cost ratio for professional and industrial system integration.

Applications

  • Hydraulic and pneumatic system pressure monitoring and control.
  • Industrial process control and automation for fluid handling.
  • Compressed air system performance and leak detection.
  • Pump and compressor output pressure regulation and safety cut-off.
  • Test bench and R&D setups for mechanical force and pressure measurement.

Technical Specifications

Model NumberPR2051
Pressure Range0 - 10 MPa
Output Signal0.5 - 4.5 V
Electrical Connection3-pin wire leads (Vcc, Output, GND)
Pressure Port ThreadG1/4"
Supply Voltage5 V DC (typical)
Operating Temperature-20°C to +85°C (typical)
Accuracy±0.5% FS (typical)
Media CompatibilityLiquids, gases compatible with stainless steel

Frequently Asked Questions

What is the supply voltage for the PR2051 pressure transducer?

The PR2051 transducer typically operates on a 5V DC supply. The 0.5-4.5V analog output signal is ratiometric to this supply voltage, meaning the output scales linearly with the input voltage, ensuring accurate readings even with minor supply variations.

How do I wire the PR2051 transducer's 3-pin connector?

The standard wiring configuration is: Red wire for Vcc (5V DC), Black wire for Ground (GND), and the remaining wire (often White or Blue) for the Analog Output signal. Always verify the specific pinout in the product datasheet before connecting to your PLC or microcontroller's analog input pin.

Can this sensor measure both gas and liquid pressure?

Yes, the PR2051 is compatible with both non-corrosive gases and liquids, thanks to its stainless steel pressure port and sensing diaphragm. Ensure the media is compatible with stainless steel to prevent damage or corrosion over time.

What is the accuracy and response time of this transducer?

The transducer offers a typical accuracy of ±0.5% of full scale (FS) and a fast response time suitable for dynamic pressure monitoring in industrial control loops. For precise system design, consult the manufacturer's datasheet for detailed specifications on nonlinearity, hysteresis, and thermal error.

Package Includes

  • 1 x Pro-Range PR2051 Pressure Transducer

Additional Information

Weight 0.098 kg
Dimensions 8 × 4 × 4 cm
