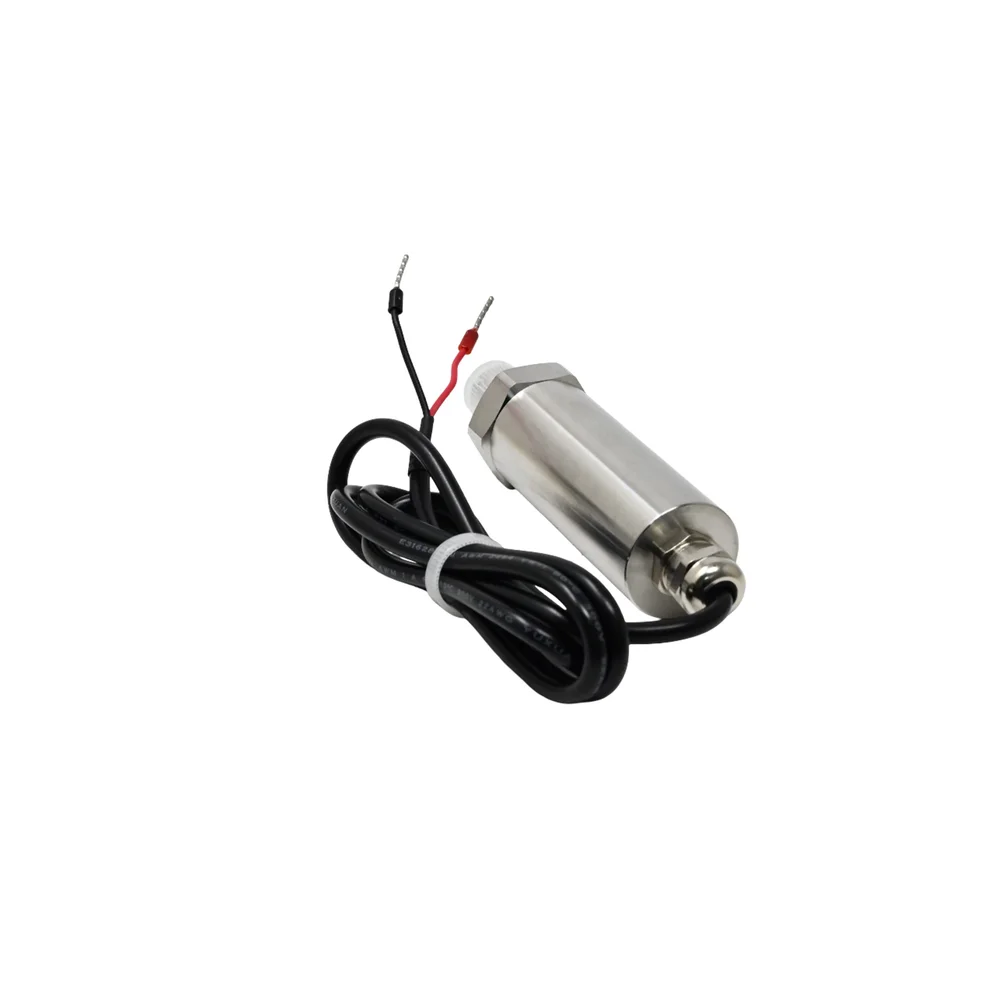

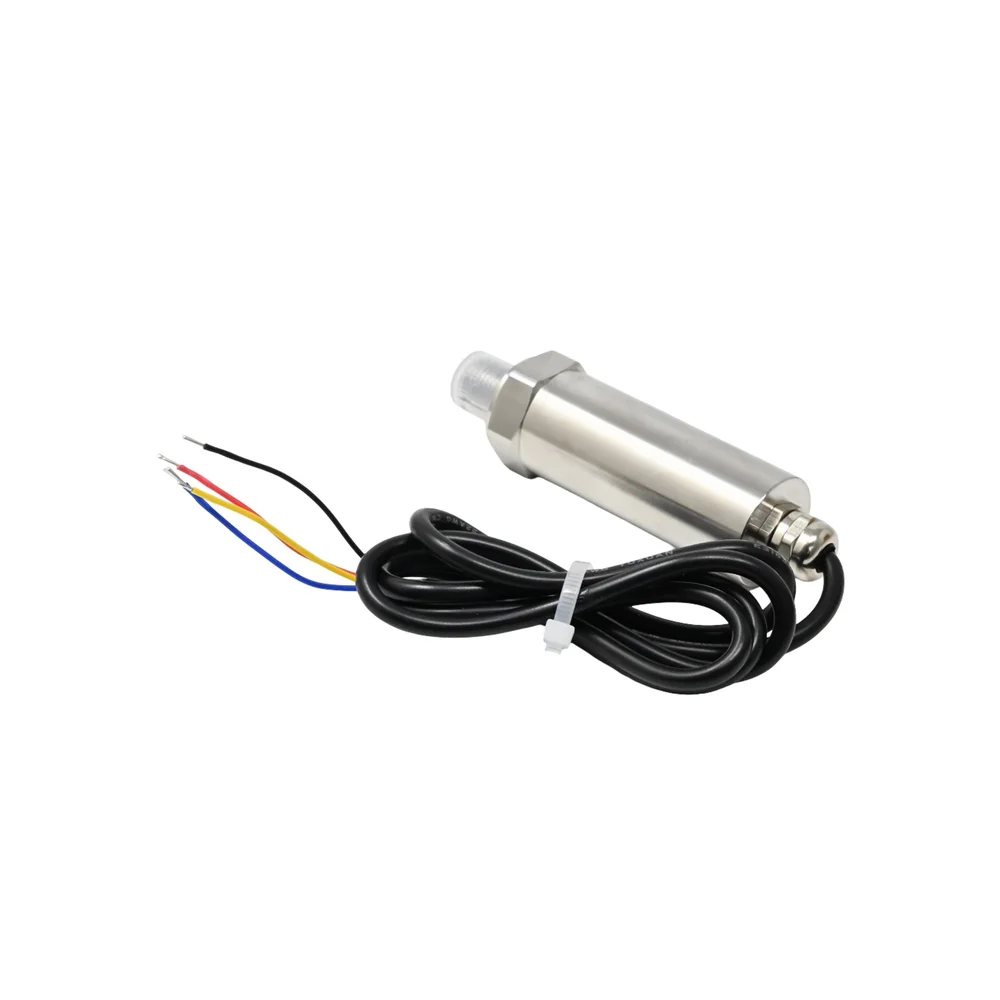

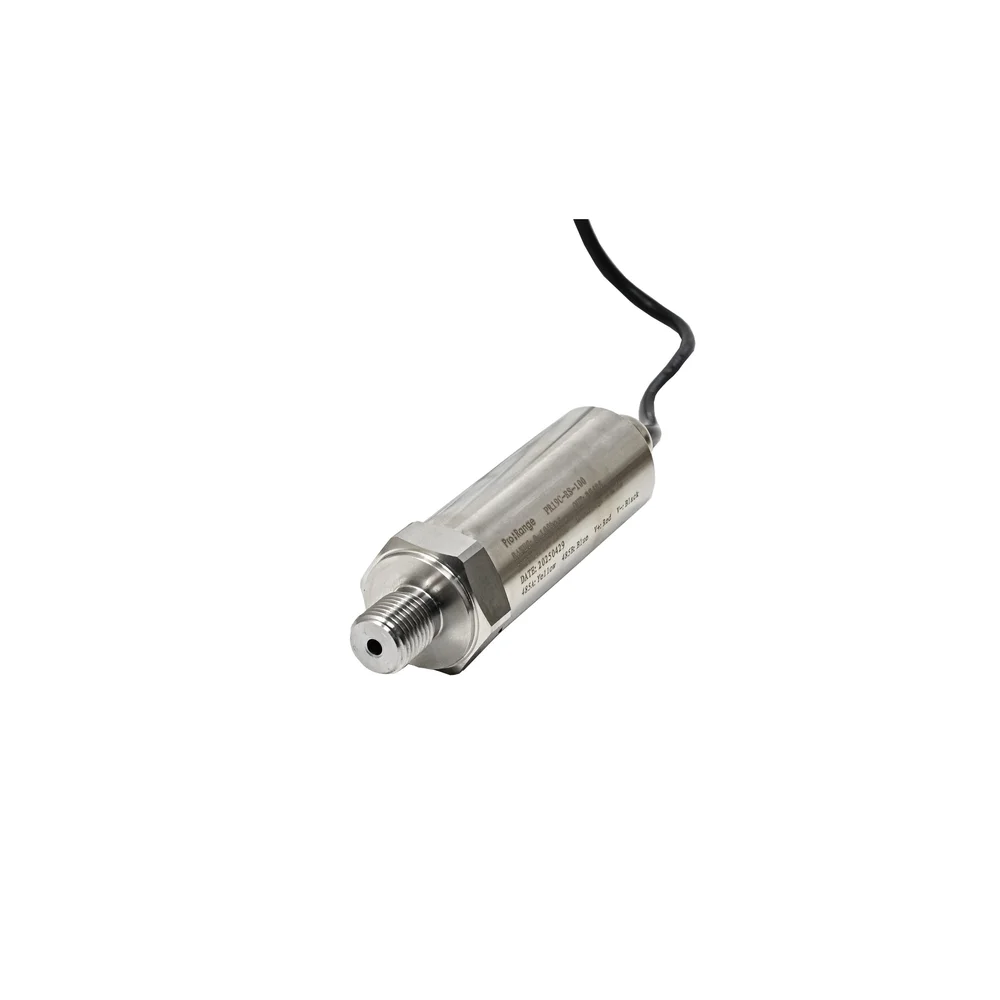

Pro-Range PR19C-RS-100 Pressure Sensor 0-10 MPa - RS485 Output, G1/4 Thread, 1m Cable

The RS485 interface on the PR19C-RS-100 typically uses the Modbus RTU protocol, a standard industrial communication standard. You will need a Modbus master (like a PLC, SCADA system, or USB-to-RS485 converter with software) to read the pressure register. Consult the product datasheet for the specific Modbus register map and baud rate configuration.

Yes, the sensor's wide operating voltage range of 10-32 VDC fully supports standard 24V industrial power supplies. Ensure your power source can provide sufficient current (typically under 50mA) and is properly fused. The RS485 communication lines should be connected to your controller's RS485 port, often requiring a separate termination resistor at the end of the bus.

No, G1/4 is a British Standard Parallel Pipe (BSPP) thread with a 55-degree flank angle and a parallel (non-tapered) design. It is not directly compatible with NPT (National Pipe Tapered) threads, which have a 60-degree flank angle and a tapered design. To connect to an NPT system, you will need a suitable adapter fitting (e.g., G1/4 female to 1/4" NPT male).

While the exact specifications should be verified in the official datasheet, sensors in this class typically offer an accuracy of ±0.5% FS (Full Scale) or better. The response time is generally fast, often in the millisecond range, making it suitable for dynamic pressure monitoring in hydraulic and pneumatic systems. For precise calibration data, refer to the manufacturer's documentation.
