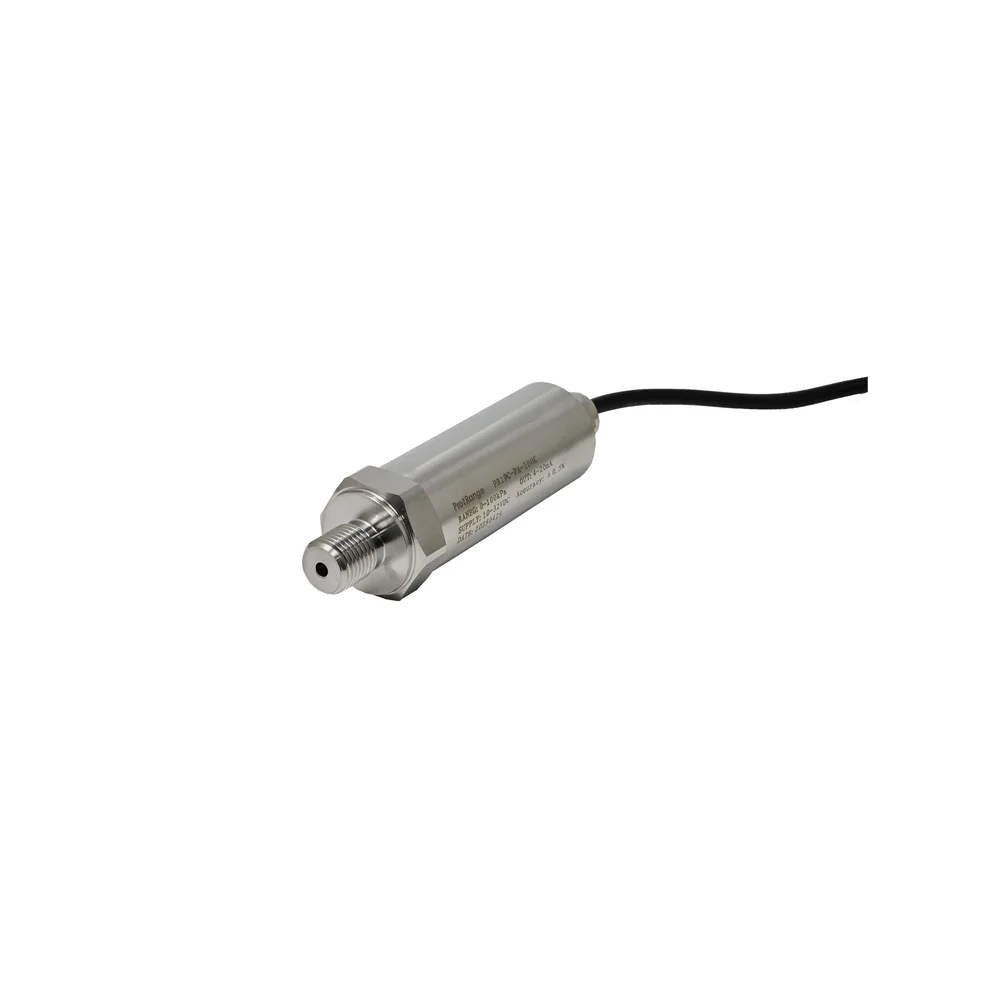

Pro-Range PR19C-PA-100K Pressure Sensor 0-100 kPa - 4-20mA Output, G1/4 Thread, 1m Cable
The Pro-Range PR19C-PA-100K is a 4-20mA output pressure transmitter designed for industrial monitoring of low-pressure pneumatic and hydraulic systems. Featuring a G1/4 thread and a 1-meter cable, it integrates directly with PLCs, DCS, and data acquisition systems requiring a robust, loop-powered signal.
Features
- 0-100 kPa (0-1 bar) absolute pressure measurement range
- Standard 4-20mA two-wire analog output for long-distance, noise-immune transmission
- Industrial-grade construction with G1/4 male thread for secure process connection
- Wide 10-32V DC loop power supply compatibility

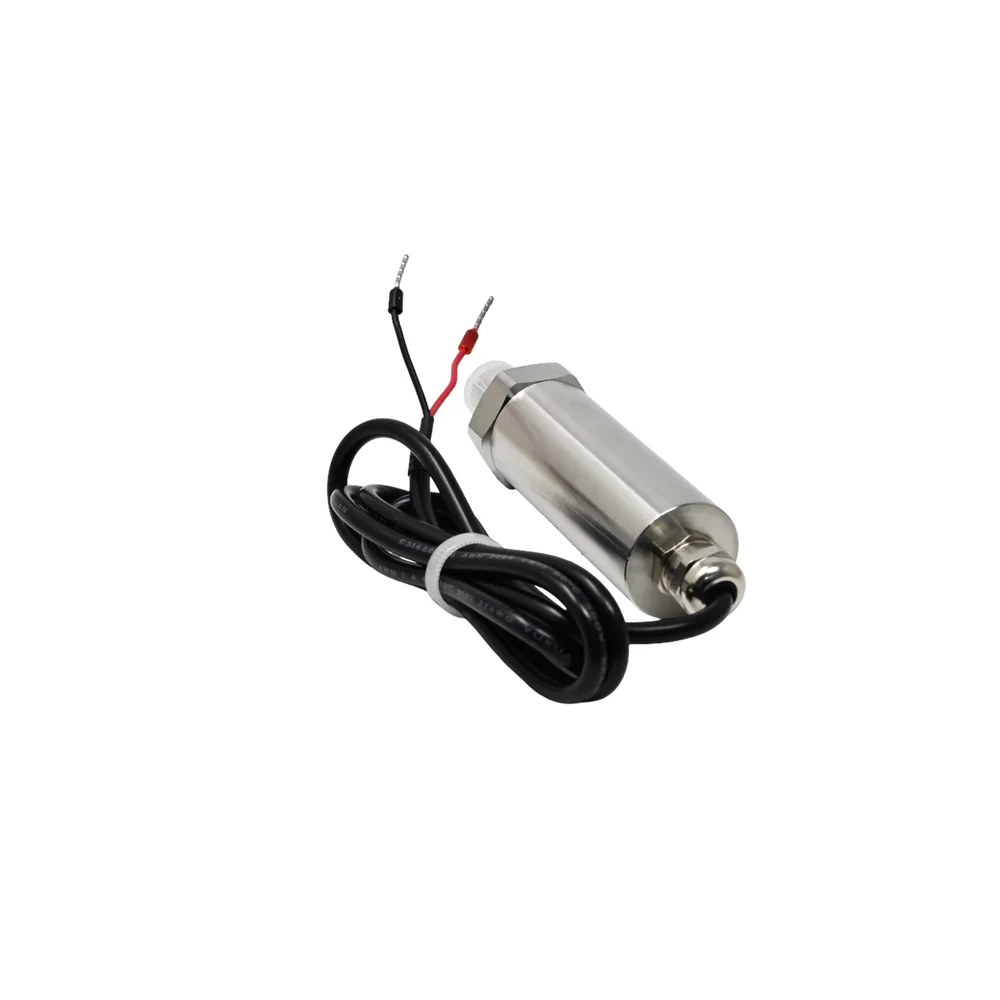

- Includes a 1-meter integral cable for immediate installation
Out of stock
The PR19C-PA-100K pressure sensor operates on the 4-20mA two-wire loop principle, where the output current is linearly proportional to the applied pressure. This design ensures high immunity to electrical noise and signal degradation over extended cable runs, making it suitable for industrial environments. The sensor’s internal sensing element and signal conditioning circuitry are housed in a durable, compact metal body.
Engineered for reliability, this transmitter is built to deliver consistent performance in applications such as HVAC duct pressure, compressor monitoring, and pneumatic control systems. Its wide operating voltage range allows for flexible integration into existing 24V DC industrial power standards.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 9.2 × 3 × 3 cm |
