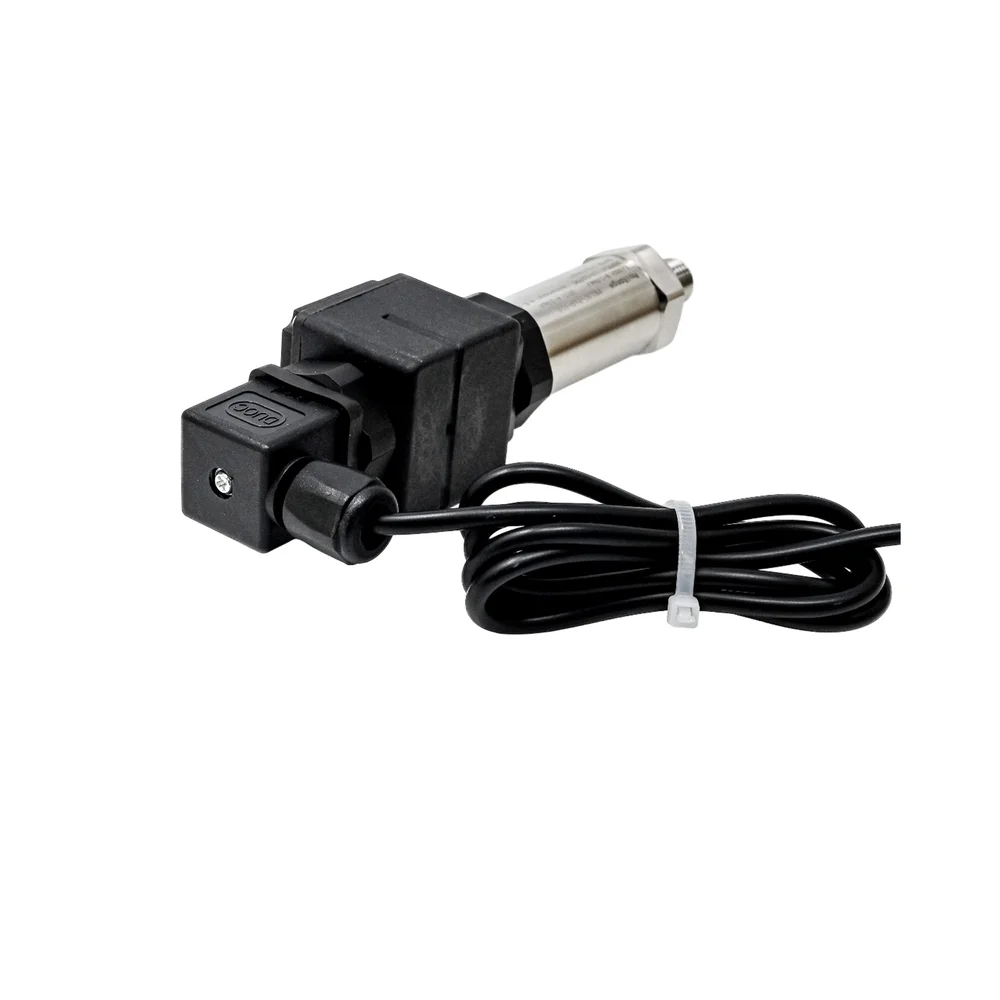

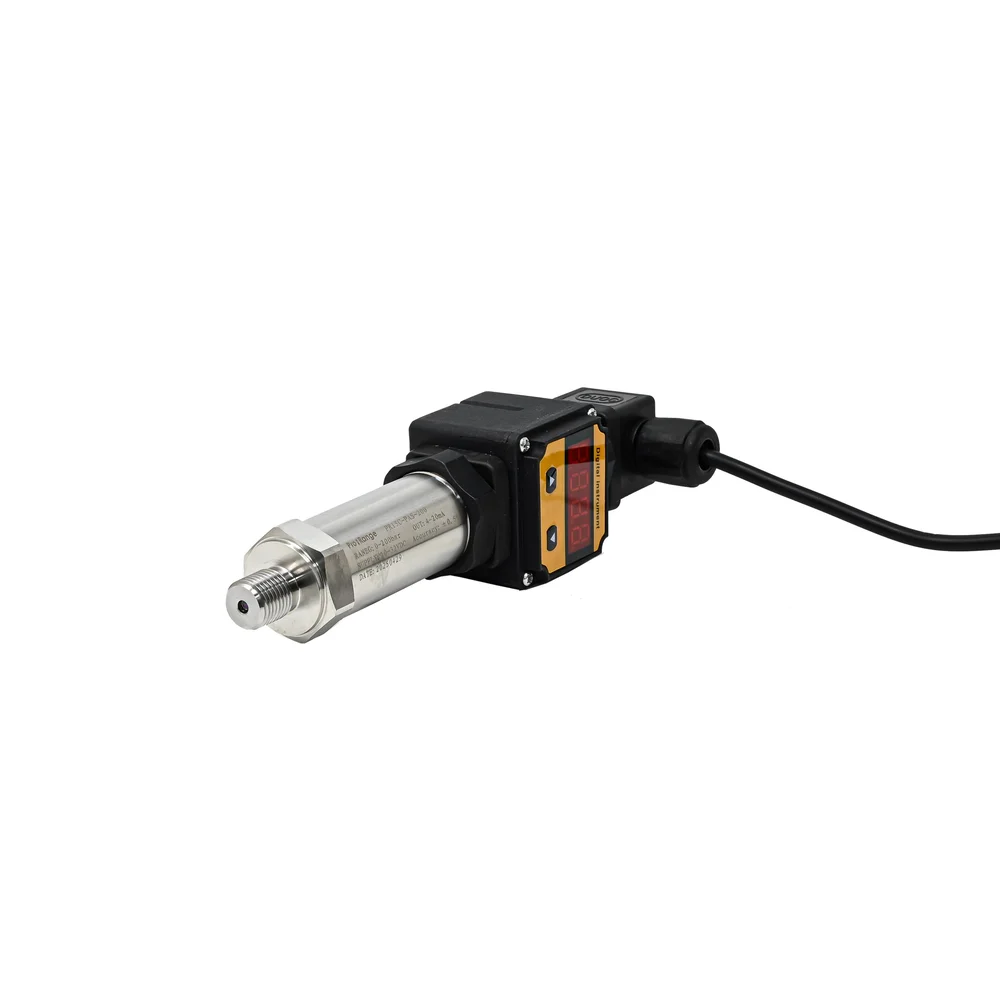

Pro-Range PR15C-PAS-200 Digital Pressure Sensor 0-20 MPa, 4-20mA Output, G1/4 Thread, 1m Cable

The PR15C-PAS-200 operates on a supply voltage range of 10 to 32 Volts DC. This wide range makes it compatible with most standard industrial 12V, 24V, or other DC power supplies commonly used in control panels and PLC systems.

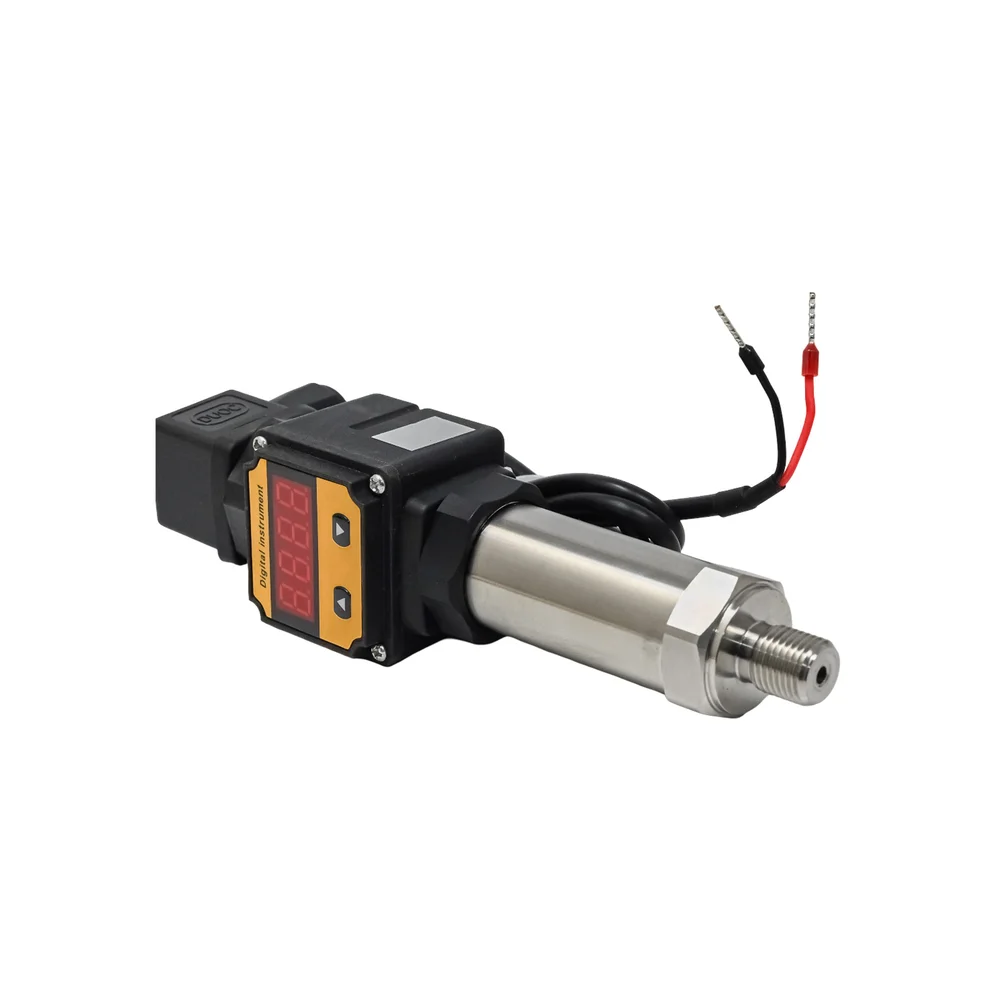

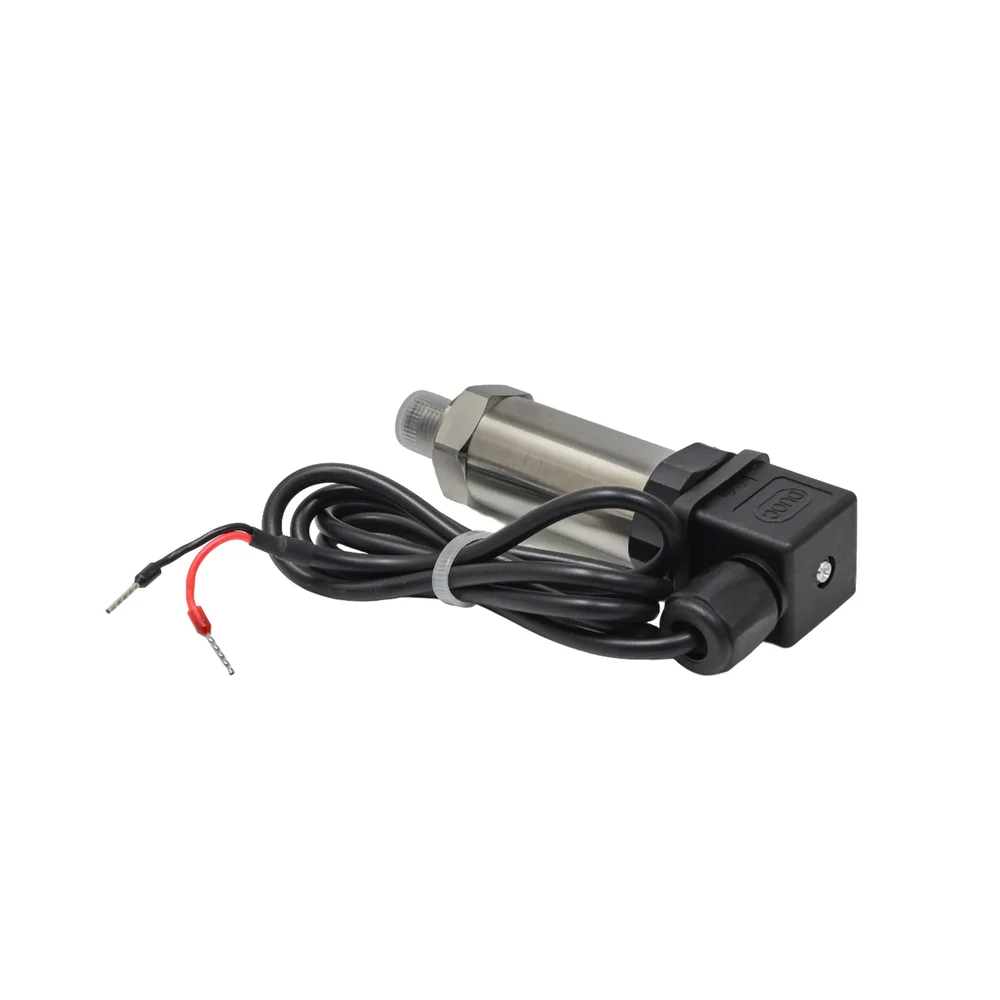

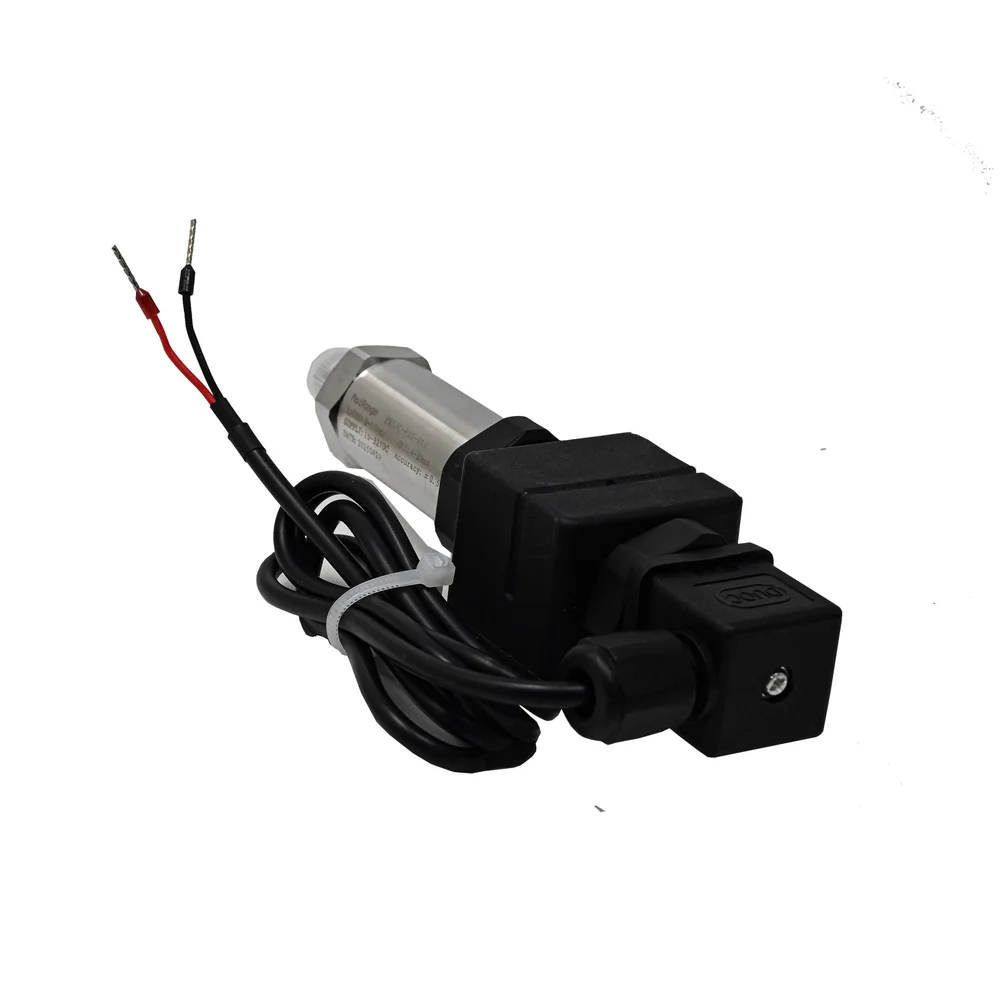

This is a two-wire loop-powered sensor. Connect the positive supply voltage (10-32V DC) to the red wire, and connect the black wire to the positive input of your PLC analog input module or current reader. The return from your reader goes back to the power supply negative, completing the loop. The 4-20mA signal is superimposed on the same two wires providing power.

The standard model features a G1/4 thread and a 0-20 MPa range. The manufacturer, Pro-Range, offers customization options including different thread sizes (e.g., G1/2, M20x1.5) and pressure ranges (e.g., 0-25 MPa). For custom specifications, you would need to contact the supplier or manufacturer directly.

Yes, the sensor is factory-calibrated for its specified 0-20 MPa range, providing a linear 4-20mA output. While the exact accuracy class (e.g., 0.5% FS) is not specified in the provided data, industrial pressure transmitters of this type typically offer high accuracy and stability suitable for process monitoring and control applications.
