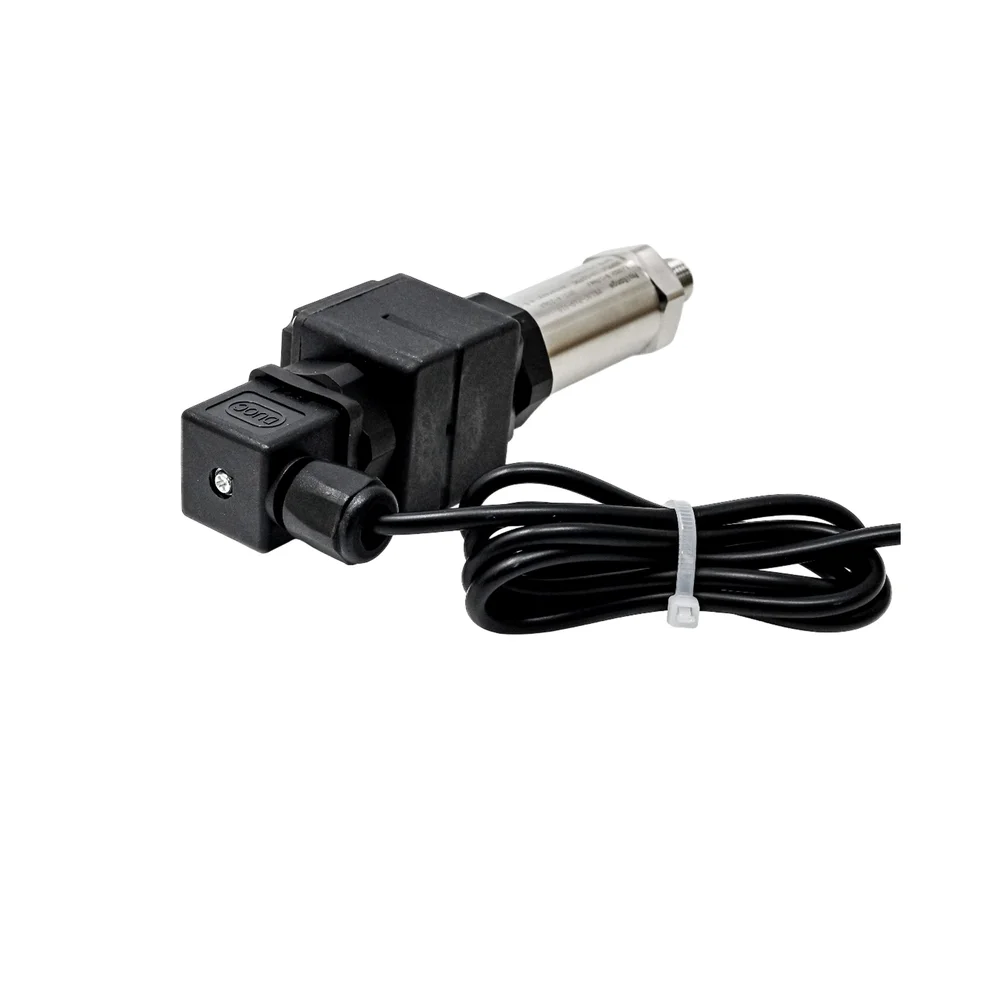

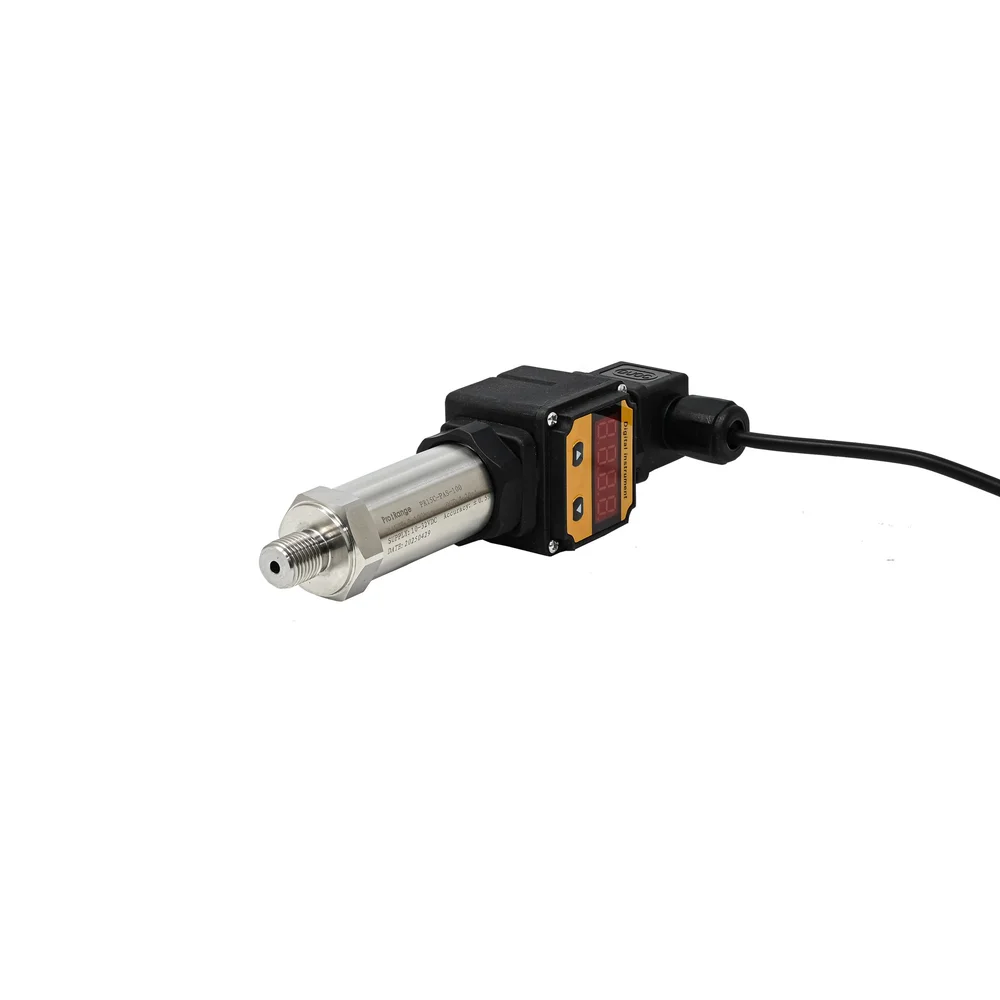

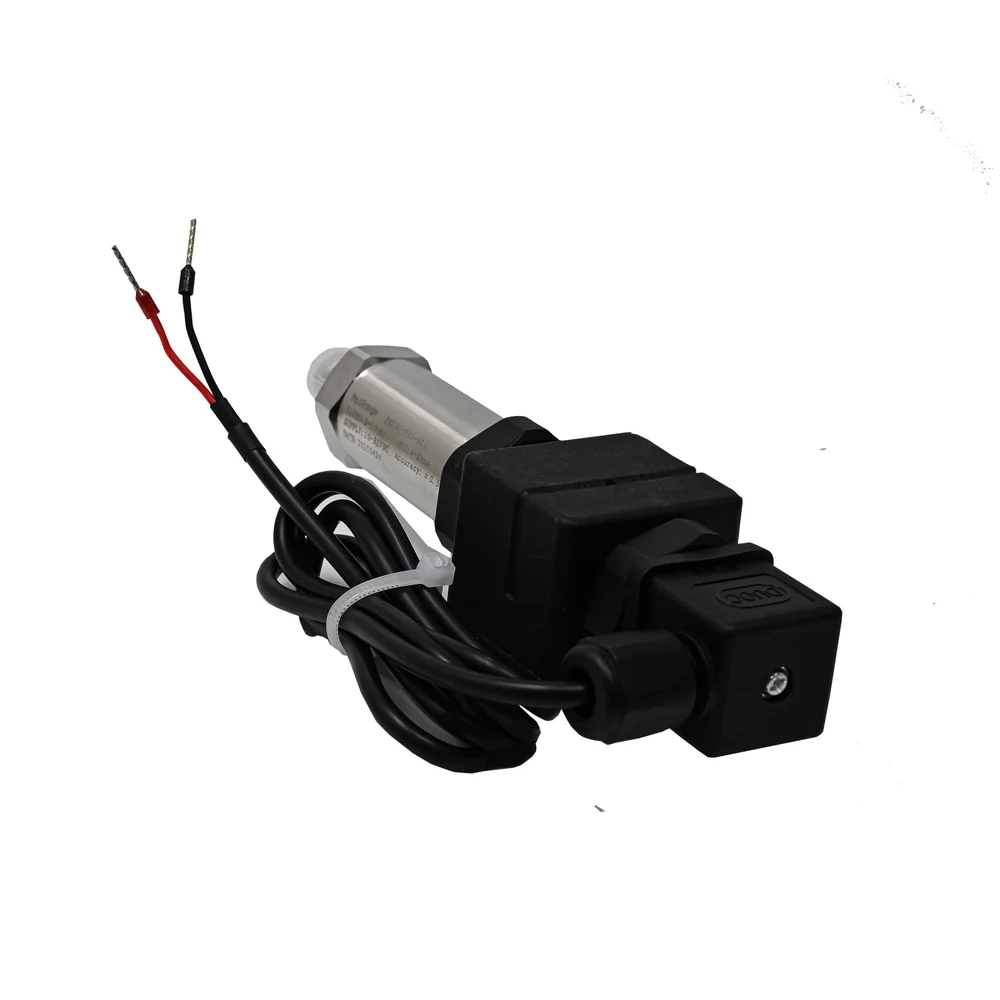

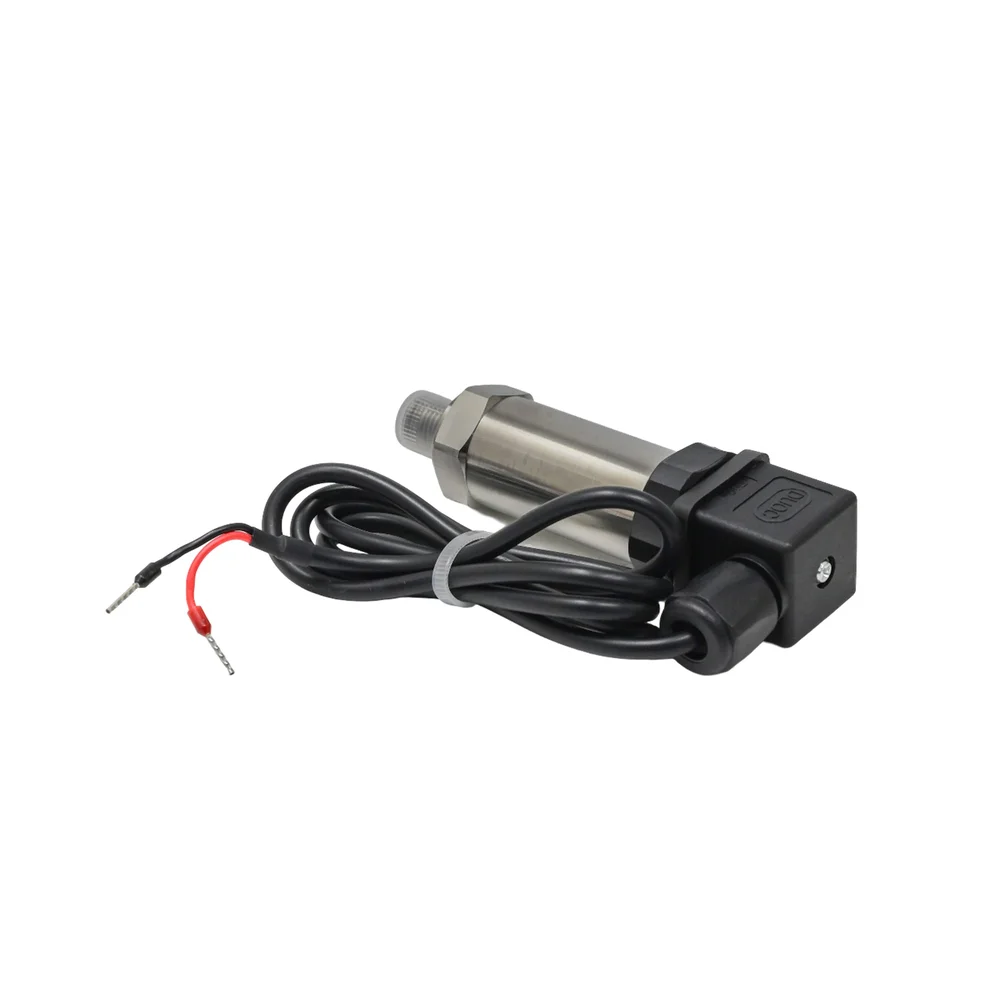

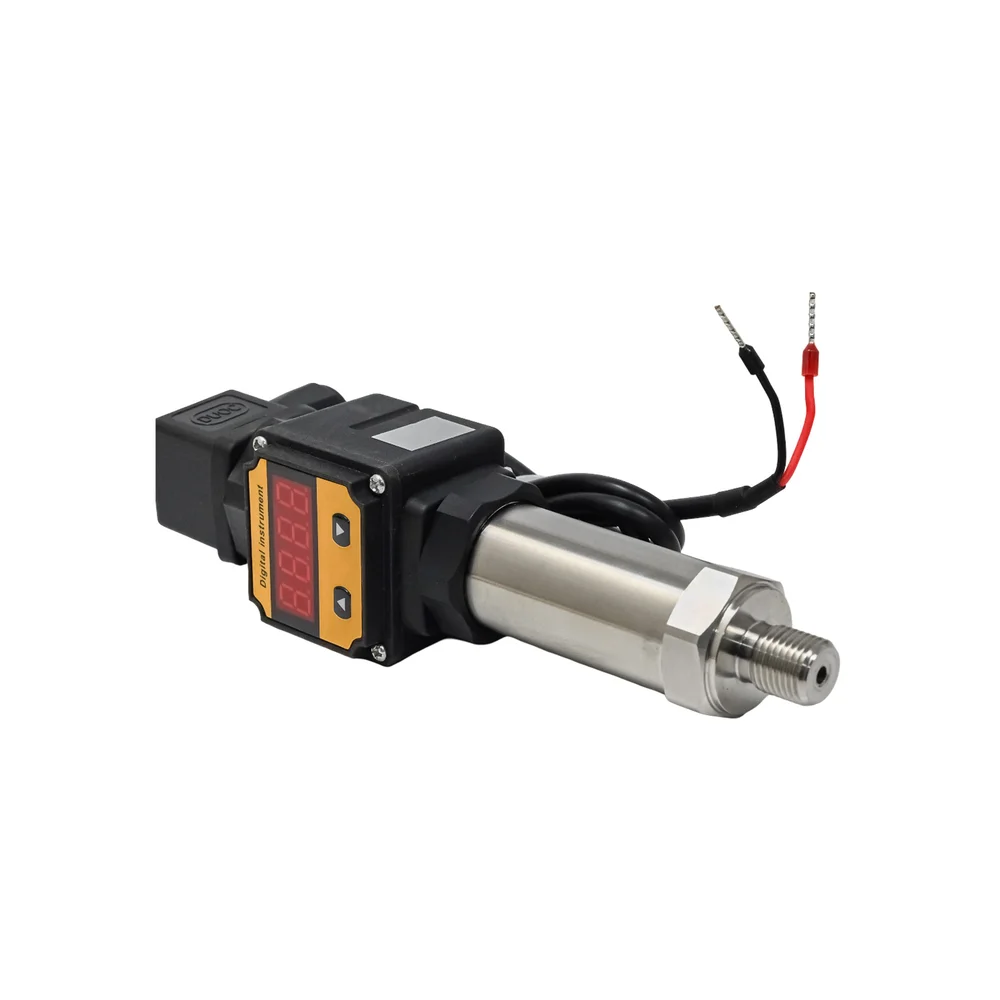

Pro-Range PR15C-PAS-100 Digital Pressure Sensor 0-10 MPa, 4-20mA Output, G1/4 Thread, 1m Cable

This is a two-wire loop-powered sensor. Connect the positive (red) wire from your 10-32V DC power supply to the positive terminal of your PLC analog input or receiver. Connect the sensor's positive wire to that same point. The sensor's negative wire connects to the negative terminal of your receiver, which then returns to the negative of the power supply, completing the loop. The 4-20mA signal is proportional to the measured pressure.

Yes, the PR15C-PAS-100, with its stainless steel wetted parts, is suitable for measuring the pressure of compatible gases and liquids that do not corrode stainless steel (such as air, water, hydraulic oil). Always verify the chemical compatibility of your specific medium with 316 stainless steel before installation.

While the exact accuracy class is detailed in the manufacturer's datasheet, sensors in this category typically offer an accuracy of ±0.5% FS or better. They are designed for industrial use with excellent long-term stability and minimal drift, making them reliable for continuous monitoring applications in process control and automation.

G1/4 is a British Standard Parallel Pipe thread (BSPP). It is not directly compatible with NPT (National Pipe Taper) threads without an adapter. For installation into an NPT port, you will require a BSPP (G) male to NPT female or male adapter to ensure a proper, leak-free seal.
