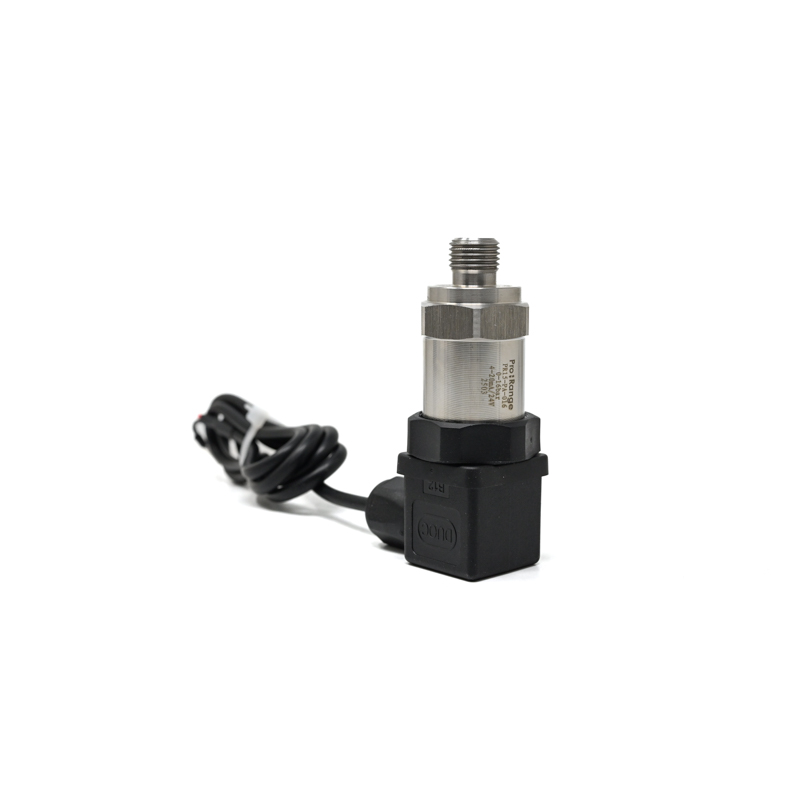

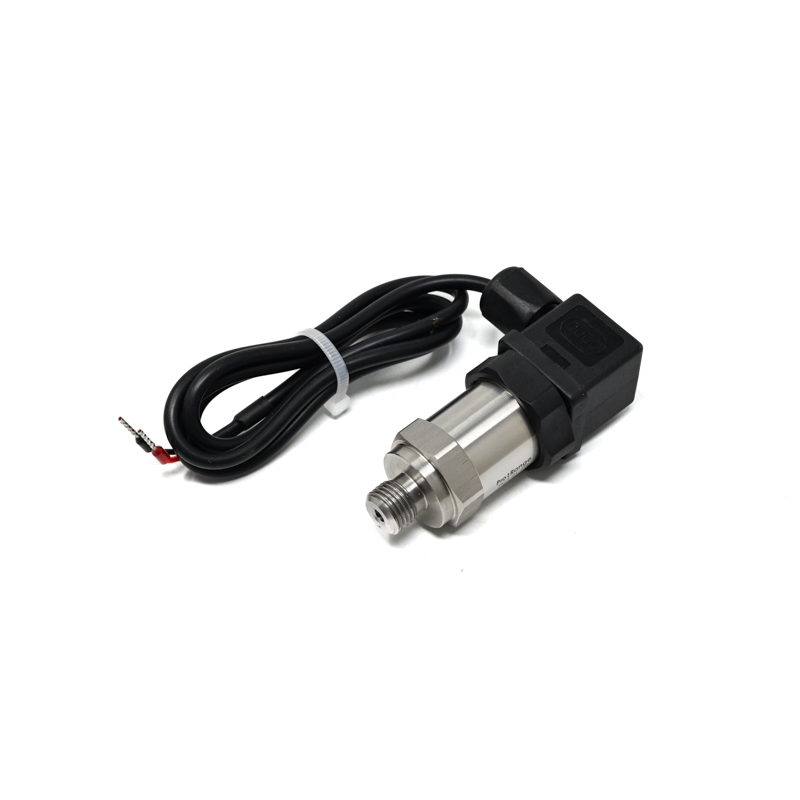

Pro-Range PR12-P210 0-0.1 MPa Pressure Transducer - 0.5-4.5V Output, G1/4" Thread
The Pro-Range PR12-P210 is a low-pressure transducer providing a 0.5–4.5V analog output for direct interfacing with PLCs, data acquisition systems, and microcontrollers (Arduino, Raspberry Pi). Featuring a G1/4″ threaded port, it is engineered for precise measurement of pressures up to 0.1 MPa in industrial fluid and pneumatic systems.
Features
- Measures gauge pressure from 0 to 0.1 MPa (0 to ~14.5 PSI).
- Provides a ratiometric 0.5–4.5V DC analog output signal.
- Standard G1/4″ male threaded process connection for secure installation.
- Compact, robust housing designed for industrial automation environments.
- Operates from a stable 5V DC ±0.2V supply voltage.
Out of stock
The PR12-P210 pressure transducer utilizes a high-stability piezoresistive sensing element to convert applied pressure into a precise linear voltage signal. Its internal signal conditioning circuitry ensures a clean, low-noise output directly proportional to the measured pressure, suitable for integration into control loops and monitoring systems.
Constructed with industrial durability in mind, the sensor’s compact form factor and threaded interface facilitate straightforward mounting in pipelines, manifolds, or test benches. It is designed for reliable performance in applications requiring accurate low-pressure measurement and control.
Additional Information
| Weight | 0.116 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
