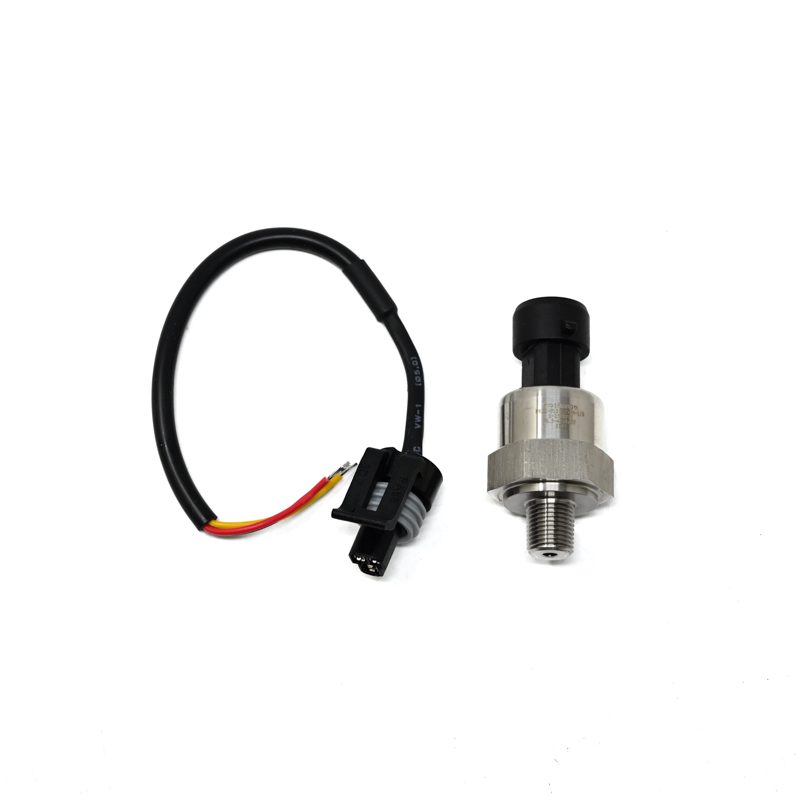

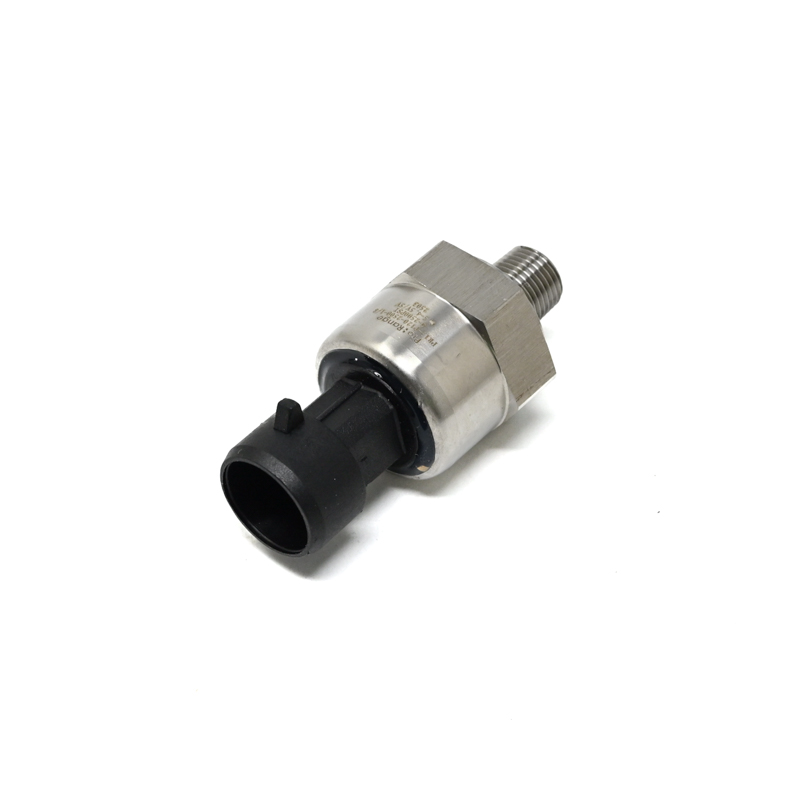

Pro-Range PR12-P120 Pressure Transducer 0-2500 psi, 0.5-4.5V Output, NPT1/8 Thread
The Pro-Range PR12-P120 is a high-pressure transducer designed for industrial monitoring and control systems. It provides a 0.5-4.5V analog output signal from a 5V DC supply, featuring an NPT1/8 threaded port for direct installation into hydraulic and pneumatic systems.
Features
- Measures pressures from 0 to 2500 psi with high accuracy and stability.
- Provides a 0.5 to 4.5V ratiometric analog output signal from a 5V DC supply.
- Features a compact, durable housing with an NPT1/8 male threaded pressure port.
- Ideal for integration into PLCs, data loggers, and microcontroller-based systems (Arduino, Raspberry Pi).
- Designed for demanding applications in hydraulic systems, industrial machinery, and process control.
Out of stock
The PR12-P120 pressure transducer utilizes a robust stainless steel sensing element and internal signal conditioning to deliver precise and stable voltage output proportional to the applied pressure. Its ratiometric output (0.5-4.5V) simplifies interfacing with standard analog-to-digital converters (ADCs) common in industrial PLCs and embedded development platforms like Arduino and Raspberry Pi.
Constructed for harsh environments, the sensor’s compact form factor and NPT1/8 threaded connection facilitate easy installation directly into pipelines, manifolds, or test equipment. It is engineered for reliable performance in monitoring hydraulic pressures, compressor outputs, and other high-pressure industrial processes.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
