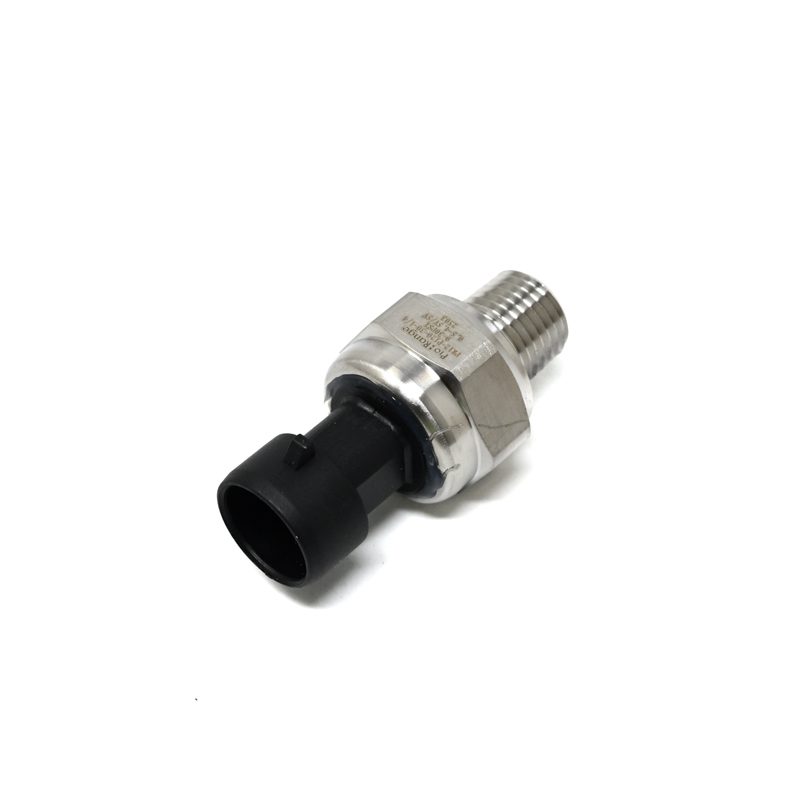

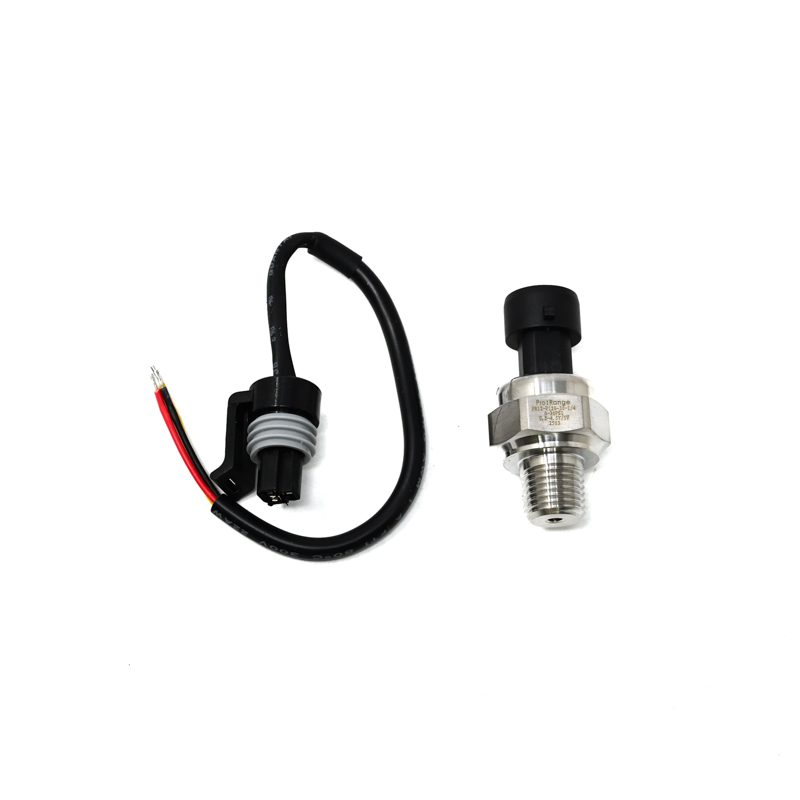

Pro-Range PR12-P120-30-1/4 Pressure Transducer, 0~30psi, 0.5~4.5V Output, NPT1/4 Thread
The Pro-Range PR12-P120-30-1/4 is a low-pressure transducer delivering a ratiometric 0.5–4.5V analog output for a 0–30 psi input range. Featuring an NPT1/4 threaded port, it is designed for direct integration into fluid and pneumatic systems, compatible with 5V DC PLCs, data loggers, and industrial control panels.
Features
- 0–30 psi gauge pressure measurement range with high linearity.
- Provides a ratiometric 0.5–4.5V DC analog output signal (10%–90% of supply).
- Compact, rugged housing with NPT1/4 male thread for direct pipe or manifold mounting.
- 5V DC ±0.25V rated supply voltage for compatibility with standard industrial logic.
- Stable performance across a wide operating temperature range for HVAC and automation.
Out of stock
The PR12-P120 series pressure transducer utilizes a high-stability piezoresistive sensing element to convert applied pressure into a precise analog voltage signal. The 0.5–4.5V output is ratiometric to the 5V supply, ensuring consistent accuracy even with minor supply voltage fluctuations. The stainless steel sensing diaphragm and NPT1/4 threaded port provide robust, leak-resistant integration into liquid or gas pressure lines.
Engineered for reliability in demanding environments, this transducer features temperature-compensated circuitry to minimize drift. Its compact form factor and standard electrical interface make it suitable for embedded system monitoring, pump control, and filter status indication where low-pressure accuracy is critical.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
