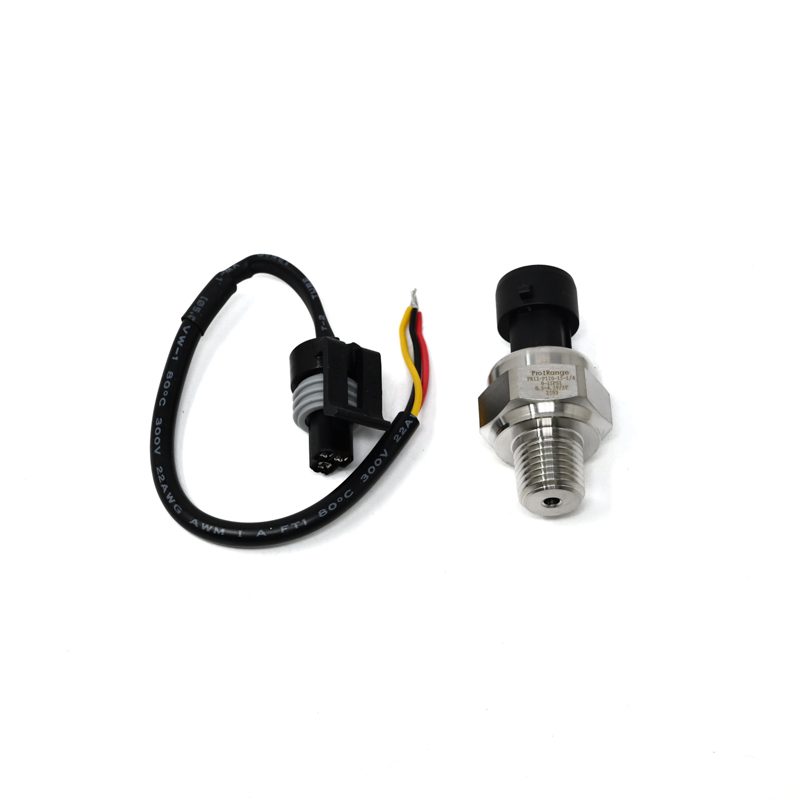

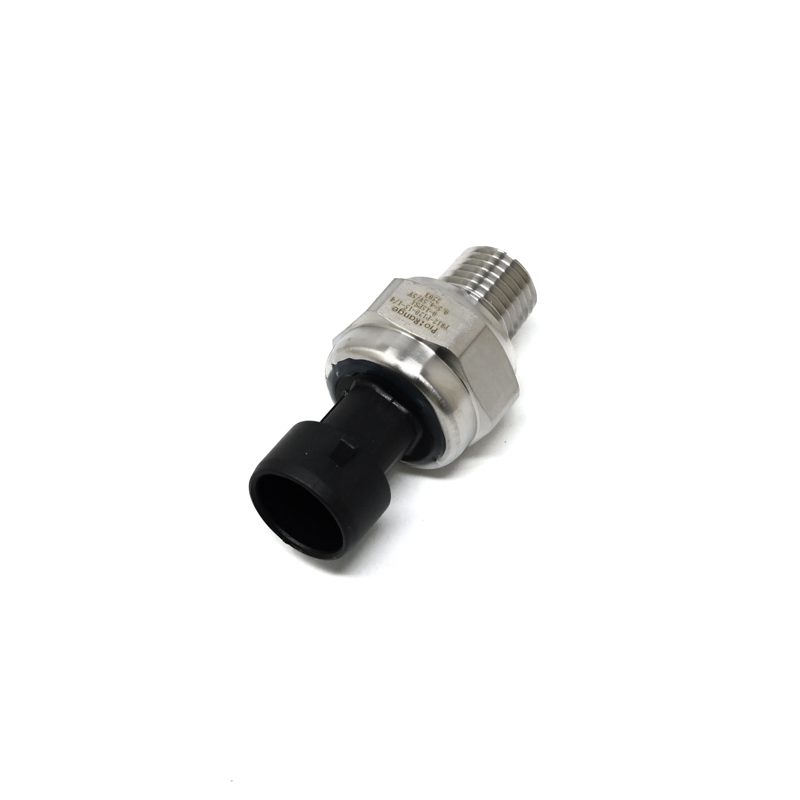

Pro-Range PR12-P120-15-1/4 Pressure Transducer, 0-15 psi, 0.5-4.5V Output, NPT1/4 Thread
The Pro-Range PR12-P120-15-1/4 is a compact pressure transducer delivering a 0.5–4.5V analog output signal for a 0–15 psi measurement range. Featuring an NPT1/4 threaded port, it is designed for direct integration into industrial fluid systems, HVAC controls, and PLC-based monitoring applications requiring reliable low-pressure sensing.
Features
- 0–15 psi low-pressure sensing range with high linearity
- 0.5–4.5V ratiometric analog voltage output for direct ADC interfacing
- NPT1/4 male thread for secure, leak-resistant installation
- Compact, robust housing suitable for confined industrial spaces
- Ideal for HVAC, pump control, hydraulic monitoring, and fluid handling systems
Out of stock
The Pro-Range PR12-P120 series pressure transducer employs a precision stainless steel sensing element and integrated signal conditioning circuitry to provide a stable, linear voltage output proportional to the applied pressure. The 0.5–4.5V output span corresponds directly to the 0–15 psi input range, making it compatible with most data acquisition systems, PLC analog input modules, and microcontroller ADCs.
Constructed with industrial-grade materials, the transducer features an NPT1/4 threaded pressure port for direct mounting into pipelines, manifolds, or test fixtures. Its compact form factor and reliable performance make it suitable for continuous monitoring in environments such as building automation, fluid power systems, and process control where accurate low-pressure measurement is critical.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
