Pro-Range GML668B Tension Compression Force Sensor 100N - ±0.1% F.S Output 2.0±10% mV/V
The Pro-Range GML668B is a high-precision 100N tension/compression force sensor utilizing metal foil strain gauge technology, delivering a 2.0 mV/V output with ±0.1% F.S. accuracy. It is designed for integration into industrial automation, robotics, and test systems with a 5-15 VDC supply voltage.
Features
- High-precision 100N load cell with ±0.1% F.S. comprehensive error for accurate force measurement.
- Compact stainless steel design suitable for tension and compression applications in confined spaces.
- Wide operating temperature range from -20°C to +80°C with compensation from -10°C to +60°C.
- IP66 ingress protection rating ensures reliable performance in dusty or wet industrial environments.
- Standard 2.0 mV/V ±10% output signal compatible with common instrumentation amplifiers and data acquisition systems.
Out of stock

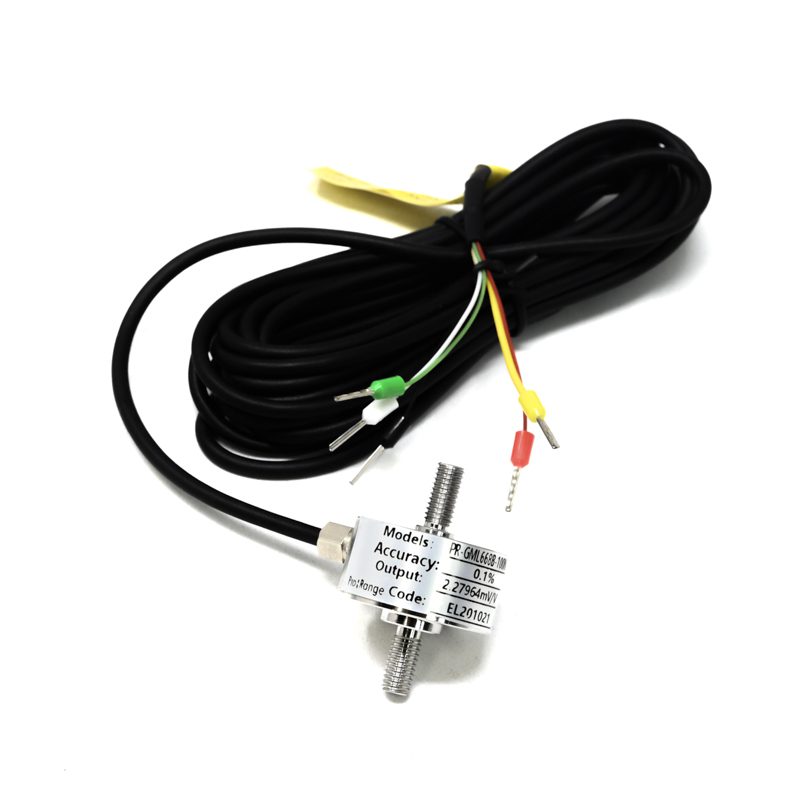

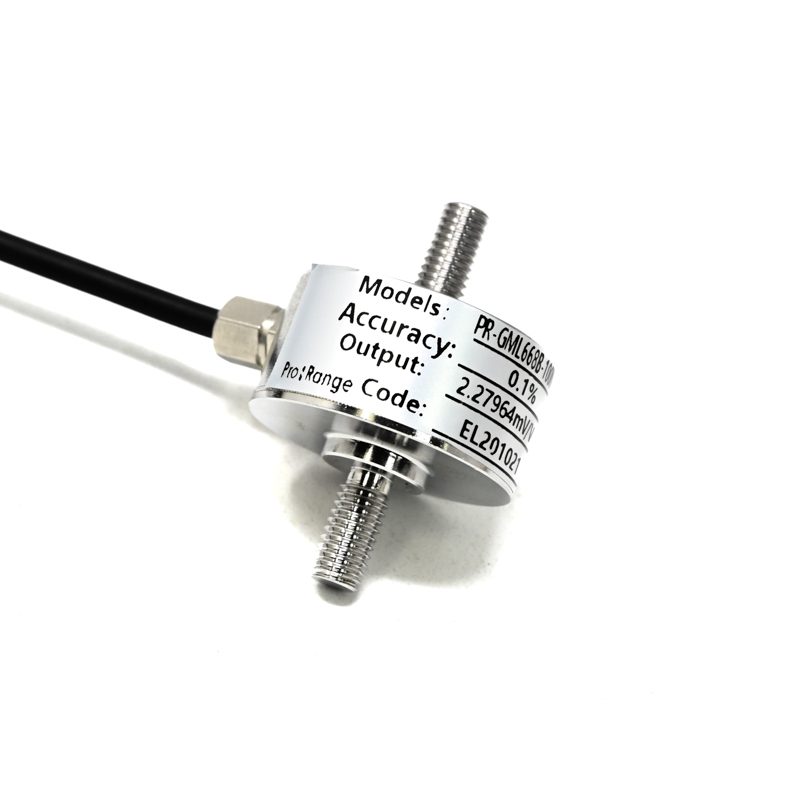

The Pro-Range GML668B is a miniature load cell engineered for precise force measurement in both tension and compression modes. It employs a bonded metal foil strain gauge technology mounted on a stainless steel sensing element, providing excellent linearity, hysteresis, and repeatability characteristics. The sensor’s compact form factor allows for integration into space-constrained applications such as robotic end-effectors, automated assembly fixtures, and medical testing equipment.
Signal conditioning is achieved via a standard Wheatstone bridge configuration, requiring a 5-15 VDC excitation voltage to produce a proportional millivolt-per-volt output. The unit features a compensated operating temperature range and is housed in a robust, IP66-rated stainless steel enclosure, making it suitable for demanding industrial environments where dust and water spray resistance are required.
Additional Information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 16 × 10 × 4 cm |
