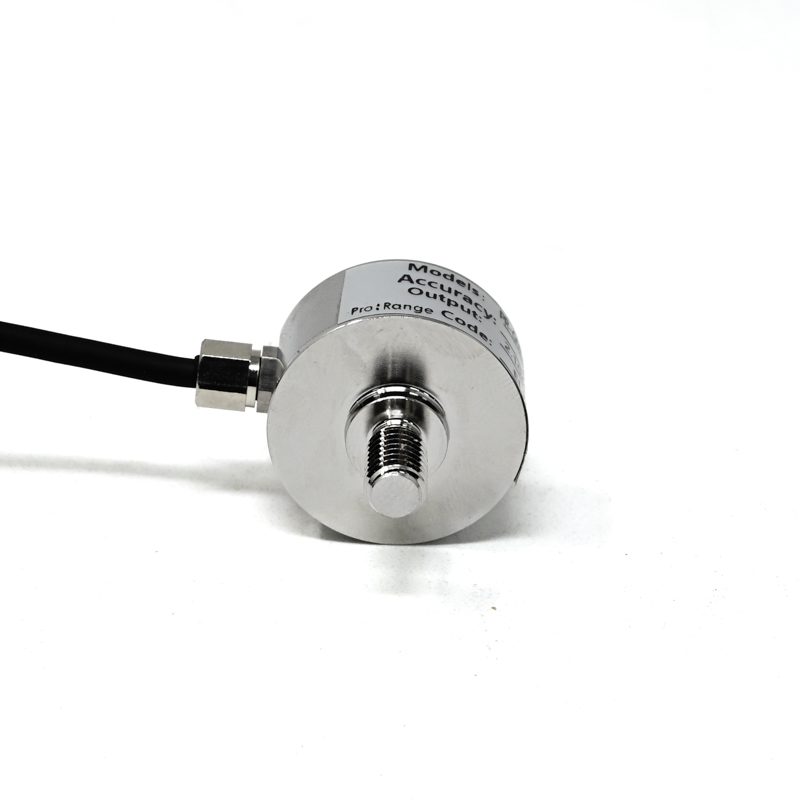

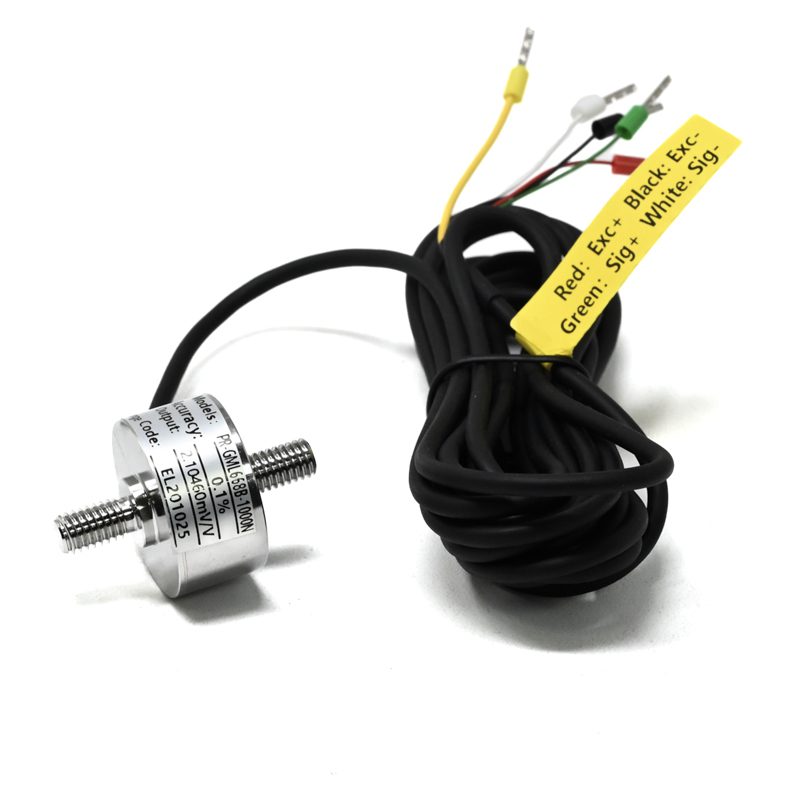

Pro-Range GML668B Tension Compression Force Sensor 1000N - ±0.1% F.S Output 2.0±10% mV/V
The Pro-Range GML668B is a high-precision miniature load cell designed for 1000N tension and compression force measurement, featuring a 2.0 mV/V output and ±0.1% F.S. accuracy. Its compact stainless steel housing and IP66 rating make it suitable for integration into automated test stands, robotics, and industrial control systems requiring reliable force feedback.
Features
- High-precision 1000N tension/compression load cell with ±0.1% F.S. comprehensive error
- Compact stainless steel design ideal for force measurement in confined spaces
- Rated output of 2.0 mV/V (±10%) with a wide 5-15 VDC excitation voltage range
- IP66 ingress protection ensures reliable performance in demanding industrial environments
- Operates from -20°C to +80°C with temperature compensation from -10°C to +60°C
Out of stock
The Pro-Range GML668B utilizes advanced metal foil strain gauge technology bonded to a stainless steel sensing element, providing exceptional linearity and hysteresis performance for precise force measurement. Its miniature form factor is engineered for integration into space-constrained applications without sacrificing structural integrity or measurement accuracy.
This sensor delivers a stable millivolt-per-volt (mV/V) analog output proportional to the applied force, compatible with standard instrumentation amplifiers and data acquisition systems. The IP66-rated housing protects the internal strain gauge bridge from dust and water jets, ensuring long-term reliability in automated assembly, medical device testing, and robotic end-effector force control scenarios.
Additional Information
| Weight | 0.109 kg |
|---|---|
| Dimensions | 16 × 10 × 4 cm |
