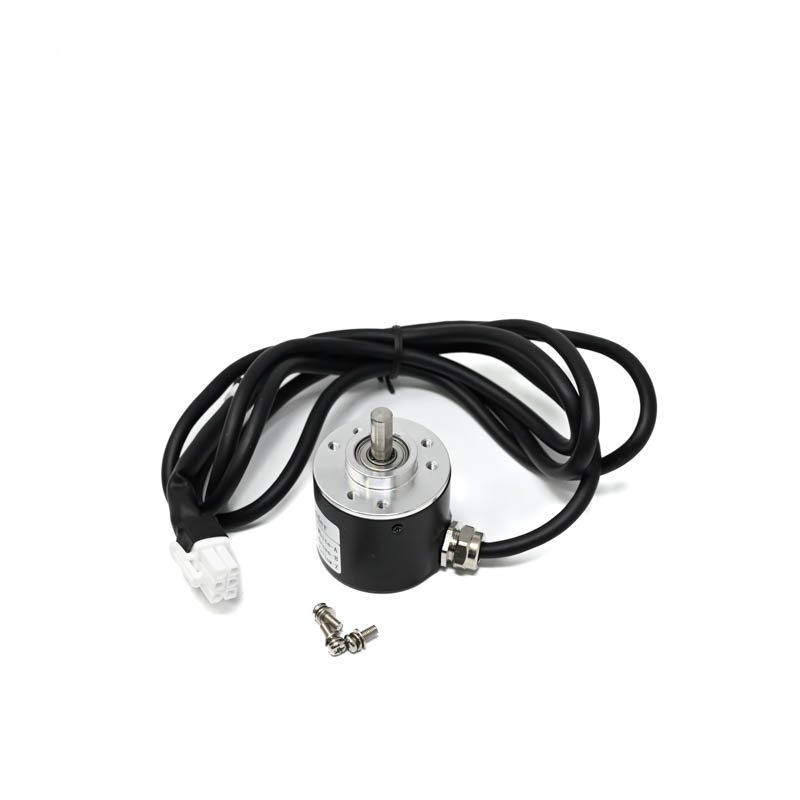

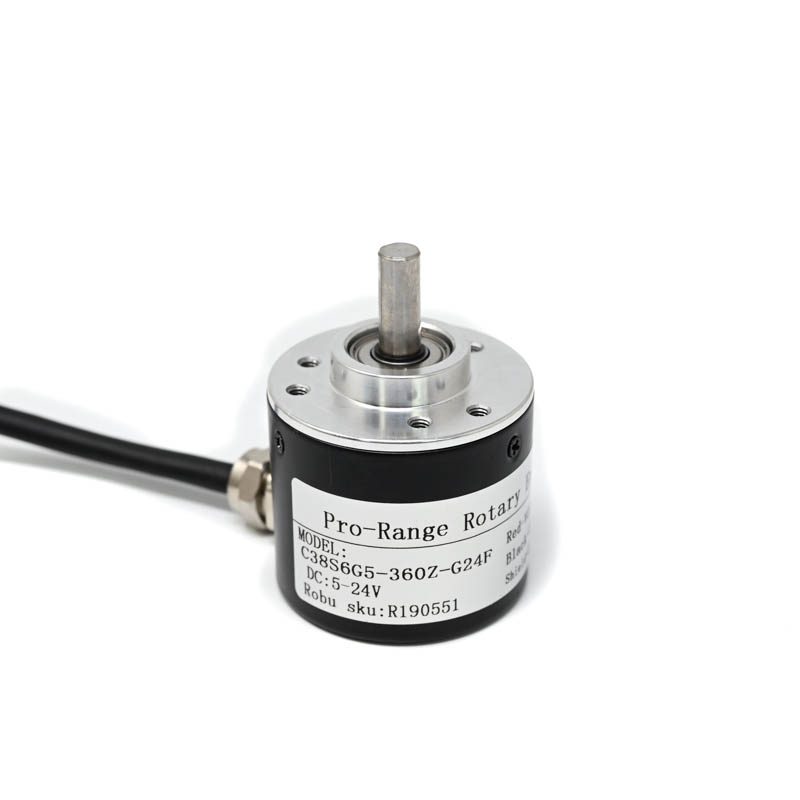

Pro-Range E38S6G5-360Z-G24F-S Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 360 PPR
The Pro-Range E38S6G5-360Z-G24F-S is a 38mm industrial-grade rotary incremental encoder providing 360 PPR resolution via photoelectric sensing. It features ABZ quadrature output channels for precise direction and position feedback, compatible with PLCs, motor drives, and industrial automation systems operating on a 5-24V DC supply.
Features
- 360 Pulses Per Revolution (PPR) for high-resolution incremental position feedback.
- Industrial-grade photoelectric sensing ensures reliable, non-contact operation.
- ABZ output channels provide quadrature signals (A, B) and an index pulse (Z) for absolute reference.
- Wide operating voltage range of 5-24V DC for flexible system integration.
- Compact 38mm diameter housing designed for robust performance in industrial environments.
Out of stock
The Pro-Range E38S6G5-360Z-G24F-S rotary incremental encoder utilizes a photoelectric sensing principle, where a light source and photodetector read a patterned disc to generate precise digital pulses. This non-contact method ensures long-term reliability and minimal mechanical wear. The encoder outputs standard ABZ signals: channels A and B provide quadrature waveforms for determining rotational direction and incremental position, while the Z channel delivers a single index pulse per revolution for establishing an absolute reference point.
Built for industrial durability, this 38mm encoder operates across a wide 5-24V DC voltage range, making it compatible with various PLCs, motor controllers, and data acquisition systems. Its construction is designed to withstand typical industrial environmental factors, providing stable position feedback for servo motors, conveyor systems, and rotary indexing applications.
Additional Information
| Weight | 0.146 kg |
|---|---|
| Dimensions | 9 × 9 × 6 cm |
