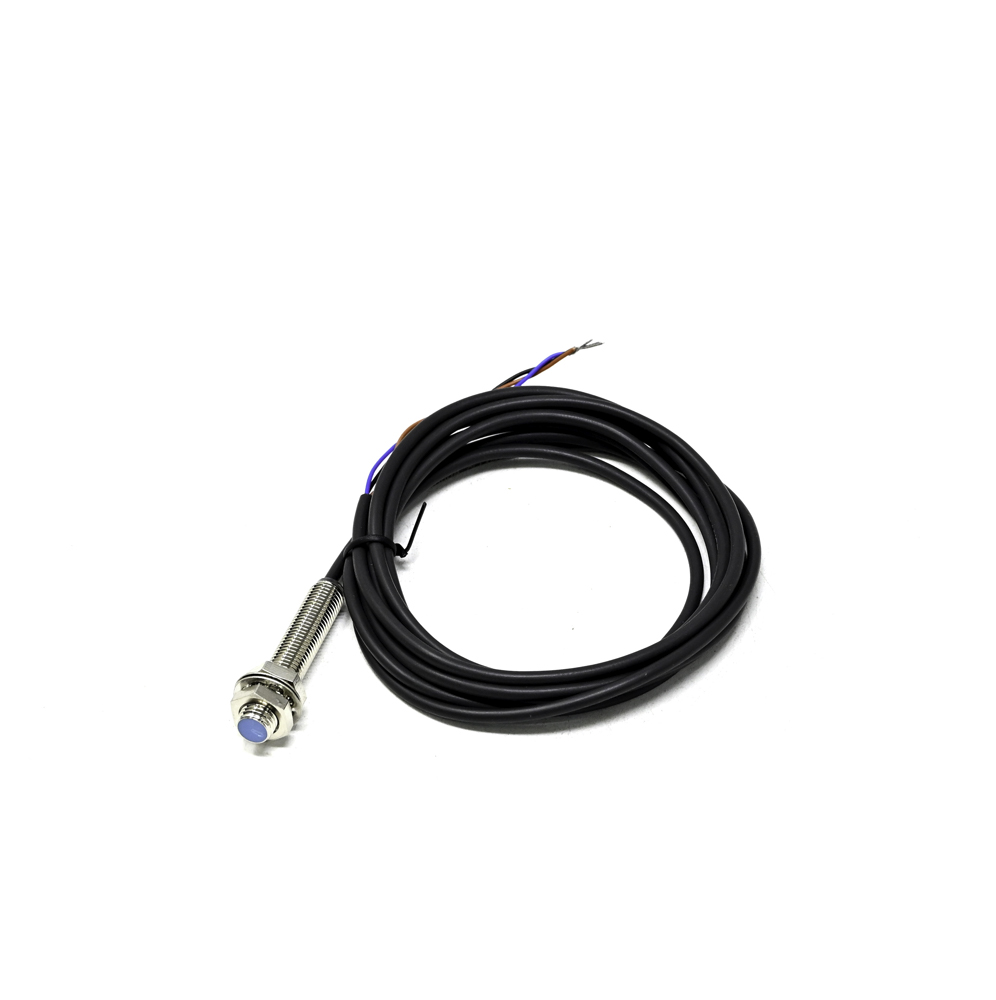

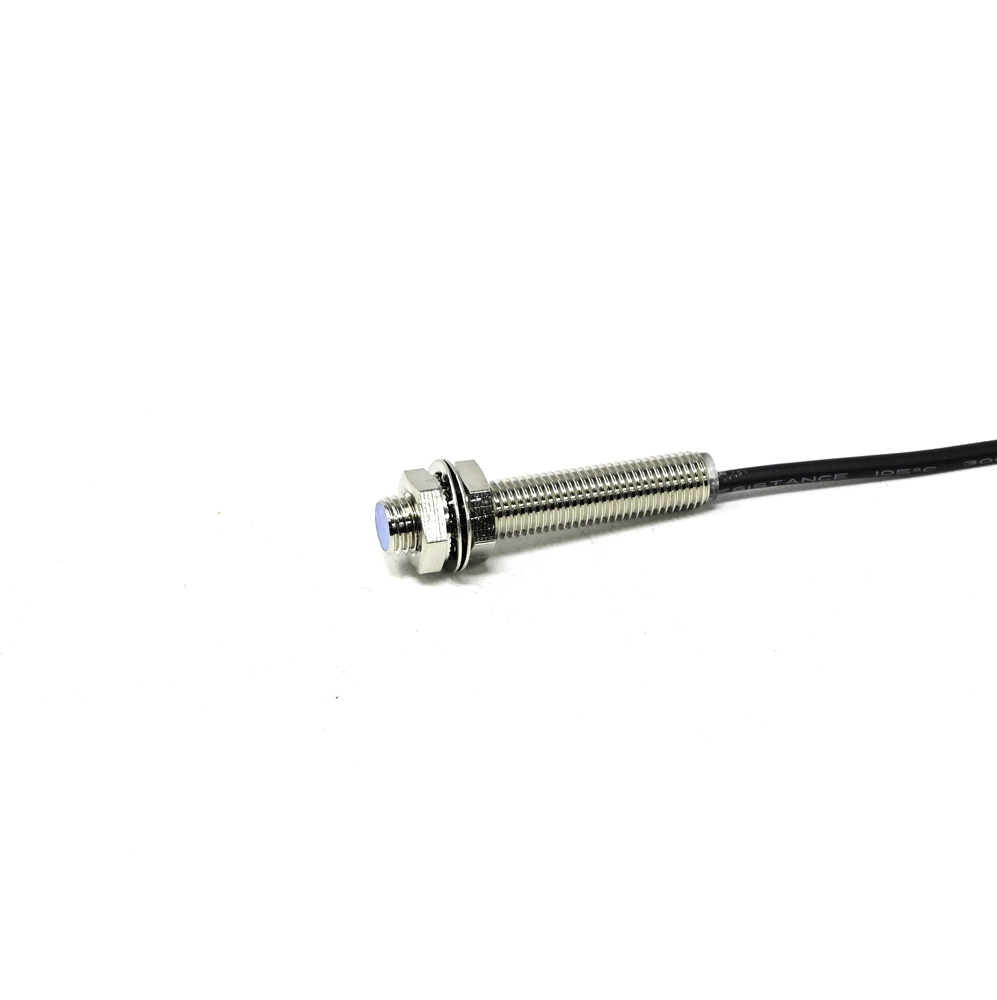

Pro-Range CLJ-A8M-1.5ANA NPN M8 Inductive Proximity Sensor - 1.5mm Detection Distance
The Pro-Range CLJ-A8M-1.5ANA is an NPN output, normally-open (NO) inductive proximity sensor with a 1.5mm detection range and an M8 threaded housing. Designed for industrial automation, it provides reliable, non-contact detection of ferrous and non-ferrous metal targets, compatible with PLCs and standard 10-30V DC control systems.
Features
- NPN Normally-Open (NO) Output for standard sinking logic interfaces.
- Precise 1.5mm detection distance for close-range metal sensing.
- Compact M8 threaded barrel housing for easy panel mounting.
- Operates on a wide 10-30V DC supply voltage range.
- Features built-in polarity and short-circuit protection for robust operation.
Out of stock
The CLJ-A8M-1.5ANA is a shielded inductive proximity sensor that generates an electromagnetic field to detect the approach of metallic objects without physical contact. Its core sensing principle relies on eddy current losses induced in the target, which dampens the oscillation within the sensor’s coil, triggering a solid-state NPN switching output. The sensor is shielded, allowing for side-by-side mounting without mutual interference.
Constructed with a nickel-plated brass housing, this sensor is built for durability in industrial environments. It offers a fast switching frequency and high repeat accuracy, making it suitable for high-speed counting, position verification, and end-of-travel limit detection in automated machinery and assembly lines.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 5 × 10 cm |
