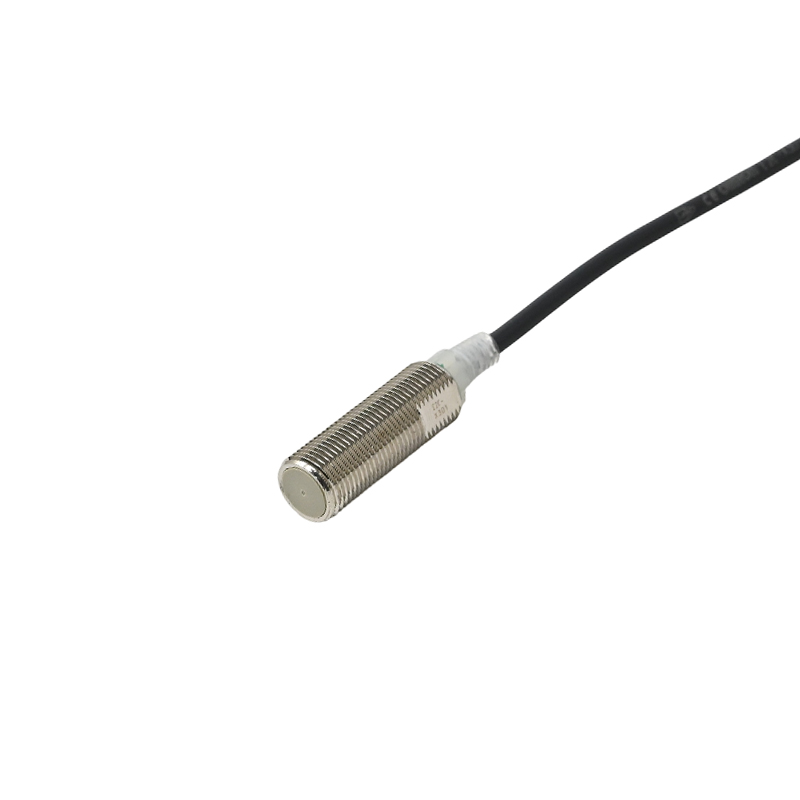

Omron E2E-X3D1-U 2M Inductive Proximity Sensor, NPN NO, 10-30VDC, M12 Shielded, IP67, 2m Cable, 3mm Detection

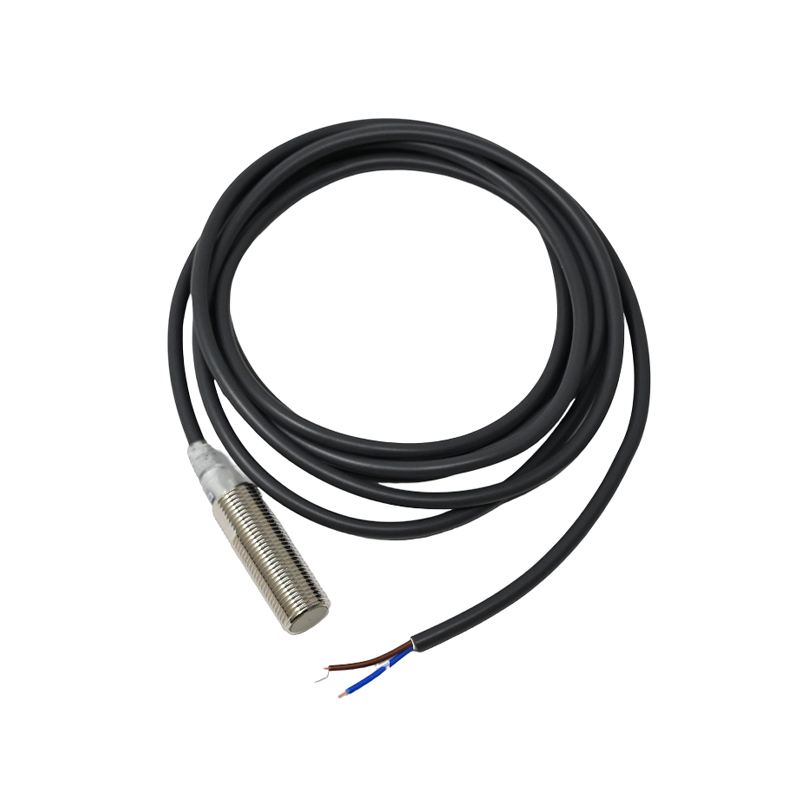

Omron E2E-X3D1-U 2M Inductive Proximity Sensor, NPN NO, 10-30VDC, M12 Shielded, IP67, 2m Cable, 3mm Detection - Image 2
SKU: SENS-1220
📋 GST Invoice Available

Omron E2E-X3D1-U 2M Inductive Proximity Sensor, NPN NO, 10-30VDC, M12 Shielded, IP67, 2m Cable, 3mm Detection

₹2,119.00 (Inclusive of all taxes)
Out of Stock

The Omron E2E-X3D1-U 2M is a shielded inductive proximity sensor with a 3mm detection range, designed for reliable ferrous metal target detection in industrial automation. Featuring an NPN normally open (NO) output, it operates on a 10-30VDC supply and is protected by an IP67-rated stainless steel housing with a 2-meter PUR cable for harsh environments.

Features

  • Shielded M12 inductive sensor with a precise 3mm (±10%) detection range for ferrous metals.
  • NPN normally open (NO) output compatible with PLCs and standard industrial control systems (10-30VDC).
  • Robust IP67-rated stainless steel housing ensures durability against dust, water, and oils.
  • Features a 2-meter oil-resistant PUR cable and includes Smartclick connectors for quick installation.
  • Integrated self-diagnostic output for failure detection and stable operation from -40°C to 85°C.

Out of stock

Description

The Omron E2E-X3D1-U 2M operates on the electromagnetic induction principle, generating an oscillating magnetic field from its shielded M12 sensing face. When a ferrous metal target enters this field, eddy currents are induced, damping the oscillation and triggering the internal NPN open-collector switch to close. This provides a reliable digital signal for position feedback.

Engineered for industrial durability, its stainless steel body and IP67 rating protect against washdowns, coolants, and particulate ingress. The sensor incorporates protection circuits against short-circuits and reverse polarity, while the OrangeRX head aids visual identification. Its wide operating voltage range and low leakage current ensure compatibility with diverse 12-24VDC control panels and contribute to extended service life with minimal maintenance.

Key Features

  • Precision inductive sensing with a 3mm nominal range and ±10% tolerance for consistent detection.
  • NPN normally open (NO) transistor output with a 3-100mA load current capacity for direct PLC input.
  • IP67-rated stainless steel housing provides superior resistance to water, oil, and industrial contaminants.
  • Integrated self-diagnostic function monitors internal health and outputs instability or failure signals.
  • Oil-resistant, flexible PUR cable (2m length) withstands harsh chemical environments and extreme temperatures.
  • Smartclick connector system enables tool-free, secure wiring connections, reducing installation time.
  • Wide operating temperature range from -40°C to 85°C ensures performance in freezing or hot conditions.
  • High switching frequency of 1.5 kHz supports high-speed automation and packaging applications.

Applications

  • Position verification and part presence detection on CNC machine tools and automated assembly lines.
  • End-of-travel and limit sensing for robotic arms and linear actuators in manufacturing cells.
  • Metal part counting and sorting in conveyor systems within packaging and material handling.
  • Machine guarding and safety interlock systems for detecting unauthorized access to hazardous zones.
  • Liquid level detection in tanks using a float with an integrated ferrous metal target.

Technical Specifications

Manufacturer Part NumberE2E-X3D1-U 2M
BrandOmron
Sensor TypeInductive Proximity
Detection ObjectFerrous Metals
Detection Distance3 mm ±10%
Setting Distance0 to 2.4 mm
Output TypeNPN, Normally Open (NO)
Supply Voltage10 to 30 VDC
Load Current3 to 100 mA
Switching Frequency1.5 kHz
Housing MaterialStainless Steel
ConnectorM12, Shielded
Cable2 m, PUR Oil-Resistant
IP RatingIP67
Operating Temperature-40°C to 85°C
Length50 mm
Width15 mm
Weight53 g

Frequently Asked Questions

What is the operating voltage range for the Omron E2E-X3D1-U 2M sensor?

The sensor operates on a DC supply voltage from 10 to 30 volts. It is designed for standard industrial 12-24VDC control systems. Ensure your power source is within this range and properly regulated for stable operation.

What type of output does this proximity sensor provide, and how do I wire it?

This sensor provides a 3-wire NPN normally open (NO) output. Connect the brown wire to your positive DC supply (10-30VDC), the blue wire to DC common (0V), and the black wire is the switched output. When a target is detected, the black wire switches to connect to the blue wire (common).

Can this sensor detect non-ferrous metals like aluminum or copper?

No, the E2E-X3D1-U is a standard inductive sensor specifically designed for detecting ferrous metals (iron, steel). For non-ferrous metals, you would require a factor-1 (all-metal) inductive sensor, which has a different operating principle and sensing distance.

What does the IP67 rating mean for installation?

The IP67 rating certifies the sensor is dust-tight (6) and can withstand temporary immersion in water up to 1 meter deep for 30 minutes (7). This makes it suitable for washdown areas, outdoor use, and environments with oil or coolant splashes, but the cable gland entry must also be properly sealed.

What is included in the package for mounting the sensor?

The package includes the sensor with a 2-meter integrated cable, one tooth lock washer, and two locknuts. These are used to secure the sensor into a pre-tapped M12 mounting hole, with the lockwasher preventing vibration-induced loosening.

Package Includes

  • 1 x Omron E2E-X3D1-U 2M Inductive Proximity Sensor
  • 1 x Tooth Lock Washer
  • 2 x Locknuts

Additional Information

Weight 0.053 kg
Dimensions 5 × 1.5 cm
