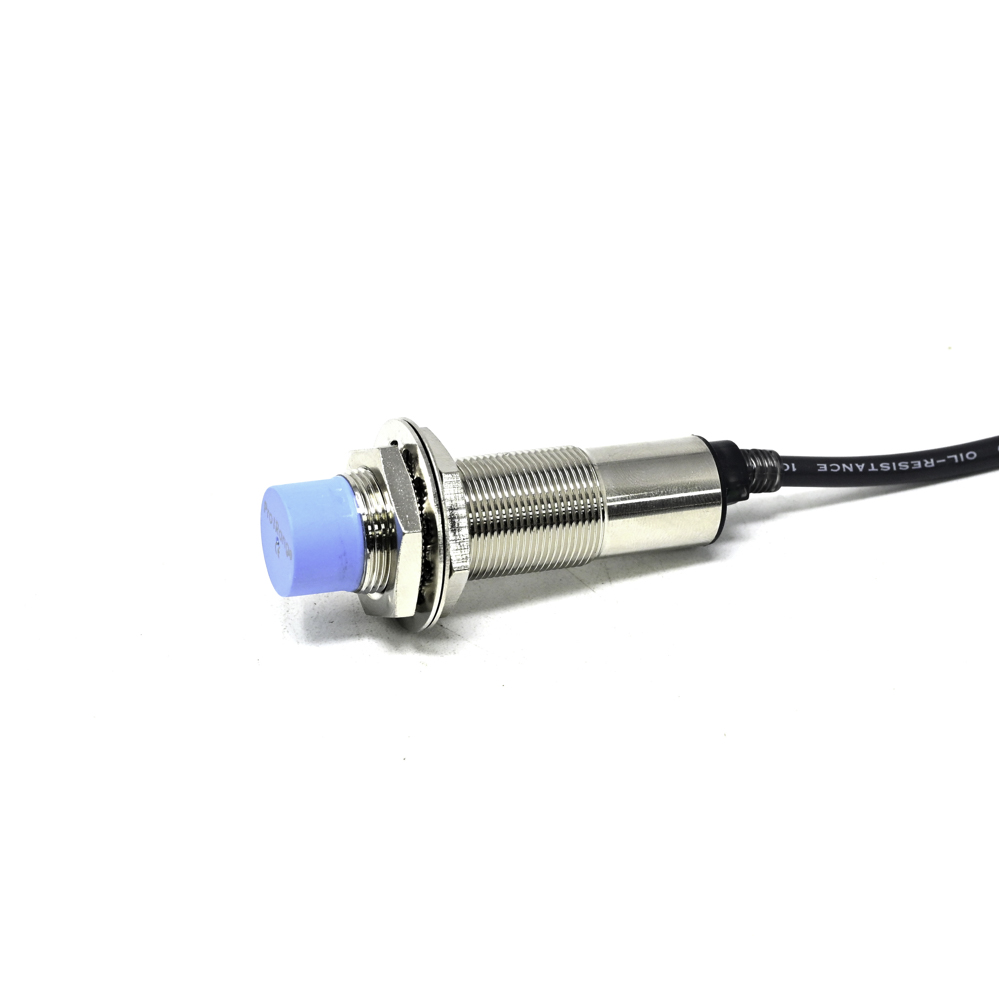

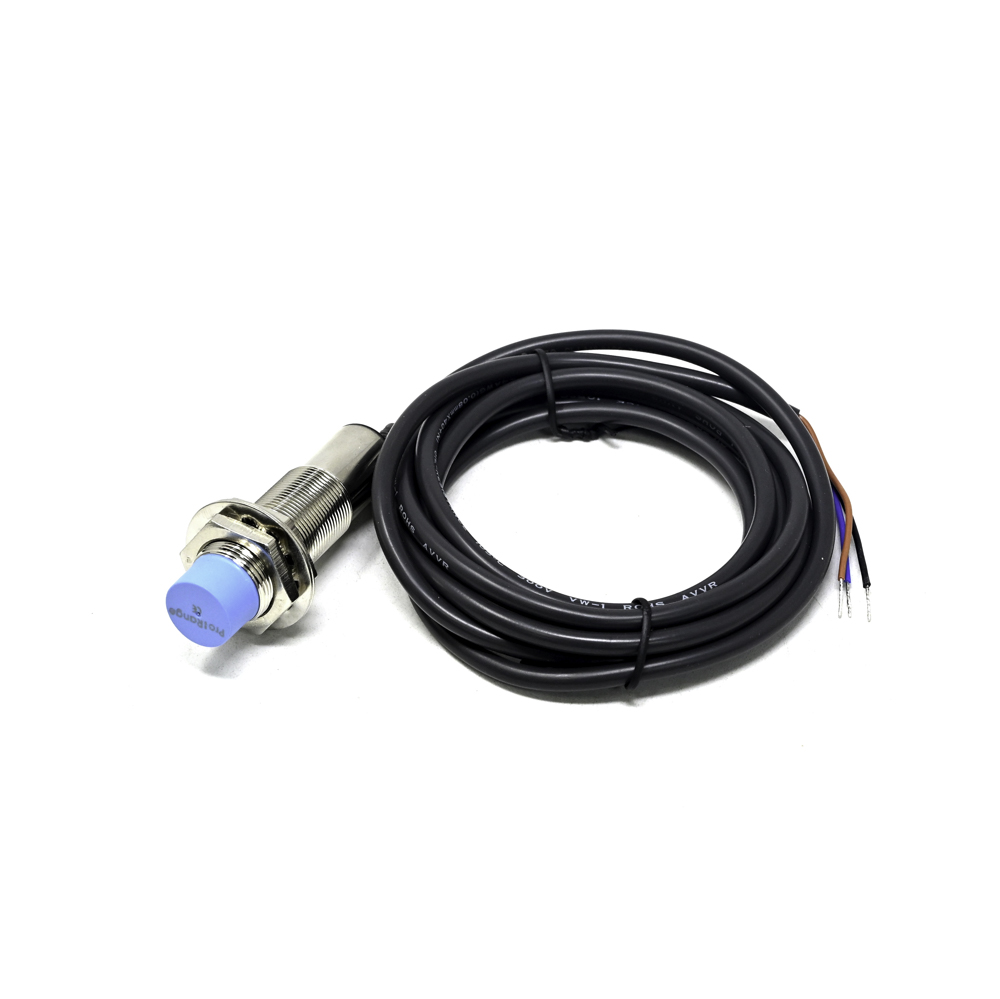

Pro-Range CLJ-A18-8APB Inductive Proximity Sensor - PNP Output, M18 Thread, 8mm Detection
The Pro-Range CLJ-A18-8APB is an M18-threaded inductive proximity sensor with a PNP (sourcing) output, designed for non-contact detection of metallic objects within an 8mm range. It integrates directly with industrial PLCs, automation controllers, and 10-30V DC systems for reliable position sensing and limit switching.
Features
- PNP (Sourcing) Output for direct compatibility with standard PLC input modules.
- 8mm Standard Detection Distance for precise metallic object sensing.
- M18 x 1 Threaded Stainless Steel Housing for robust industrial mounting.
- 10-30V DC Wide Operating Voltage with built-in polarity and short-circuit protection.
- High-Speed Switching for fast response in automation and counting applications.
Out of stock
The CLJ-A18-8APB operates on the electromagnetic induction principle, generating an oscillating field from its sensing face. When a conductive metal object (typically ferrous or non-ferrous) enters this field, eddy currents are induced, causing a detectable change in the sensor’s oscillation amplitude. This change is processed by internal circuitry to switch the PNP transistor output.
Constructed with a corrosion-resistant metal housing, this sensor is built for durability in industrial environments. Its threaded M18 body allows for easy integration into machine frames, conveyor systems, and robotic cells, providing a reliable solution for position verification, part counting, and end-of-travel detection without mechanical wear.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 5 × 10 cm |
