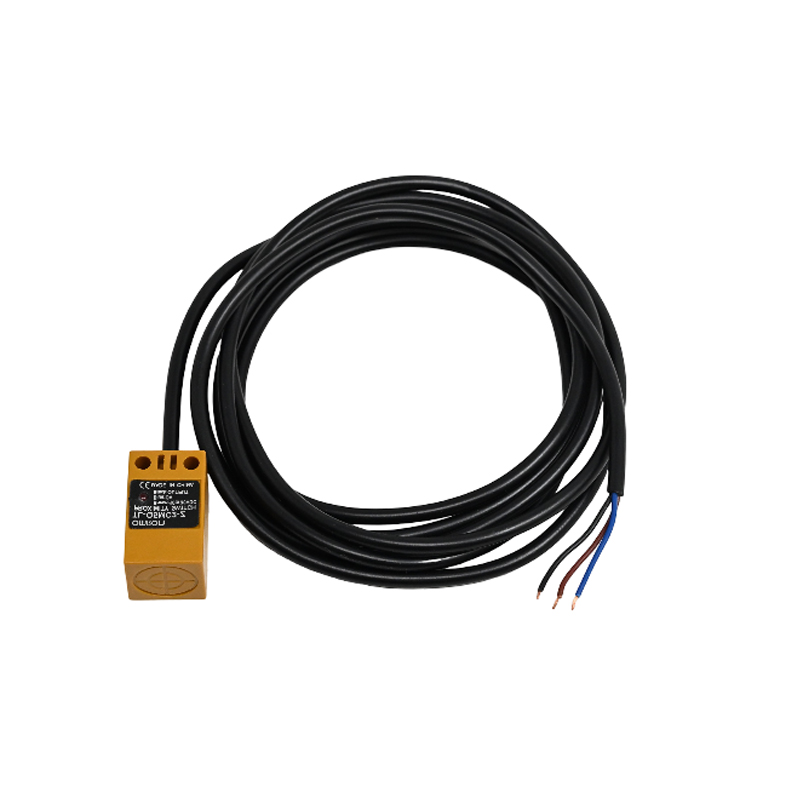

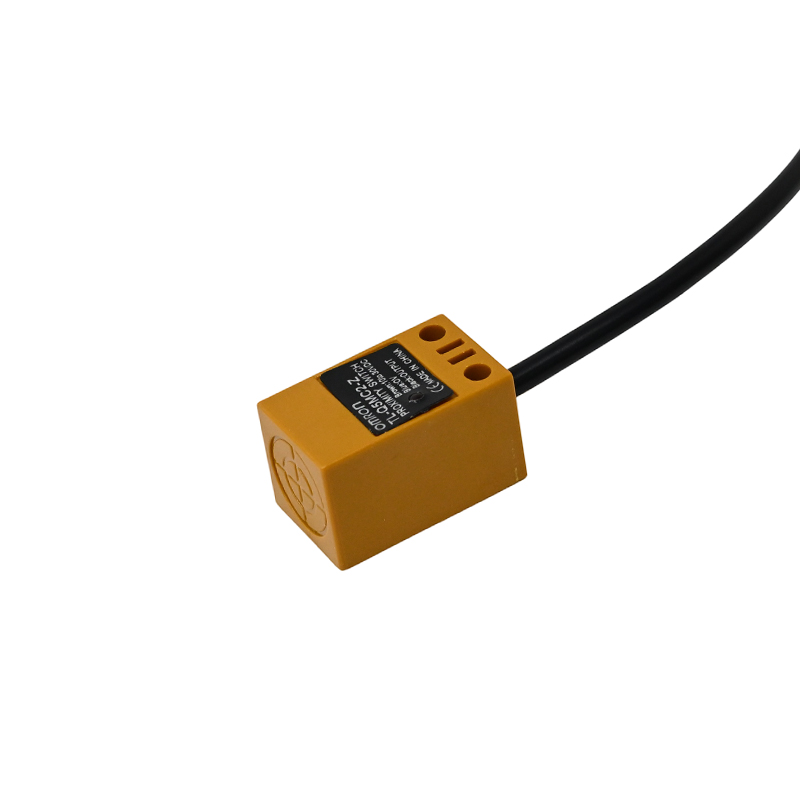

Omron TL-Q5MC2 Inductive Proximity Sensor, NPN NO Output, 5mm Sensing, 500Hz, 10-30VDC, Square Body, 2m Cable

The TL-Q5MC2 provides an NPN open collector output in a Normally Open (NO) configuration. This means the output transistor switches the load (sink) to ground when a metal target is detected within the 5mm sensing range, compatible with standard PLC sinking input modules.

The sensor operates from 10 to 30 VDC. It uses a standard 3-wire connection: brown wire to positive DC supply (+V), blue wire to negative/common (0V), and black wire as the switched NPN output. The built-in reverse polarity protection safeguards against incorrect wiring.

No. As a standard inductive proximity sensor, the TL-Q5MC2 is specifically tuned for detecting ferrous metals (steel, iron). Detection of non-ferrous metals requires a different sensor type, such as a capacitive or all-metal inductive model, as the sensing distance would be significantly reduced or unreliable.

The sensing distance (5mm) is the nominal range at which the sensor reliably detects a standard target. The setting distance (0-4mm) is the recommended installation gap between the sensor face and the target to ensure stable operation and account for mechanical tolerances and temperature drift.

While the sensor features a rugged housing, specific IP ratings are not listed in the provided data. Typical Omron TL series sensors offer IP67 protection. For outdoor or high-pressure washdown applications, confirm the exact IP rating from the official datasheet and ensure the cable gland is properly sealed.
