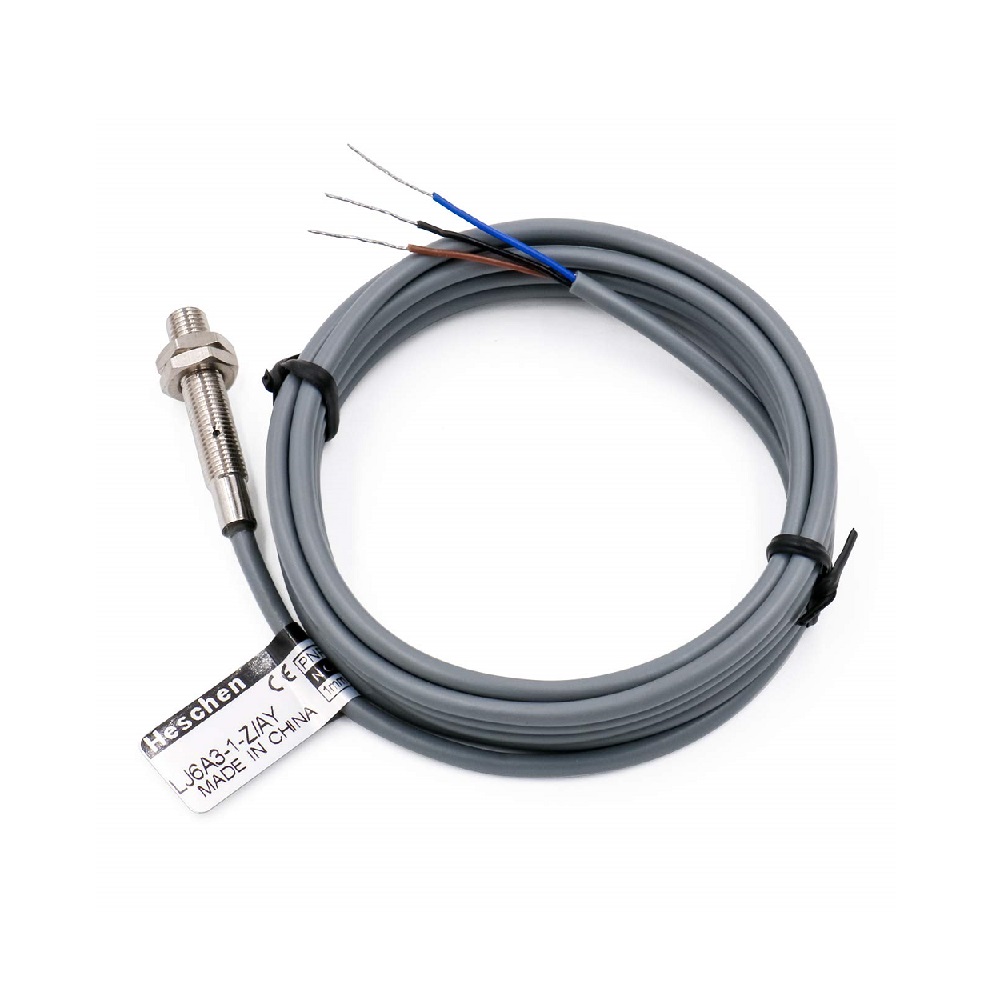

LJ6A3-1-Z/AY Inductive Proximity Sensor PNP NC, 1.5mm Detection Range, Shielded, 1.2m Cable
The LJ6A3-1-Z/AY is a shielded inductive proximity sensor with a 1.5mm detection range and PNP normally closed (NC) output, designed for non-contact detection of metallic objects in industrial automation systems operating from 10-30VDC.
Features
- Shielded inductive sensor with a 1.5mm (±10%) detection range for precise metal object detection.
- PNP normally closed (NC) output configuration compatible with standard PLC and controller inputs.
- Robust brass-nickel plated housing with IP65 rating for durability in industrial environments.
- Wide operating voltage range of 10-30VDC with reverse polarity protection.
- Includes a 1.2-meter cable for direct installation and connection.
Out of stock
The LJ6A3-1-Z/AY is a shielded inductive proximity sensor that operates on the principle of electromagnetic induction to detect ferrous and non-ferrous metal targets without physical contact. Its shielded design allows for flush mounting in metal, reducing installation constraints. The sensor provides a solid-state PNP normally closed (NC) output signal, switching off when a target enters its 1.5mm sensing field.
Encased in a durable brass-nickel plated body with an IP65-rated seal, this sensor is built to withstand dust, oil, and water spray common in factory automation, packaging, and material handling applications. It integrates reverse connection protection to safeguard against wiring errors, ensuring reliable operation across its specified 10-30VDC supply range.
Additional Information
| Weight | 0.138 kg |
|---|
