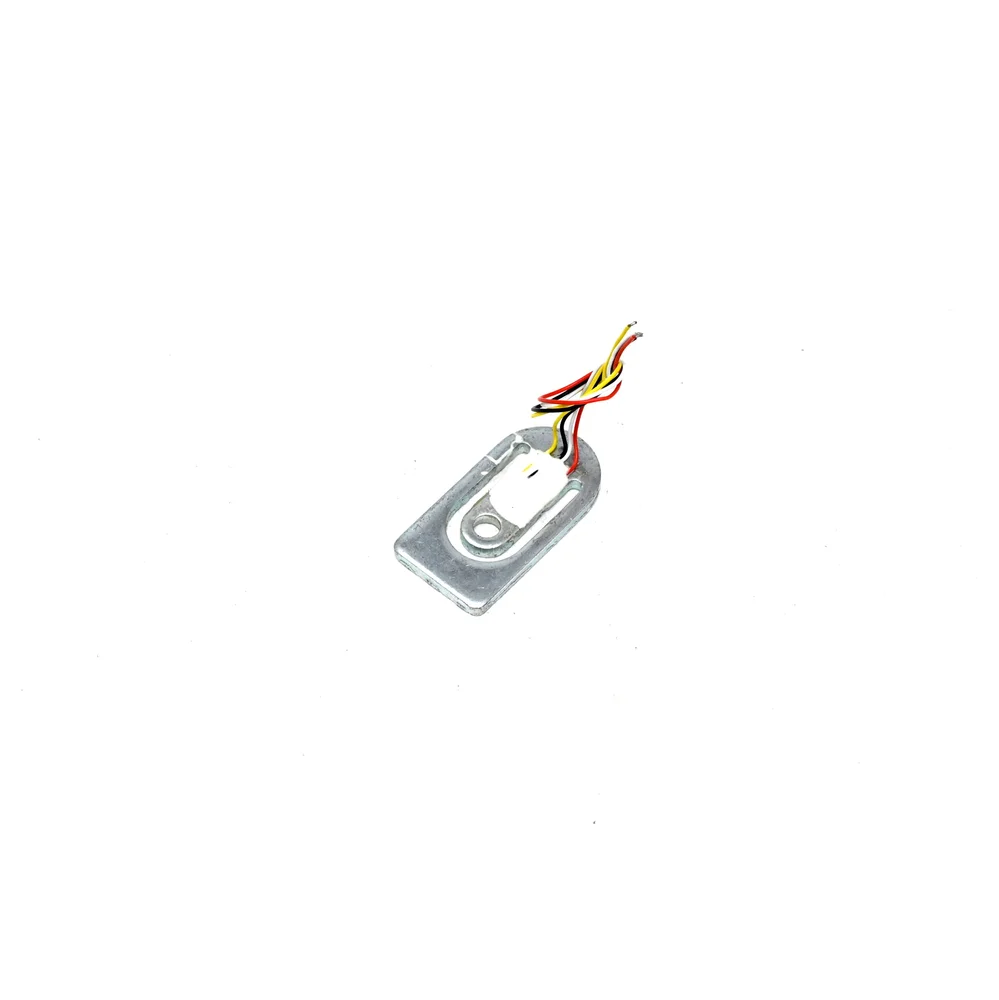

Phaeton CZL-U-700E Load Cell Sensor 50kg Pressed Down - Screw-Fastened

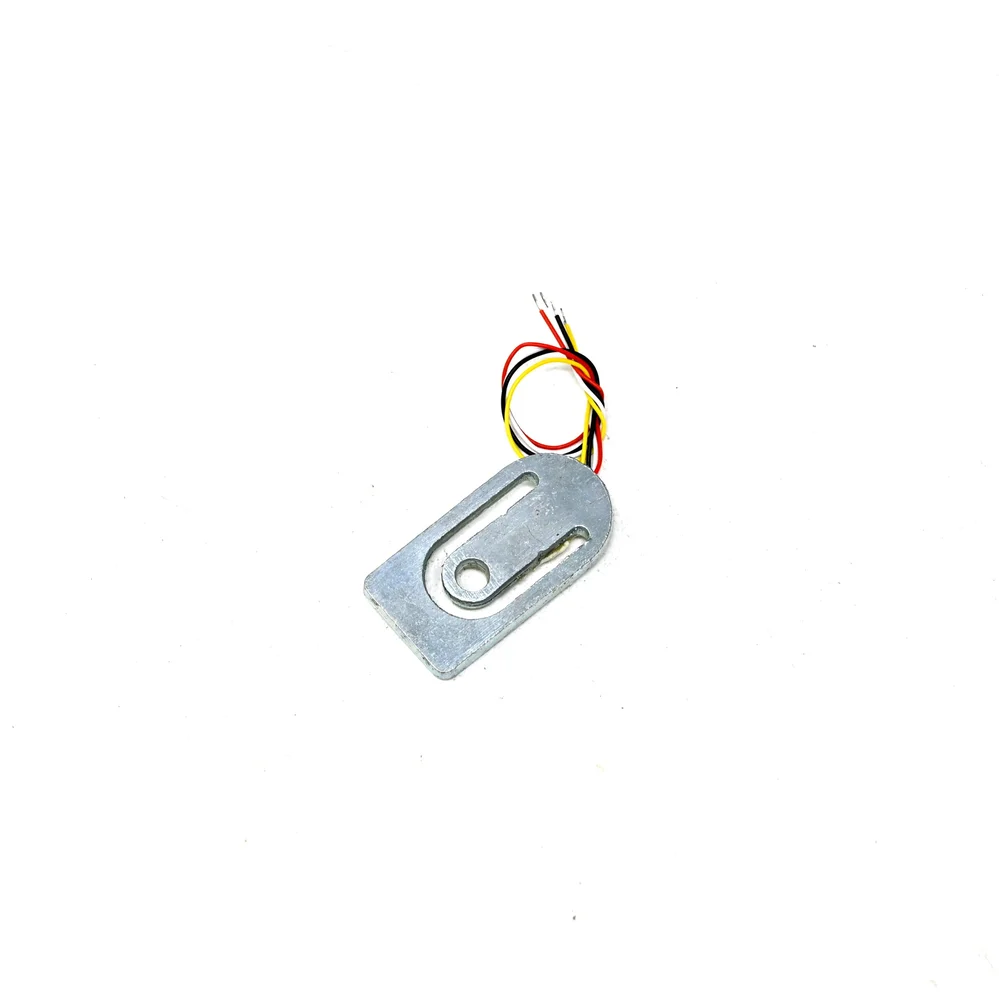

Phaeton CZL-U-700E Load Cell Sensor 50kg Pressed Down - Screw-Fastened - Image 2
SKU: SENS-1570
📋 GST Invoice Available

Phaeton CZL-U-700E Load Cell Sensor 50kg Pressed Down - Screw-Fastened

₹44.00 (Inclusive of all taxes)
Out of Stock

The Phaeton CZL-U-700E is a 50kg capacity, screw-fastened load cell sensor designed for precise weight measurement in industrial and commercial scales. It features a 1.0±0.2mV/V output sensitivity and is compatible with standard instrumentation amplifiers and data acquisition systems.

Features

  • 50 kg (approx. 110 lb) compressive load capacity
  • High output sensitivity of 1.0±0.2 mV/V
  • Screw-fastened design for secure, stable installation
  • Low hysteresis of 0.1% F.S. for repeatable measurements
  • Standard 4-wire configuration (Red, Green, Black, White)

Out of stock

Description

The Phaeton CZL-U-700E is a robust, pressed-down (compressive) load cell utilizing a strain gauge sensing principle to convert applied force into an electrical signal. Its screw-fastened design provides a rigid mounting solution, ensuring mechanical stability and accurate force transfer for consistent weight measurement.

Engineered for industrial environments, this sensor delivers a stable millivolt-per-volt output proportional to the applied load, with minimal hysteresis and drift. Its compact form factor allows for integration into space-constrained equipment such as bench scales, process control systems, and force monitoring assemblies.

Key Features

  • Precision Strain Gauge Construction: Delivers reliable and repeatable weight-to-signal conversion.
  • High Sensitivity Output: 1.0±0.2 mV/V signal provides excellent resolution for measurement systems.
  • Robust Mechanical Design: Screw-fastened housing ensures secure installation and long-term stability under load.
  • Low Hysteresis: 0.1% F.S. rating minimizes measurement error during loading and unloading cycles.
  • Standardized Wiring: Simple 4-wire configuration (Excitation +/- and Signal +/-) for straightforward connection to signal conditioners.
  • Compact Form Factor: Optimized for integration into equipment where space is limited.

Applications

  • Industrial bench scales and platform scales
  • Process control and batching systems
  • Force monitoring in production and testing equipment
  • Small-capacity hopper and tank weighing systems
  • Educational and prototyping projects requiring precise load measurement

Technical Specifications

Model NumberCZL-U-700E
Measuring Range50 kg
Output Sensitivity1.0±0.2 mV/V
Hysteresis0.1% F.S.
Wiring ConfigurationRed (+Excitation), Green (-Excitation), Black (+Signal), White (-Signal)
Load DirectionPressed Down (Compressive)
Mounting StyleScrew-Fastened

Frequently Asked Questions

What is the wiring diagram for the Phaeton CZL-U-700E load cell?

The sensor uses a standard 4-wire configuration: Red wire for positive excitation (+E), Green wire for negative excitation (-E), Black wire for positive signal output (+S), and White wire for negative signal output (-S). Connect these to the corresponding terminals on your signal conditioner or instrumentation amplifier.

Can this load cell be used for tension (pulling) measurements?

No, the CZL-U-700E is designed specifically as a 'pressed down' or compressive load cell. Its mechanical structure is optimized to measure forces applied in a single direction that compresses the sensor. Using it for tensile loads may damage the unit and void its calibration.

What type of signal conditioner or amplifier is needed with this sensor?

You will need a load cell amplifier or signal conditioner that accepts a millivolt-per-volt (mV/V) input from a 4-wire Wheatstone bridge. The amplifier provides the required excitation voltage (typically 5V or 10V DC) and amplifies the small output signal to a usable level, such as 0-5V or 4-20mA, for your PLC, ADC, or data logger.

Package Includes

  • 1 x Phaeton CZL-U-700E Load Cell Sensor

Additional Information

Weight 0.075 kg
Dimensions 7 × 9 × 3 cm
