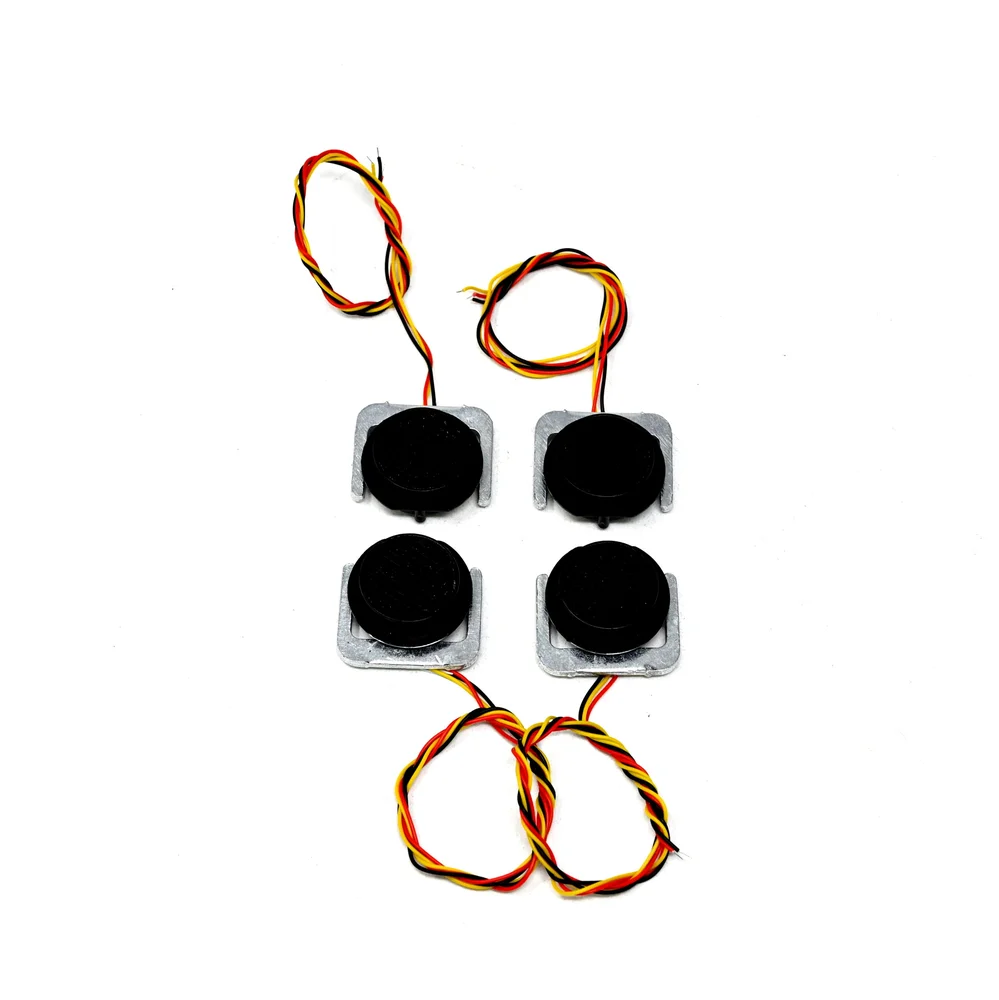

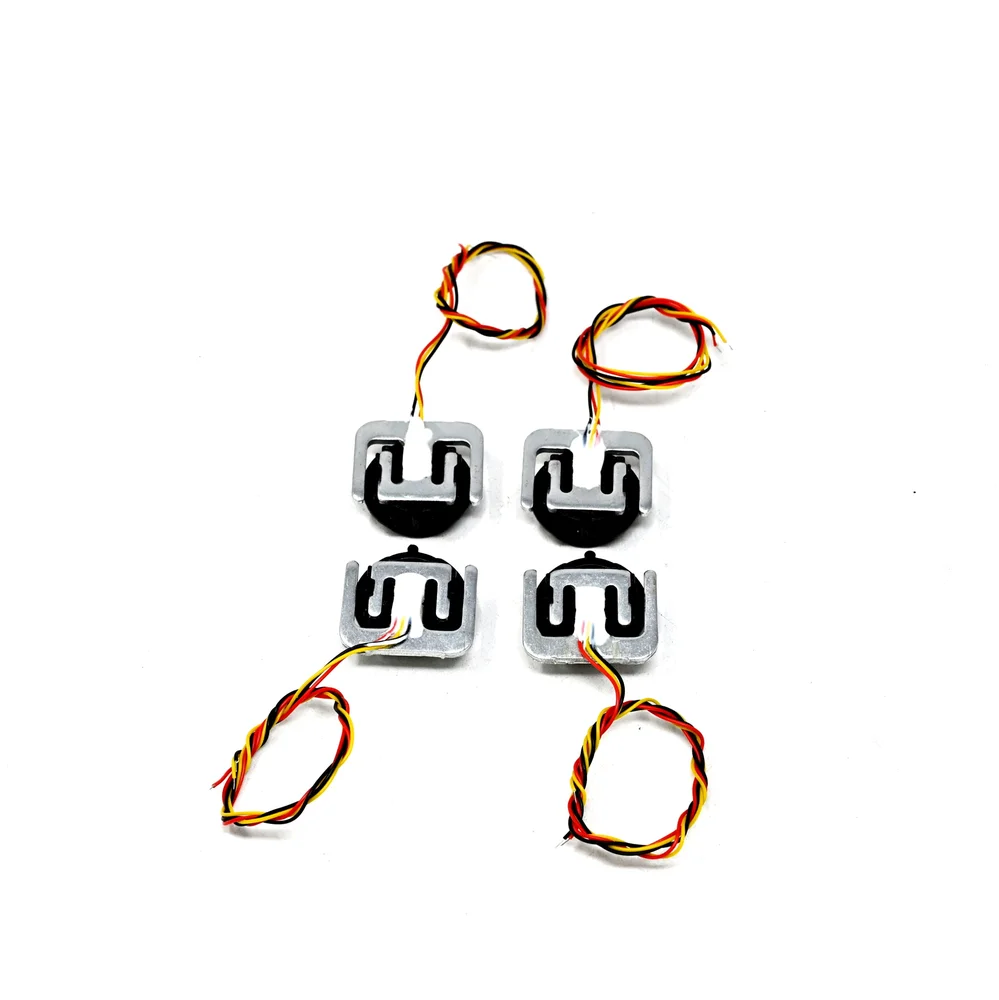

Phaeton CZL-E Load Cell Sensor Weighing Pressed Down (Set of 4 Sensors) - Analog Voltage Output
The Phaeton CZL-E is a high-precision, strain gauge-based load cell designed for pressed-down weighing applications, delivering an analog voltage output proportional to applied force. Compatible with 3-9V DC power supplies, it is ideal for integration into electronic scales, industrial automation, and IoT monitoring systems requiring accurate weight measurement.
Features
- High-precision strain gauge transducer with 0.2 to 200 kg measurement range.
- Analog voltage output with a sensitivity of 1.0mV/V for direct signal conditioning.
- Robust alloy steel construction ensures durability and long-term stability.
- Low non-linearity and hysteresis (≤±0.5% FS) for reliable, repeatable measurements.
- Compact 30mm x 23mm form factor designed for pressed-down force applications.
Out of stock
The Phaeton CZL-E Load Cell operates on the principle of resistance strain measurement, where applied mechanical load deforms a precision strain gauge, generating a proportional change in electrical resistance. This change is output as a stable analog voltage signal, suitable for direct interfacing with instrumentation amplifiers, ADCs, and microcontroller-based data acquisition systems.
Engineered for pressed-down force applications, its alloy steel body provides high structural integrity and resistance to off-axis loading. The sensor features robust sealing for protection against environmental factors, ensuring consistent performance in industrial weighing scales, process control, and automated test equipment.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 3 × 2.3 cm |
