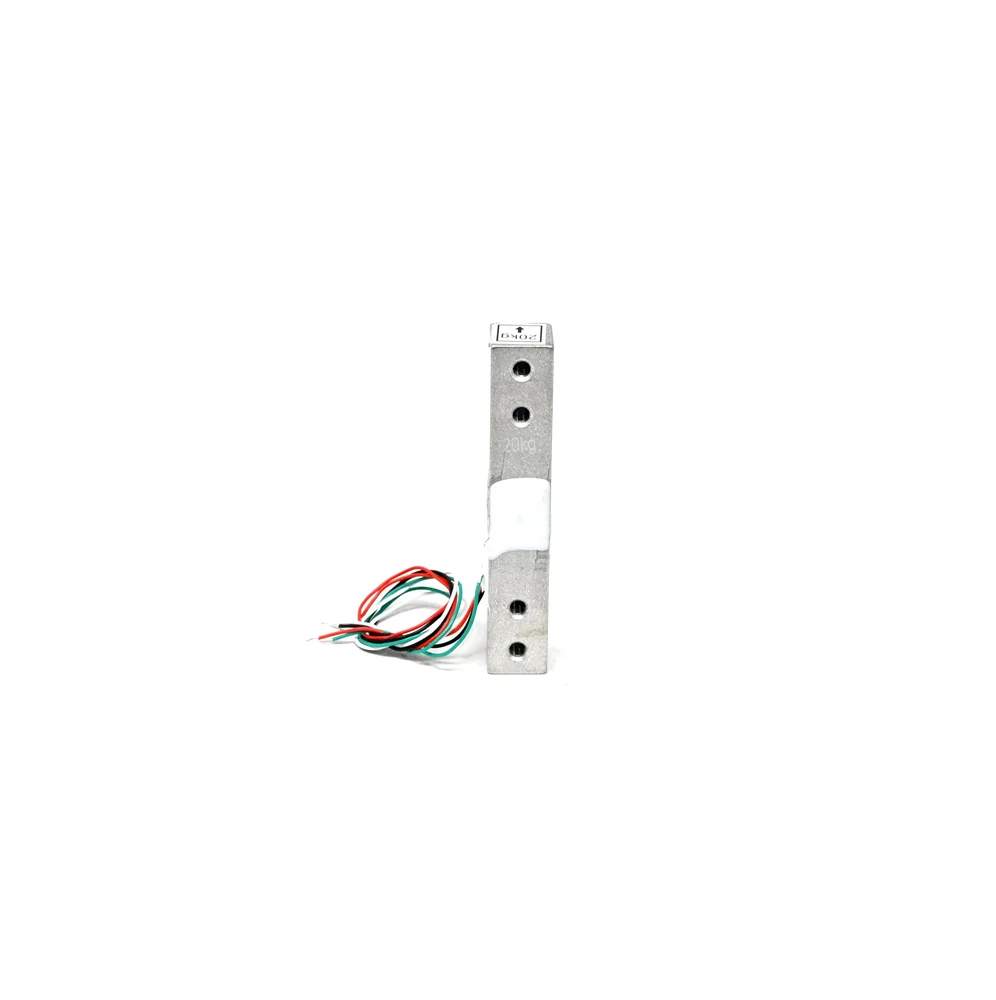

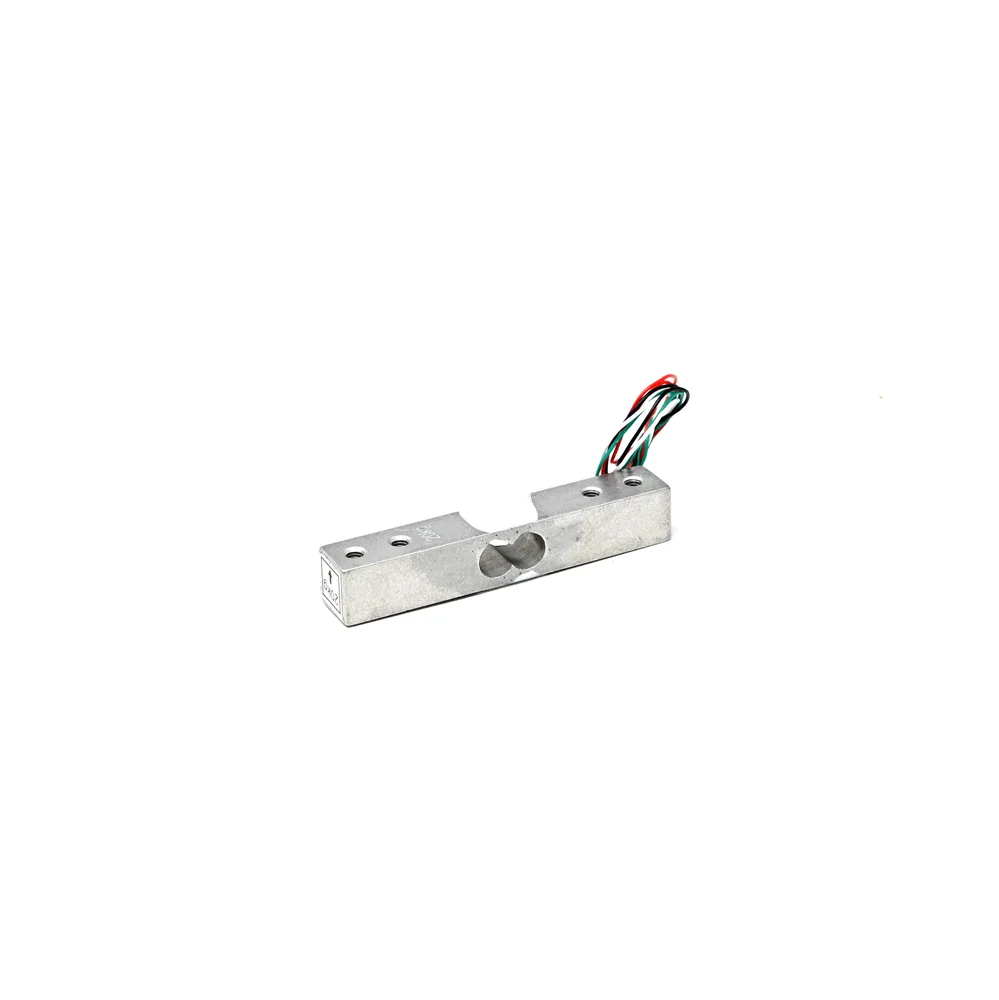

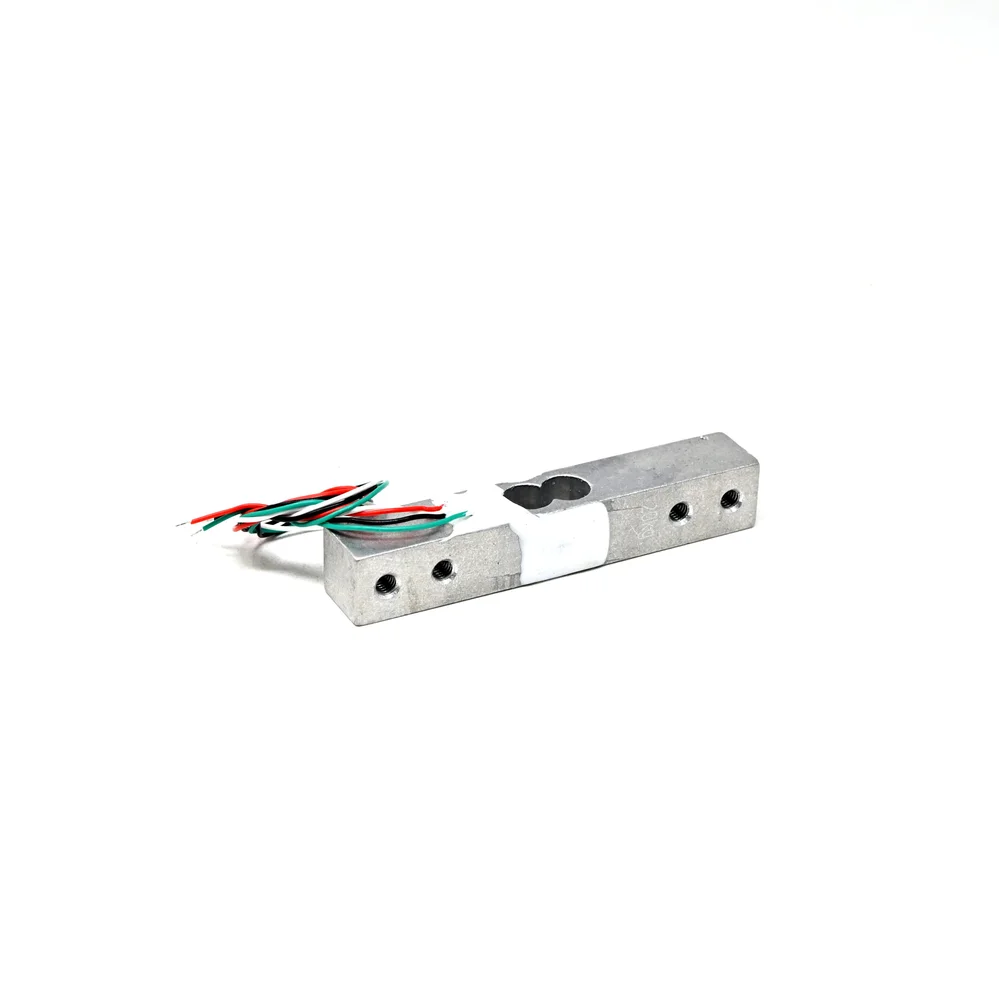

Phaeton CZL-611N 20KG Load Cell Sensor - Screw-fastened
The Phaeton CZL-611N is a 20 kg capacity, screw-fastened load cell sensor designed for precise weight measurement in industrial and commercial scales. It features a 1.0 mV/V output sensitivity and is compatible with standard instrumentation amplifiers and data acquisition systems.
Features
- 20 kg nominal capacity with high linearity and repeatability.
- Output sensitivity of 1.0±0.1 mV/V for precise signal generation.
- Screw-fastened design for robust, stable mechanical mounting.
- Compact dimensions of 80 x 12.7 x 12.7 mm for space-constrained installations.
- Standard 4-wire configuration (Red, Green, Black, White) for easy connection.
Out of stock
The CZL-611N load cell utilizes a precision strain gauge bridge to convert applied force into a proportional electrical signal. Its screw-fastened construction provides a secure mechanical interface, ensuring stable performance under dynamic loads and minimizing mounting stress errors.
With an output sensitivity of 1.0±0.1 mV/V and an output impedance of 1000±5% ohms, it delivers a stable signal suitable for connection to common signal conditioners, instrumentation amplifiers, and industrial PLC analog input modules. The sensor is designed for reliable operation in various industrial weighing and force monitoring applications.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 8 × 1.27 × 1.27 cm |
