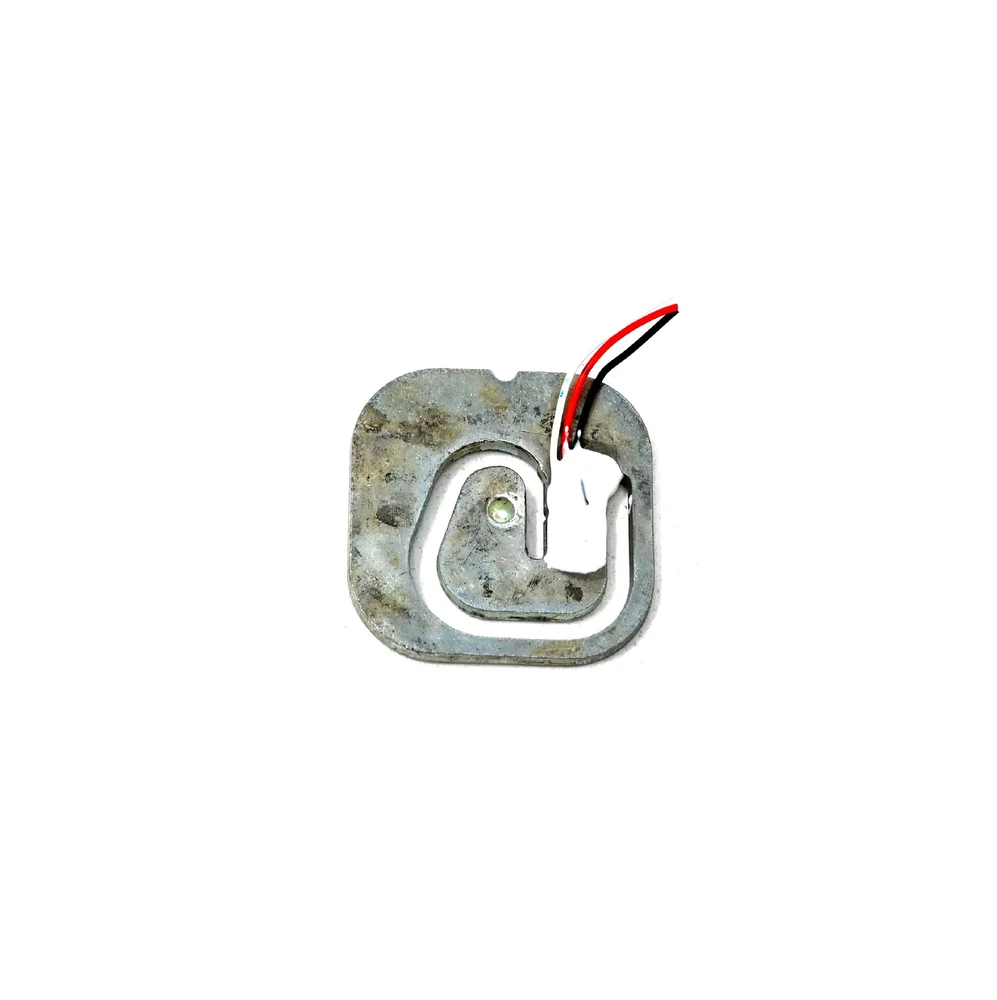

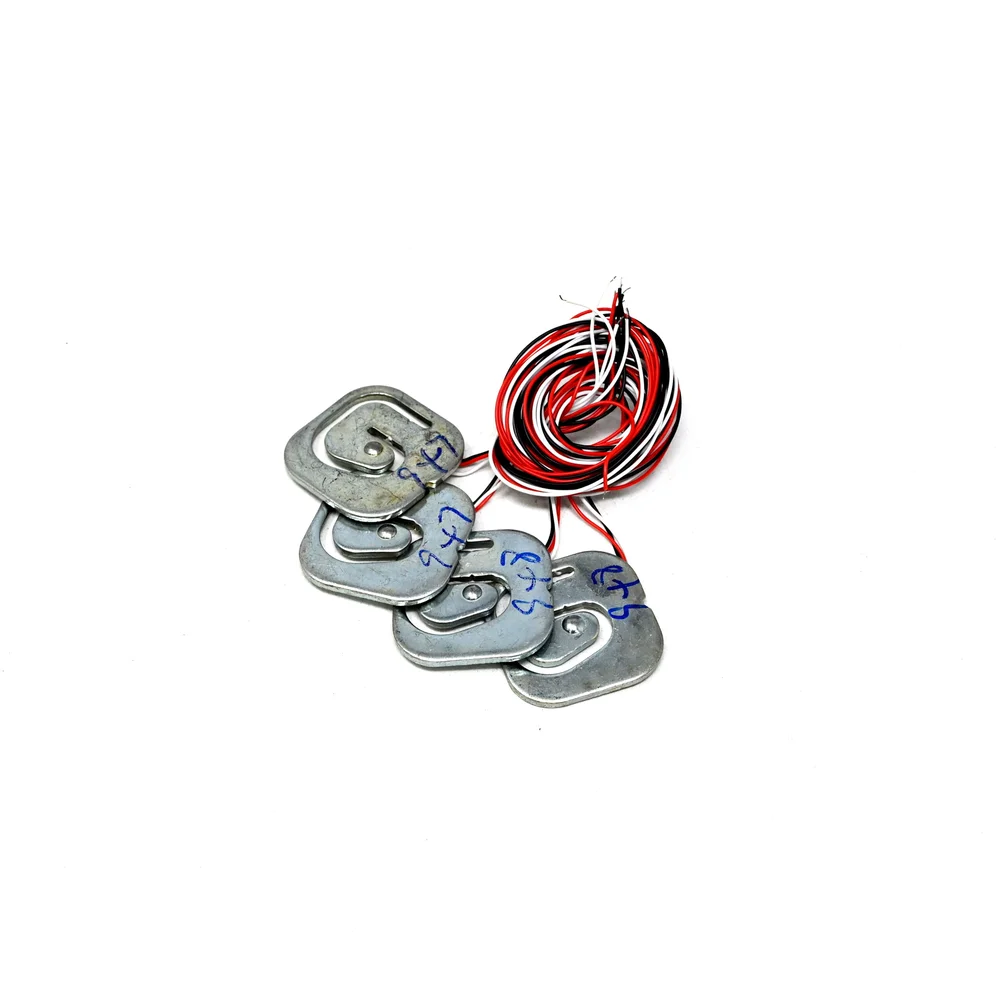

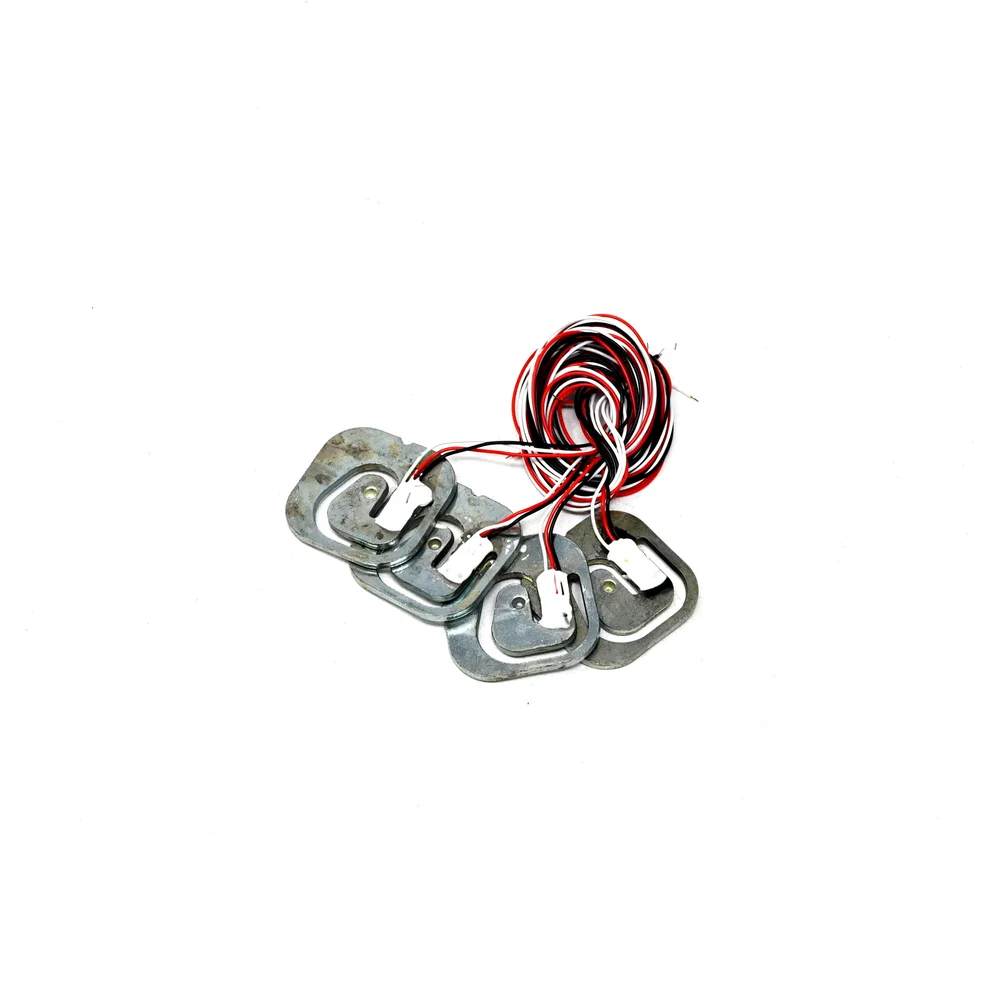

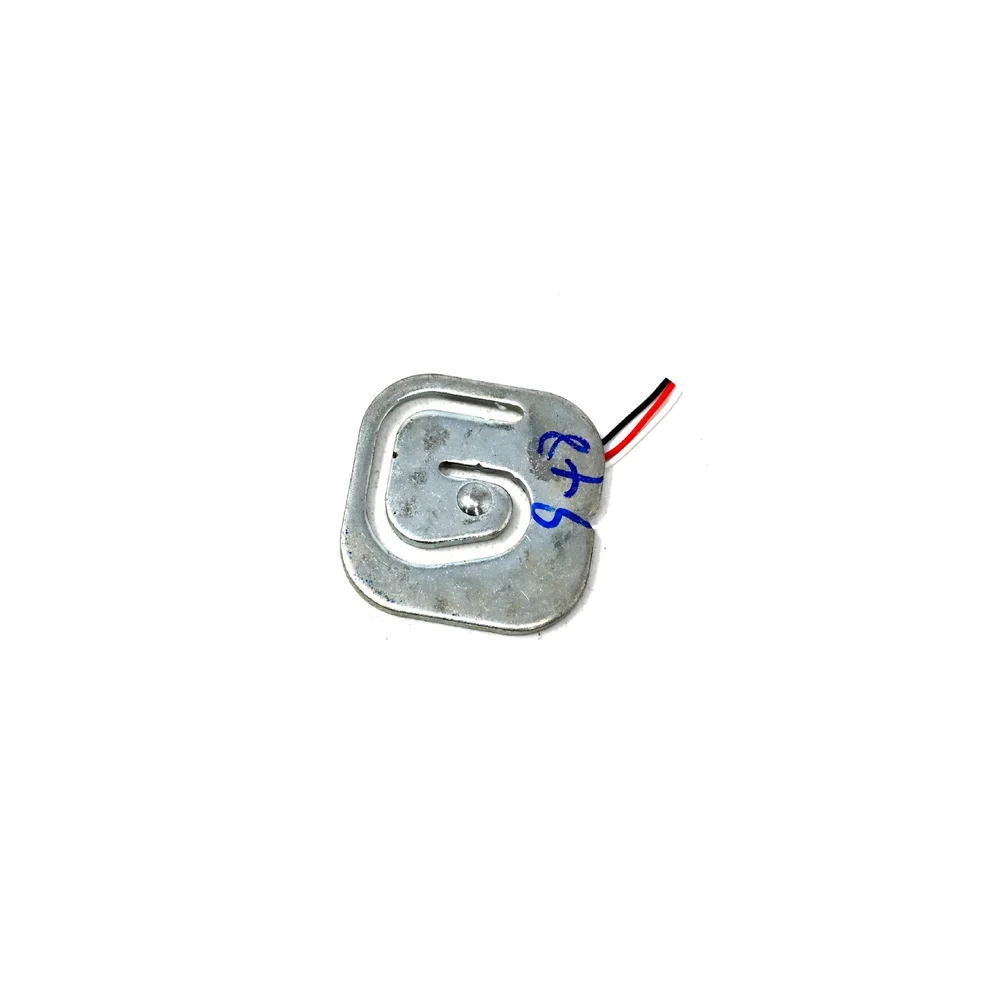

Phaeton Big 6 Load Cell Sensor - 50kg Push Down, Screw-Fastened

₹121.00 (Inclusive of all taxes)
Out of Stock

The Phaeton Big 6 is a 50kg capacity, push-down load cell sensor designed for precise weight measurement in industrial and commercial scales. Featuring a screw-fastened design for secure installation, it provides a stable 1.0±0.2mV/N output signal compatible with standard instrumentation amplifiers and weighbridge controllers.

Features

  • 50kg Push-Down Capacity: Engineered for precise weight measurement up to 50 kilograms.
  • High Output Sensitivity: Delivers a stable 1.0±0.2mV/N signal for accurate readings.
  • Screw-Fastened Design: Ensures robust mechanical stability and easy installation.
  • Low Hysteresis: Maintains accuracy with a hysteresis of ≤0.2% of full scale (F.S.).

Out of stock

Description

The Phaeton Big 6 load cell is a robust, strain-gauge-based transducer engineered for push-down force and weight measurement applications. Its compact, screw-fastened aluminum alloy construction provides high structural rigidity and stability, ensuring reliable performance in demanding industrial environments such as bench scales, process control, and material testing equipment.

The sensor utilizes a full Wheatstone bridge configuration, outputting a millivolt-per-volt signal proportional to the applied load. With specified low hysteresis and temperature drift, it maintains measurement consistency across repeated loading cycles and varying ambient conditions, making it suitable for integration into precision weighing systems.

Key Features

  • Precision Strain Gauge Design: Provides high linearity and repeatability for accurate 50kg weight measurement.
  • Robust Aluminum Alloy Construction: Ensures durable performance and long-term stability under load.
  • Standardized Four-Wire Output: Features Red/Green for excitation and Black/White for signal, simplifying connection to amplifiers.
  • Optimized Performance-to-Cost Ratio: Delivers reliable industrial-grade sensing in a compact, value-engineered package.
  • Low-Temperature Drift: Engineered to maintain accuracy across a wide operating temperature range.

Applications

  • Industrial bench scales and platform scales for parts counting or batching.
  • Process control and force monitoring in manufacturing and packaging lines.
  • Material testing equipment for measuring compressive forces.
  • DIY and educational projects requiring precise weight measurement up to 50kg.

Technical Specifications

Model / NameBig 6
Measuring Range50 kg
Output Sensitivity1.0 ± 0.2 mV/N
Hysteresis≤ 0.2% F.S.
Wiring ConfigurationExcitation+ (Red), Excitation- (Green), Signal+ (Black), Signal- (White)
Mounting TypeScrew-Fastened
Operating PrincipleStrain Gauge / Wheatstone Bridge

Frequently Asked Questions

What is the wiring configuration for the Phaeton Big 6 load cell?

The Big 6 uses a standard four-wire configuration: Red wire for positive excitation (+E), Green for negative excitation (-E), Black for positive signal output (+S), and White for negative signal output (-S). This setup connects directly to most instrumentation amplifier or weighbridge modules.

What type of amplifier or controller do I need to read the signal from this 50kg load cell?

You need a differential input amplifier or a dedicated load cell amplifier (like an HX711) that can accept a millivolt-per-volt signal. The amplifier provides the required excitation voltage (typically 5V or 10V) to the Red/Green wires and amplifies the small differential voltage from the Black/White wires into a readable signal for an Arduino, PLC, or data logger.

Is this sensor suitable for both push-down and lift (tension) applications?

No, the Phaeton Big 6 is specifically designed as a push-down (compressive) load cell. Its mechanical structure is optimized to measure forces applied in one direction. Using it for tensile (pulling) forces may damage the sensor and will provide inaccurate readings.

Package Includes

  • 1 x Phaeton Big 6 Load Cell Sensor

Additional Information

Weight 0.075 kg
Dimensions 9 × 7 × 3 cm
