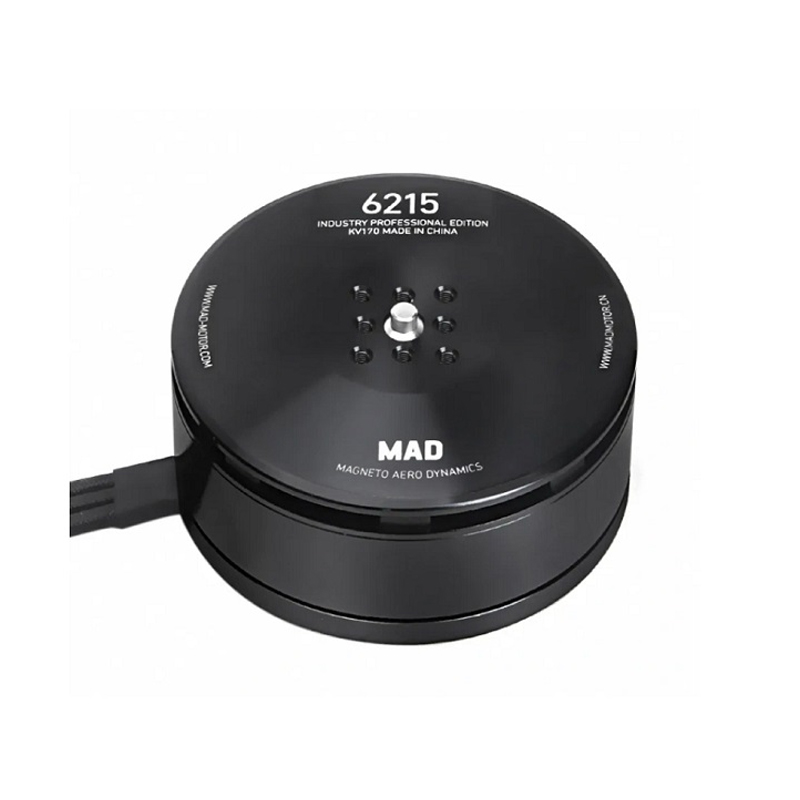

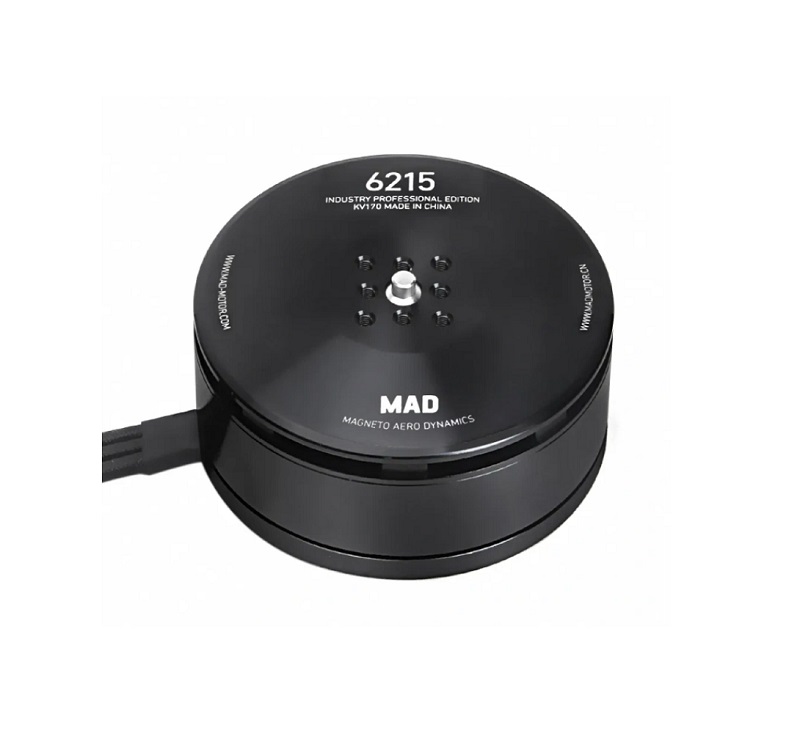

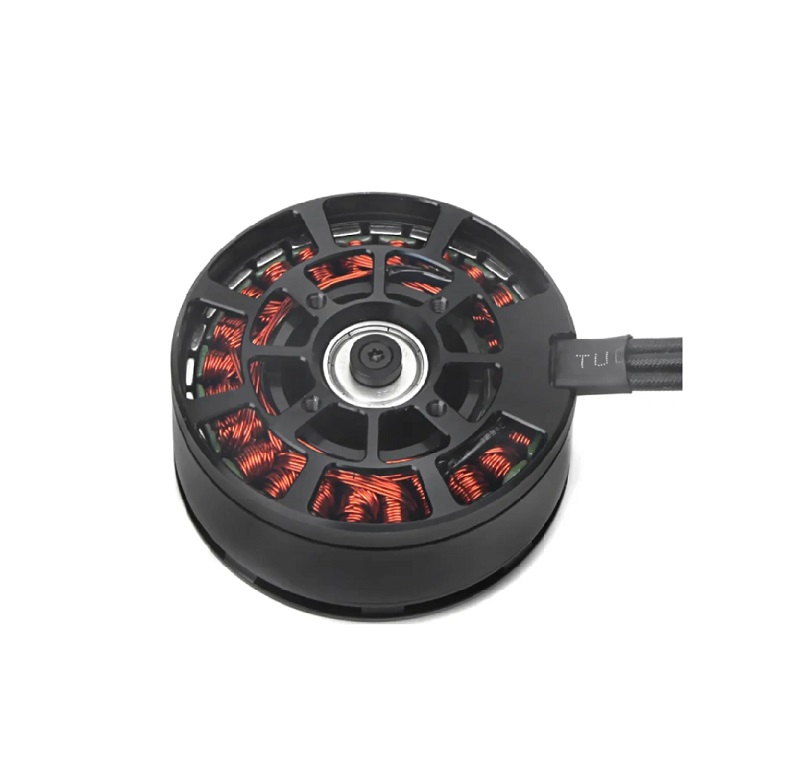

MAD Components Components 6215 IPE Agriculture Brushless Motor 320KV

The MAD Components Components 6215 IPE 320KV motor is specifically engineered for agricultural and heavy-lift drone applications. Its low KV rating provides high torque ideal for spinning large, slow-turning propellers efficiently, which is necessary for lifting heavy spray tanks or sensor payloads. The IP35 rating and robust bearing construction make it suitable for enduring the dusty, humid, and demanding conditions of farm operations.

The IP35 rating indicates a specific level of ingress protection. The '3' means it is protected against dust ingress to a limited degree (not dust-tight), and the '5' means it is protected against low-pressure water jets from any direction. This makes the motor suitable for agricultural use where it may be exposed to crop dust, chemical overspray, and rain, but it is not designed for submersion or high-pressure washing.

While the motor's 320KV rating is optimized for 6S LiPo (nominal 22.2V) operation to achieve its rated power and torque, it can be run on other voltages. However, performance will scale directly with voltage; using a lower voltage (e.g., 4S) will result in proportionally lower RPM and power output, while using a higher voltage (e.g., 8S) would exceed its design limits for current and power, likely causing overheating and failure. Always adhere to the 73A max current limit regardless of voltage.

The hollow shaft design is a functional feature for integration. It allows wires or tubing (such as for a liquid spray system) to pass directly through the center of the motor, enabling a cleaner and more centralized payload mounting on the drone. This improves the aircraft's center of gravity and aerodynamic profile compared to external routing, which is crucial for stability and efficiency in heavy-lift applications.
