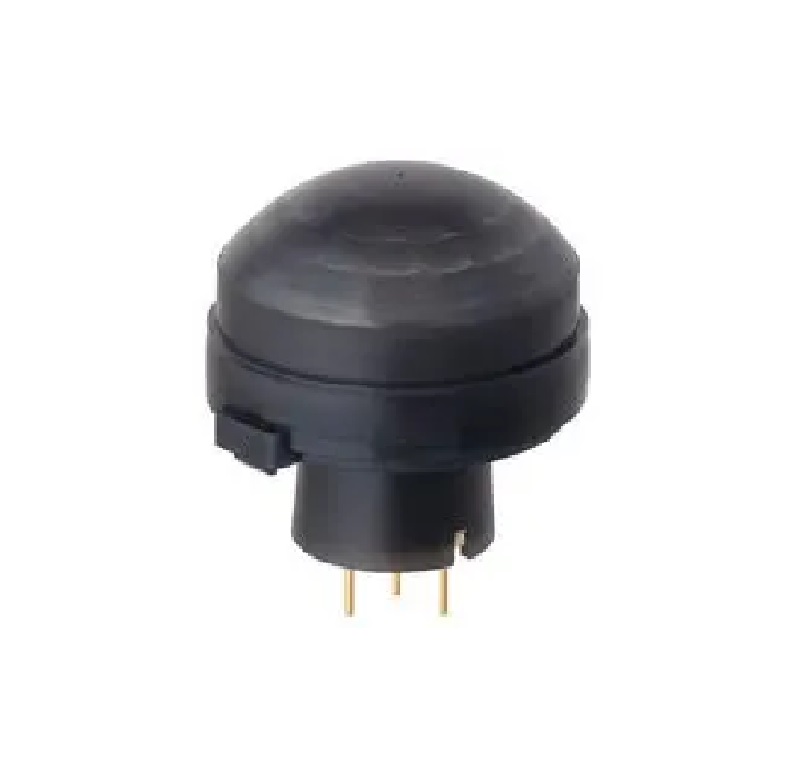

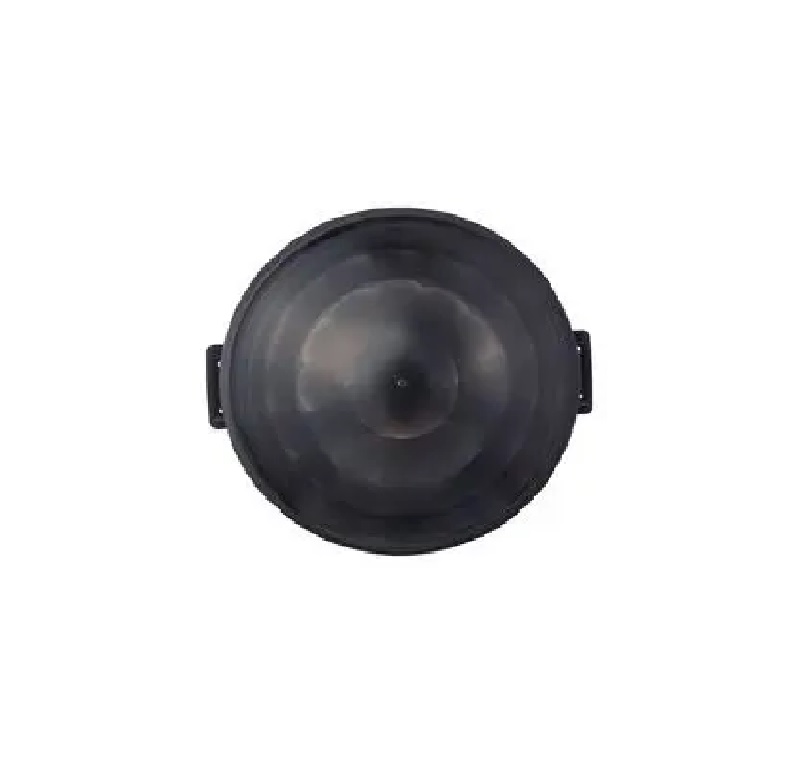

Panasonic EKMB1306112K PIR Sensor, Digital, 17m Range, 4V, Black
The Panasonic EKMB1306112K is a compact, low-voltage digital PIR sensor module designed for motion detection applications. It features a 17m detection range and a 4V power supply, making it suitable for integration into battery-powered IoT devices, security systems, and smart home automation.
Features
- Digital output PIR sensor with a 17-meter (56-foot) detection range.
- Ultra-low voltage operation from -0.3V to 4.5V DC for battery-powered designs.
- Compact black housing measuring 25mm x 20mm with a weight of only 2 grams.
- Wide operating temperature range from -25°C to +60°C for robust performance.
- Dual pyroelectric element design for reliable human motion sensing.
Out of stock
The Panasonic EKMB1306112K is a passive infrared (PIR) sensor that detects motion by measuring changes in infrared radiation emitted by objects within its field of view. It utilizes a pair of pyroelectric sensors to create a differential signal, triggering a digital output when a heat source, such as a person, moves across the detection zones. This design provides high immunity to ambient temperature changes and reduces false triggers.
Engineered for low-power consumption, this sensor is ideal for always-on applications in security, lighting control, and energy management systems. Its digital output simplifies interfacing with microcontrollers like Arduino, Raspberry Pi, or ESP32, requiring minimal external components for a complete motion detection solution.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 2.5 × 2 cm |
