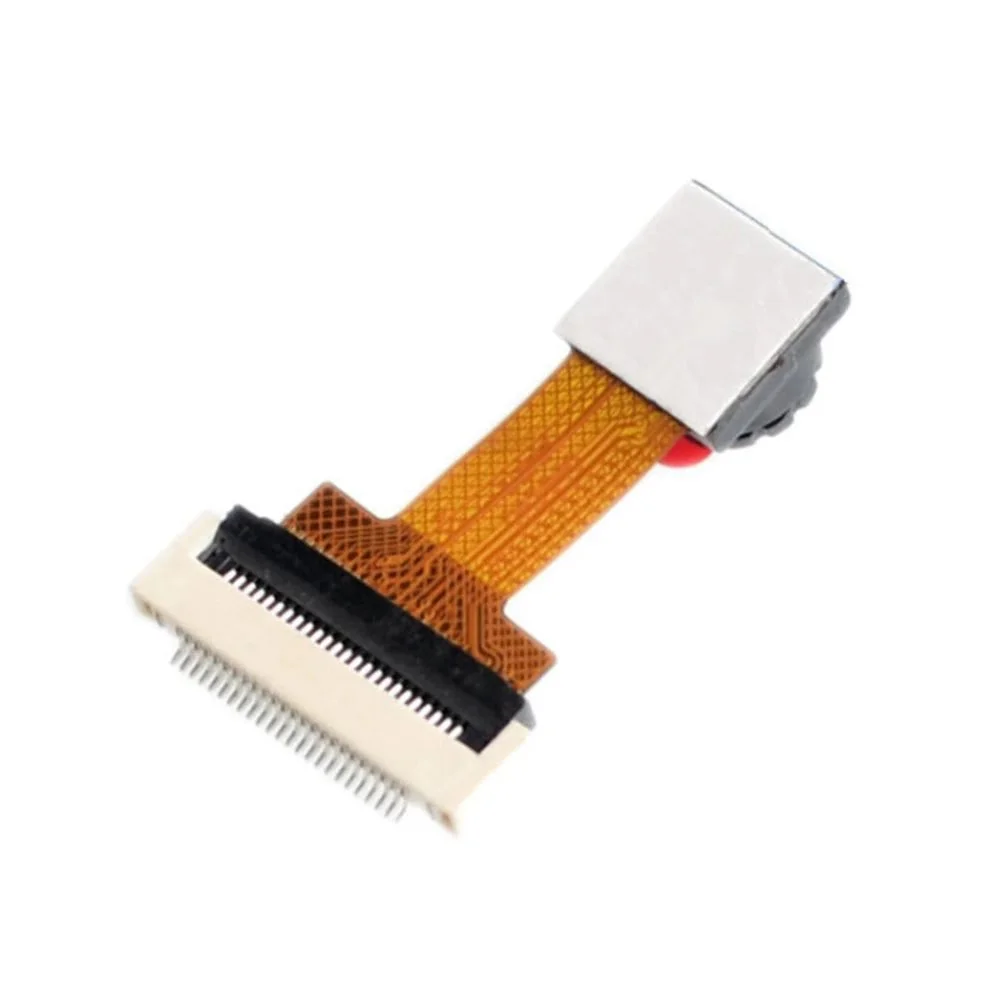

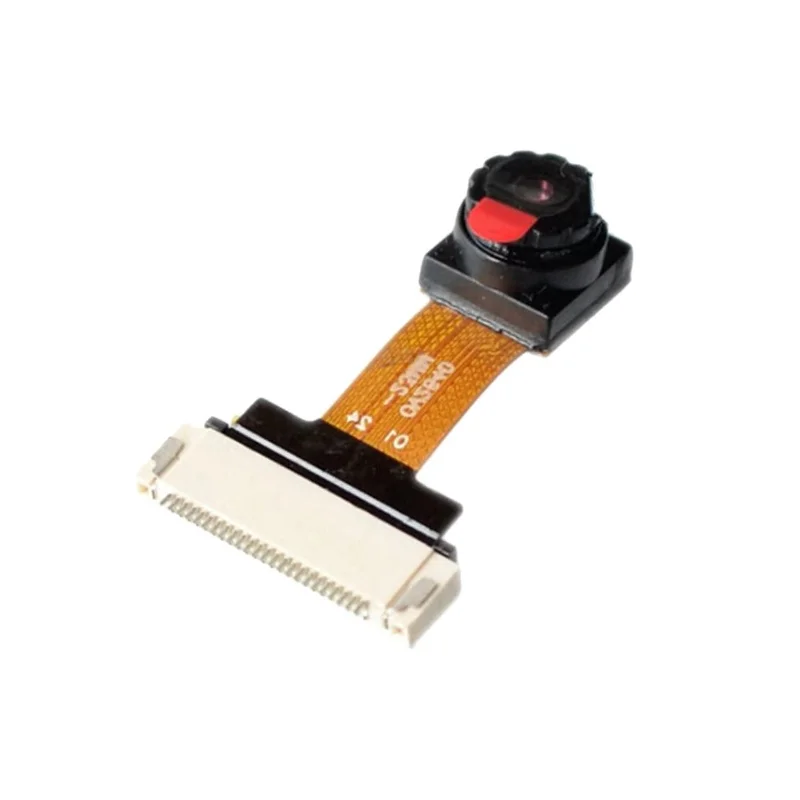

OV2640 2MP Camera Module w/ SCCB Connector
The OV2640 2MP Camera Module is a low-voltage CMOS image sensor with an SCCB (I2C-compatible) control interface, designed for embedded vision applications on platforms like ESP32, ESP8266, and Raspberry Pi.
Features
- 2 Megapixel CMOS sensor delivering VGA (640×480) and higher resolution images at up to 30 fps.
- Low 3.3V operating voltage and minimal 0.06W power consumption ideal for portable, battery-powered IoT devices.
- Standard SCCB (Serial Camera Control Bus) interface, fully compatible with I2C for easy register configuration.
- Integrated Image Signal Processor (ISP) with automatic exposure, gain, white balance, and black-level calibration.
- Compact 10x10mm footprint with a 67° field-of-view lens for space-constrained embedded projects.
Out of stock
The OV2640 is a single-chip, low-power CMOS image sensor that integrates a VGA camera core and an advanced image processor. It outputs full-frame, sub-sampled, or windowed 8-bit image data in various formats, all configurable via the Serial Camera Control Bus (SCCB). This interface is functionally identical to I2C, allowing straightforward integration with microcontrollers like the ESP32 or STM32 for on-device image capture and processing.
Engineered for embedded portable applications, the module operates from a 3.3V supply and consumes only 60mW. Its on-chip ISP provides key automatic image control functions—including AEC, AGC, AWB, and noise reduction—to ensure consistent image quality across varying lighting conditions without significant MCU overhead. The sensor’s high sensitivity also supports usable performance in low-light environments.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1 × 1 cm |
