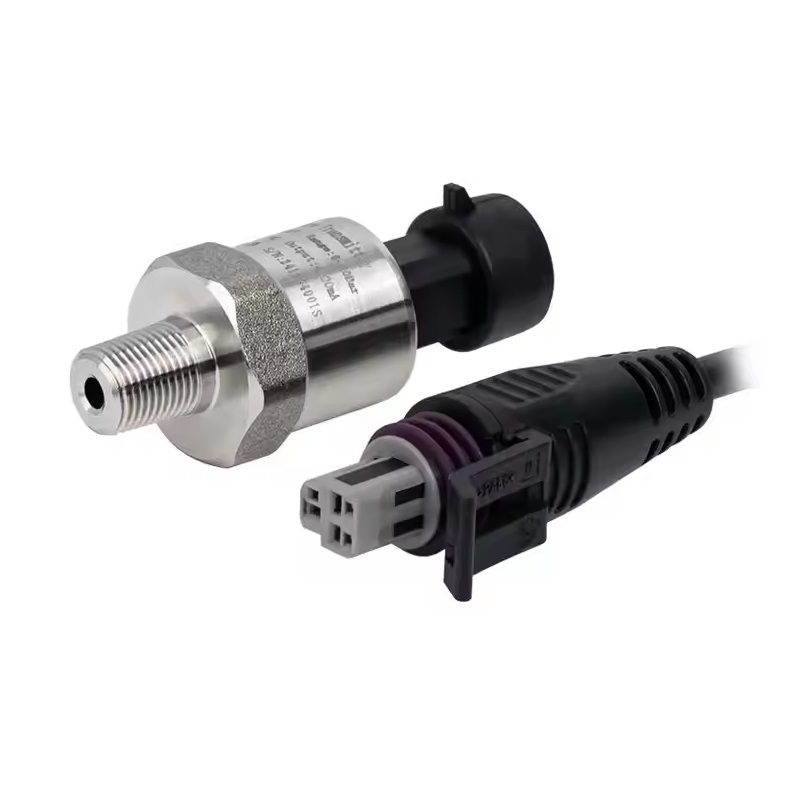

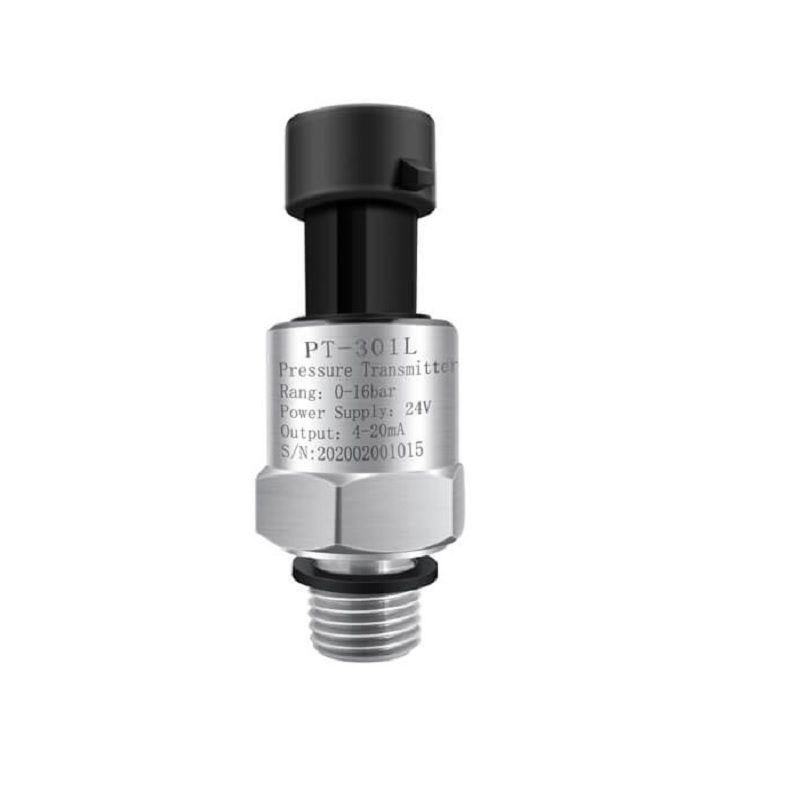

OULD PT-301L Pressure Transmitter (0-4MPa) - 4-20mA Output, Ceramic Sensor
The OULD PT-301L is a high-performance pressure transmitter featuring a robust 96% alumina ceramic sensor core, delivering a stable 4-20mA analog output signal for seamless integration with PLCs, data acquisition systems, and industrial control panels requiring 11-36V DC supply.
Features
- High-performance 96% alumina ceramic sensor core for exceptional stability and durability.
- Standard 4-20mA two-wire analog output for robust industrial signal transmission.
- Wide operating voltage range of 11-36V DC with reverse polarity protection.
- High accuracy of 0.5% full scale across a 0-4 MPa measurement range.
- Full temperature zone compensation for stable performance from -40°C to 85°C.
Out of stock
The PT-301L pressure transmitter utilizes a piezoresistive sensing principle via its advanced ceramic diaphragm, which deforms under applied pressure to produce a proportional electrical signal. This signal is conditioned by a high-reliability amplification circuit and digitally compensated for temperature effects, ensuring precise conversion to a standard 4-20mA current loop output.
Engineered for demanding environments, the transmitter is built to withstand significant overpressure and features a compact, industrial-grade housing. Its wide operating temperature range and robust construction make it suitable for direct installation in systems monitoring water, oil, air, and other compatible media.
Additional Information
| Weight | 0.13 kg |
|---|---|
| Dimensions | 6.6 × 2.2 cm |
