onsemi ASX340AT2C00XPED0-DRBR 5.6µm CMOS Image Sensor 728x560 IBGA-63
The onsemi ASX340AT2C00XPED0-DRBR is a 5.6µm pixel CMOS image sensor delivering a 728 x 560 (0.4MP) resolution in a compact IBGA-63 package. Designed for industrial-grade applications, it operates across a wide -40°C to 105°C temperature range and is suitable for integration into machine vision systems, embedded cameras, and automotive sensing modules.
Features
- 0.4 Megapixel CMOS Image Sensor with 728(H) x 560(V) active pixel resolution.
- 5.6µm x 5.6µm pixel size for balanced sensitivity and spatial resolution.
- Industrial temperature range operation from -40°C to +105°C.

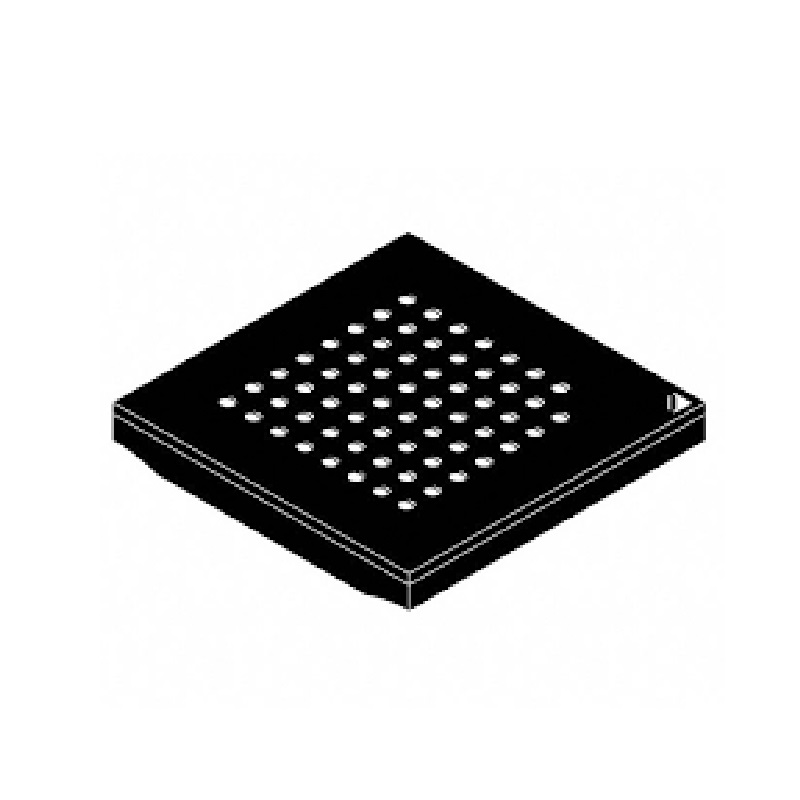

- Compact 63-ball IBGA (Image Sensor Ball Grid Array) package.
- Typical power consumption of 291 mW for efficient operation.
Out of stock
The ASX340AT2C00XPED0-DRBR from onsemi is a robust CMOS image sensor engineered for demanding visual sensing applications. Its 5.6µm pixel architecture provides a solid balance between light sensitivity and image detail, making it suitable for environments with variable lighting conditions. The sensor outputs a digital image stream that can be processed for machine vision, object detection, and quality inspection tasks.
Housed in an IBGA-63 package, this sensor is designed for direct surface-mount assembly onto system PCBs, facilitating compact camera module designs. Its extended operating temperature range ensures reliable performance in industrial automation, automotive driver assistance systems, and outdoor security devices where thermal stability is critical.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
