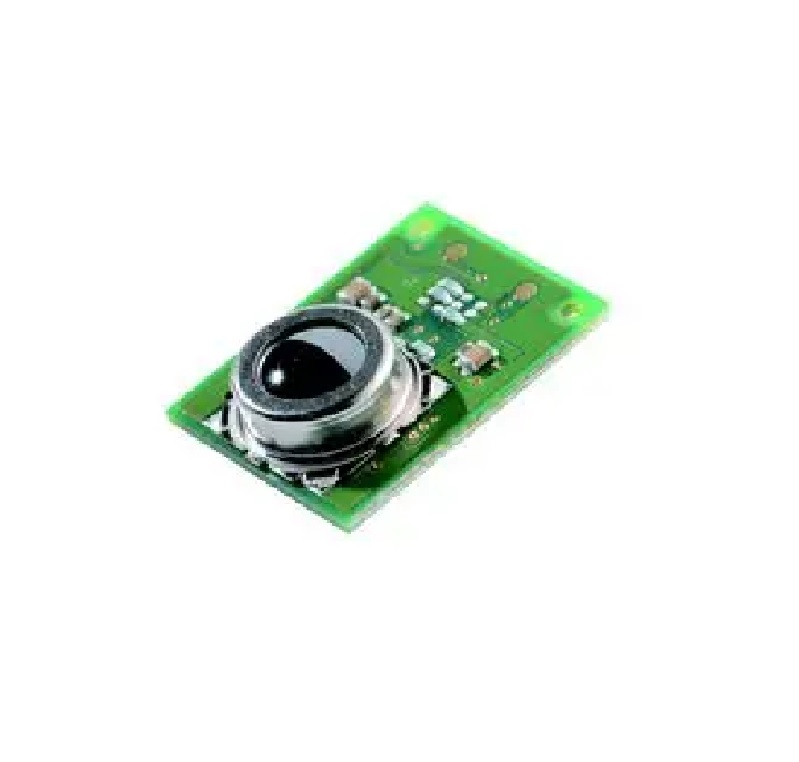

Omron D6T-44L-06H Thermal IR Sensor, 5-200°C Detection Range, I2C Interface
The Omron D6T-44L-06H is a MEMS-based thermal infrared sensor module featuring a 4×4 (16-element) pixel array for non-contact temperature mapping. It communicates via I2C and is compatible with 3.3V/5V microcontrollers like Arduino, Raspberry Pi, and ESP32, offering a detection range from 5°C to 200°C.
Features
- 16-element (4×4) MEMS thermopile array for thermal imaging
- Non-contact temperature detection range from 5°C to 200°C
- Standard I2C digital communication interface
- Wide 44.2° x 45.7° field of view
- Compact 14mm x 18mm surface-mount package
Out of stock
The Omron D6T-44L-06H is a thermal infrared sensor that detects object surface temperature by measuring far-infrared radiation energy using a MEMS thermopile array. Its sensitivity is wavelength-independent, allowing stable detection across near, mid, and far IR bands without requiring active cooling. The sensor outputs a 16-point temperature Matrix via I2C, enabling simple integration for spatial thermal profiling.
Designed for surface-mount assembly, the module operates within a reference temperature range of 5°C to 45°C for accurate ambient compensation. Its non-contact principle ensures no physical interference with the target, making it suitable for applications requiring hygiene or where contact is impractical.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 1.8 × 1.4 cm |
