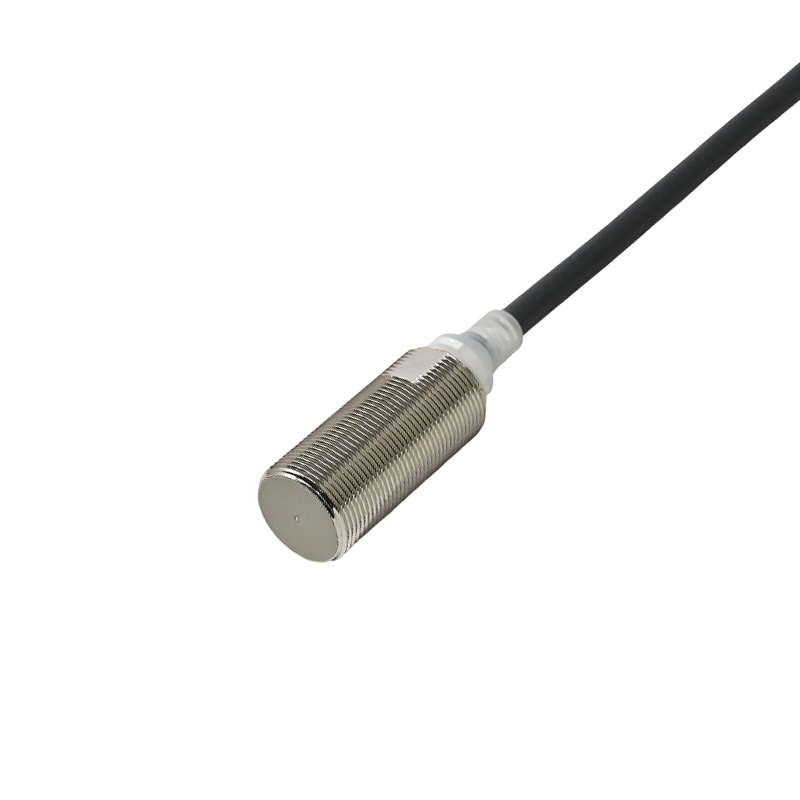

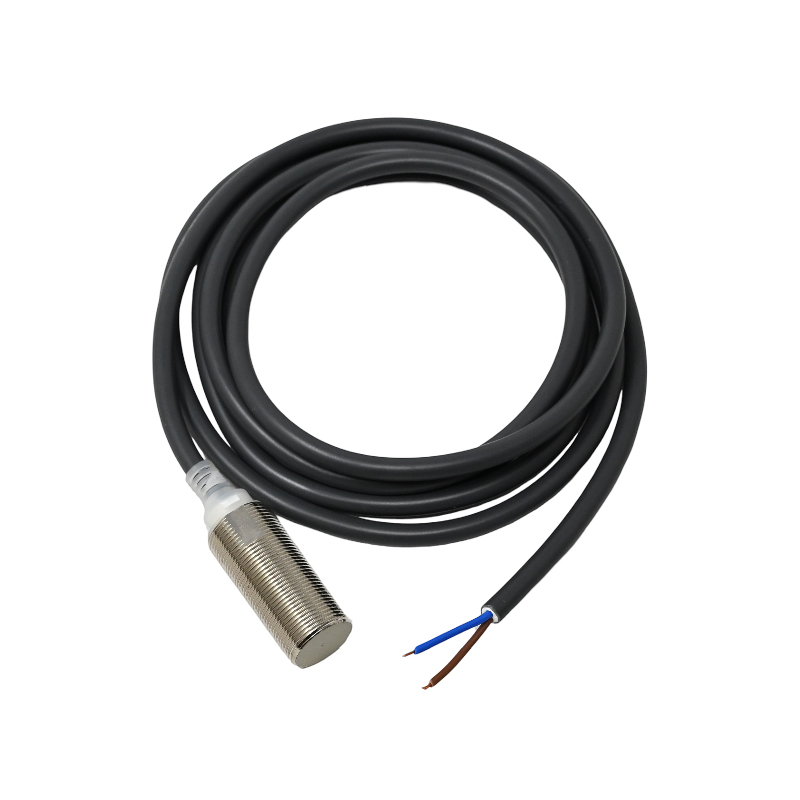

Omron E2E-X7D2-N Proximity Sensor, 2M Cable - 7mm Sensing, 12-24VDC

The E2E-X7D2-N is a shielded inductive proximity sensor. It generates an electromagnetic field and detects changes caused by the presence of ferrous (iron-based) metals. It is specifically designed for detecting steel, iron, and other magnetic metals, and will not reliably detect non-ferrous metals like aluminum, brass, or copper.

The 'Detection Distance' (7mm ±10%) is the nominal or standard sensing distance under ideal conditions. The 'Setting Distance' (0 to 5.6mm) is the recommended installation gap between the sensor face and the target to ensure reliable operation, accounting for real-world factors like temperature drift and target material variations. For stable operation, install the sensor within this 5.6mm setting distance.

This sensor has an NPN (sinking) output. Connect the brown wire to your DC positive supply (12-24VDC), the blue wire to DC negative (0V), and the black wire is the switched output. The black wire will connect to your PLC's digital input. The PLC input must be configured to source current, as the sensor sinks current to ground when activated. Always refer to the datasheet for the exact wiring diagram.

The self-diagnostic function monitors the sensor's internal operating state. If a failure is detected (e.g., sensor head contamination, extreme temperature, or internal circuit fault), or if the sensing stability is compromised, the output signal will change to a specific pattern (often a pulsed output) to alert the control system. This enables predictive maintenance and helps prevent unexpected machine stoppages.

Yes, the sensor is designed with a sealed housing and features an oil-resistant polyurethane (PUR) cable, making it suitable for environments where exposure to cutting oils, coolants, or light moisture is expected. However, it is not submersible. For specific IP ratings and chemical resistance details, please consult the official Omron datasheet.
