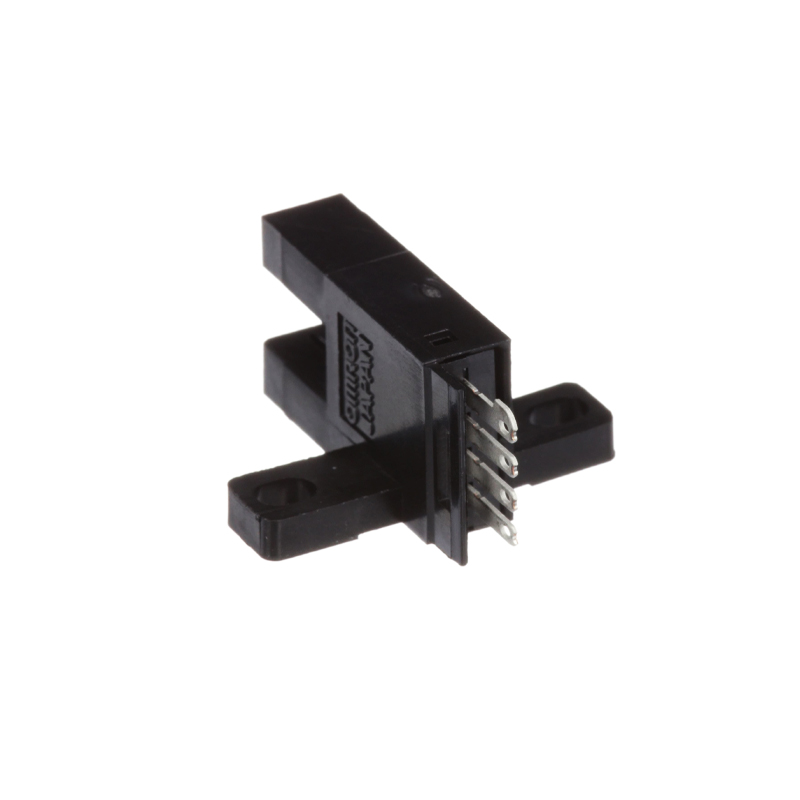

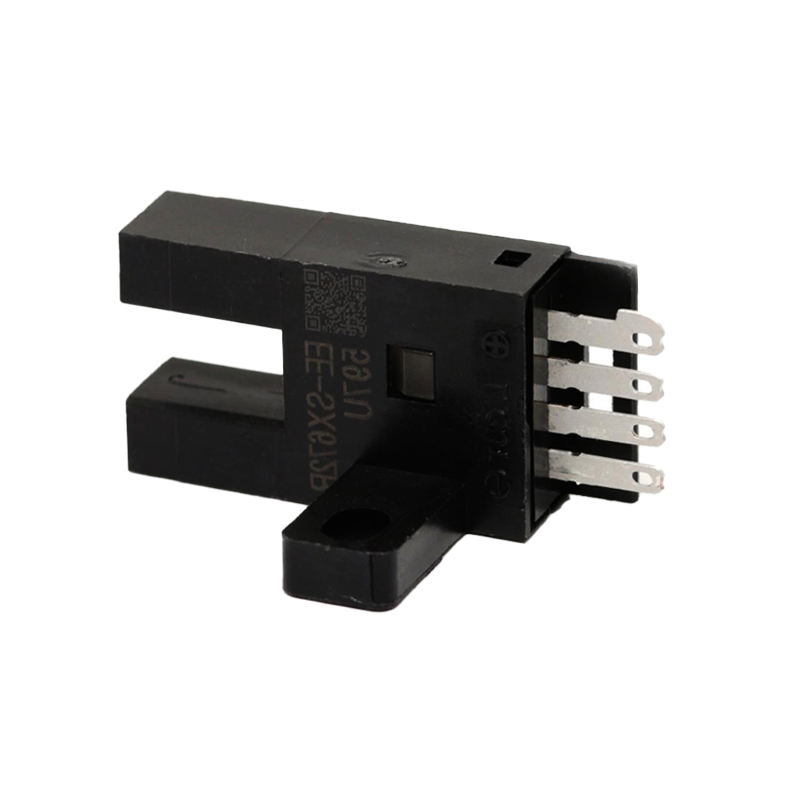

Omron EE-SX672P Optical Slot Sensor, Photomicrosensor, PNP Open-Collector Output, 940nm, 3kHz, 5~24 VDC, Sensing Distance 5 mm
The Omron EE-SX672P is a compact slot-type photomicrosensor designed for high-speed object detection in automation and positioning systems. It features a 5 mm sensing slot, a 940 nm infrared LED source, and a PNP open-collector output compatible with 5-24 VDC industrial PLCs and controllers.
Features
- Slot-type optical sensor with a 5 mm sensing gap for precise object detection.
- Detects opaque objects as small as 2.0 mm × 0.8 mm with high reliability.
- High-speed response up to 3 kHz for fast-moving automation applications.
- Wide operating voltage range from 5 to 24 VDC with short-circuit protection.
- Durable construction with IP50 rating for use in industrial environments.
Out of stock
The Omron EE-SX672P photomicrosensor operates on the principle of infrared light interruption. An internal 940 nm LED emitter faces a phototransistor receiver across a 5 mm slot. When an opaque object passes through the slot, it interrupts the beam, causing the PNP open-collector output to switch states, providing a clear digital signal for object presence.
Built with a rugged housing of polybutylene phthalate (PBT) and polycarbonate (PC), the sensor is designed to withstand industrial conditions, including shock and vibration. Its wide operating temperature range of -25°C to +55°C and IP50 protection rating ensure stable performance in challenging automation, packaging, and assembly line applications.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 3 × 3 × 1.3 cm |
