Omron E3FA-TN11 Through-Beam Photoelectric Sensor, 2m Cable, NPN Open-Collector, 10-30VDC, IP67/IP69K, Detection Range: 20 m

Name: Omron E3FA-TN11 Through-Beam Photoelectric Sensor, 2m Cable, NPN Open-Collector, 10-30VDC, IP67/IP69K, Detection Range: 20 m
Brand: Omron
SKU: SENS-1666
Price: 2419.00 INR
Availability: OutOfStock

₹2,419.00 (Inclusive of all taxes)

Out of Stock

The Omron E3FA-TN11 is a high-performance through-beam photoelectric sensor with a 20-meter detection range, designed for industrial automation. It features an NPN open-collector output compatible with 10-30VDC PLCs and control systems, and its IP67/IP69K-rated housing ensures reliable operation in harsh, washdown environments.

Features

20-meter long-range through-beam detection for reliable object sensing.
NPN open-collector output compatible with 10-30VDC industrial PLCs and controllers.
IP67/IP69K-rated housing for durability in harsh, washdown environments.
Wide operating temperature range from -40°C to +85°C for extreme conditions.
Compact 37mm x 21mm form factor with 2-meter integrated cable for flexible mounting.

Out of stock

Get Notified When Available

Description

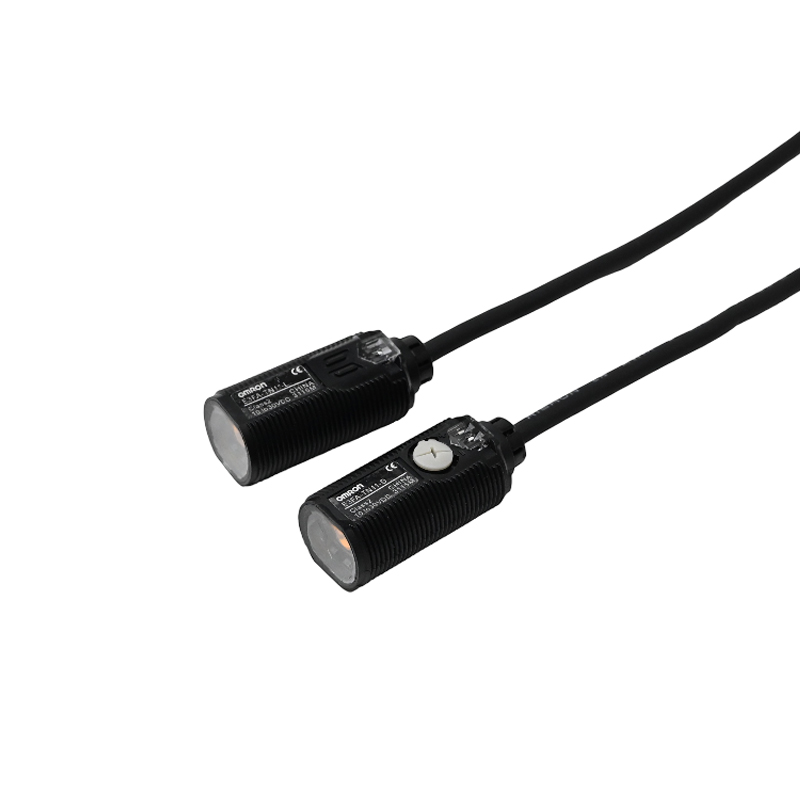

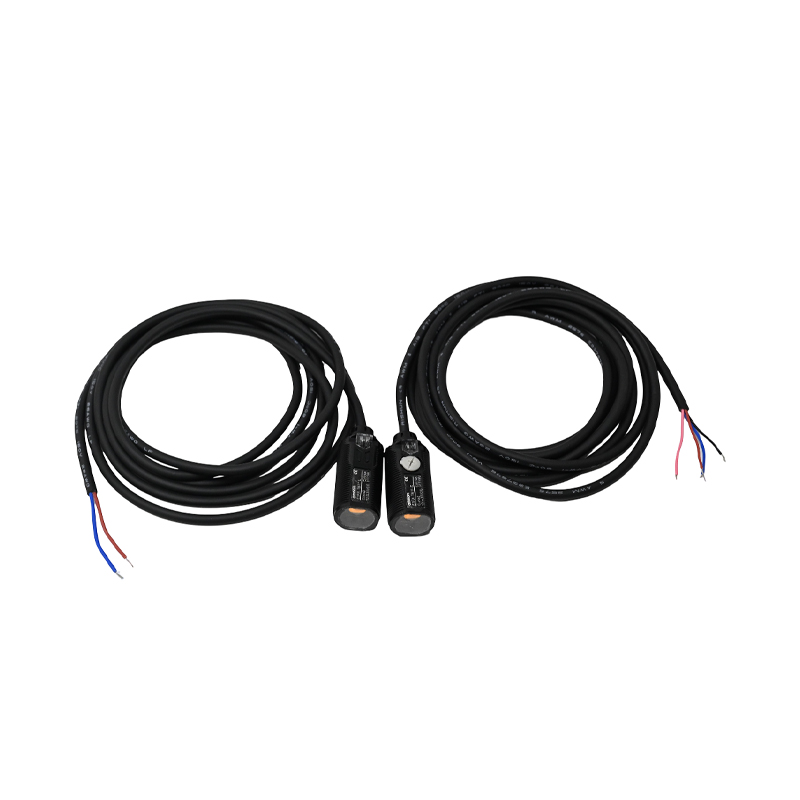

The Omron E3FA-TN11 utilizes a precise through-beam photoelectric sensing principle, where a separate emitter and receiver pair detect object presence by beam interruption. This method provides high reliability and immunity to target surface color or reflectivity variations. The sensor’s integrated signal conditioning delivers a clean, fast NPN switching output with a 0.5ms response time for high-speed automation applications.

Engineered for industrial durability, the sensor’s housing meets both IP67 and IP69K standards, offering protection against dust, high-pressure water jets, and steam cleaning. Its extended operating temperature range from -40°C to +85°C ensures stable performance in freezer warehouses, foundries, and outdoor installations, making it a robust solution for packaging, material handling, and safety light curtain applications.

Key Features

Long-Range Precision: 20-meter sensing distance enables reliable detection in large-scale automation setups.
Industrial-Grade Output: NPN open-collector output interfaces seamlessly with standard PLCs, relays, and microcontrollers.
Extreme Environment Rated: IP67/IP69K sealing and a -40°C to +85°C operating range guarantee performance in washdown and outdoor applications.
Fast Response Time: 0.5ms switching speed supports high-speed production line and conveyor belt monitoring.
Compact & Flexible Installation: Small 37mm x 21mm body with a fixed 2-meter cable simplifies mounting in space-constrained areas.
High-Value Build: Omron's E2E series reliability ensures long-term stability and reduced maintenance in demanding industrial cycles.
Red LED Source: 624nm visible red light beam simplifies alignment and troubleshooting during setup.
RoHS Compliant: Manufactured with environmentally safe materials, meeting global regulatory standards.

Applications

Conveyor belt object detection and counting in packaging and sorting facilities.
Safety light curtain and presence sensing for automated machinery and robotic cells.
Long-range detection in warehouse automated storage and retrieval systems (AS/RS).
Package presence verification on high-speed bottling and canning production lines.
Material handling and palletizing systems in harsh, washdown food & beverage environments.

Technical Specifications

Manufacturer Part Number	E3FA-TN11
Detection Principle	Through-Beam
Sensing Distance	20 m
Light Source	Red LED (624 nm)
Output Type	NPN Open-Collector
Supply Voltage	10–30 VDC
Response Time	0.5 ms
Protection Rating	IP67 / IP69K
Operating Temperature	-40°C to +85°C
Housing Material	Plastic (PBT)
Cable Length	2 m
Dimensions (W x H)	37 mm x 21 mm
Weight (approx.)	99 g

Frequently Asked Questions

What is the wiring configuration for the NPN output on the E3FA-TN11?

The NPN open-collector output has three wires: Brown (V+), Blue (V- / GND), and Black (Output). The Black output wire switches to GND (sinks current) when an object is detected. Always connect a pull-up resistor between the Black output wire and your positive supply voltage if interfacing with a microcontroller or PLC input expecting a high-level signal.

Can this sensor be used in outdoor or wet environments?

Yes, the Omron E3FA-TN11 is rated IP67 (dust-tight and protected against temporary immersion) and IP69K (protected against high-pressure, high-temperature water jets). This dual rating makes it suitable for outdoor installations, food processing washdown areas, and other harsh industrial environments where exposure to water, dust, and cleaning chemicals is common.

What is the maximum switching speed or response time?

The sensor has a fast response time of 0.5 milliseconds. This allows it to reliably detect objects on high-speed conveyor belts or in rapid indexing applications. The through-beam design inherently provides excellent immunity to background light and target surface variations, ensuring consistent high-speed operation.

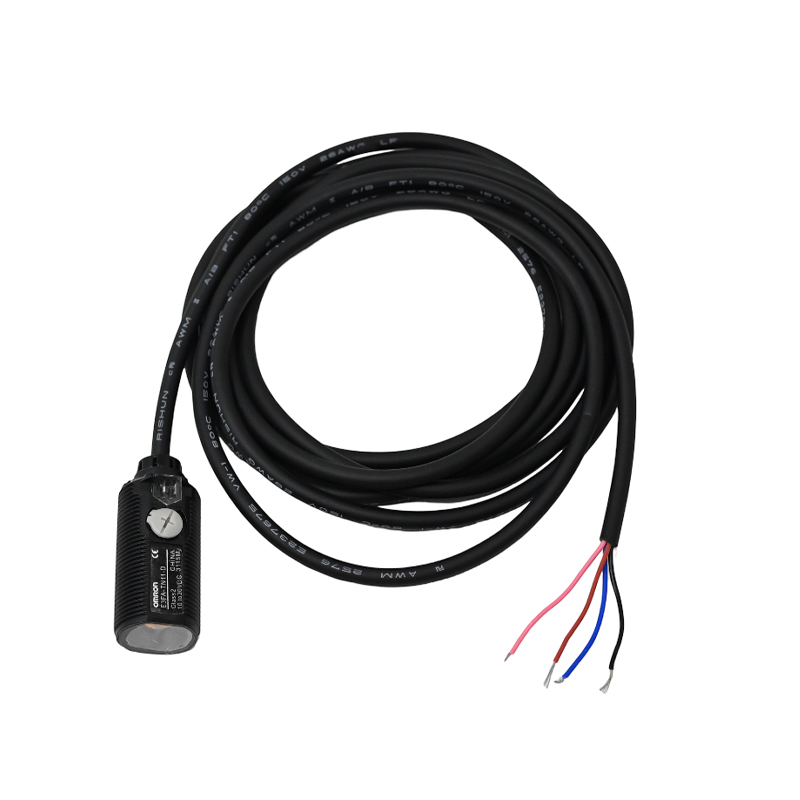

Does the 2-meter cable have a standard connector, or is it hard-wired?

The sensor comes with a fixed, integrated 2-meter cable without a standard quick-disconnect connector. The cable is terminated with bare wires (Brown, Blue, Black) for direct connection to your control system terminal blocks or a mating cable harness. This design enhances environmental sealing compared to connectorized versions.
