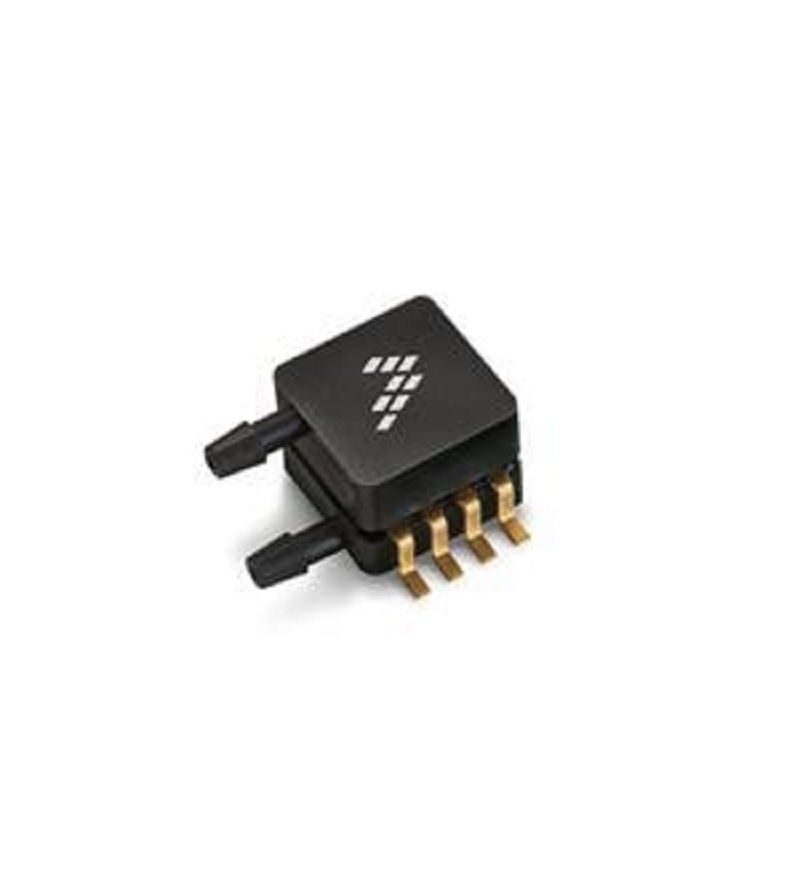

NXP Semiconductors MP3V5004DP Pressure Sensor, 0-3.92 kPa Range, Analog Voltage Output, SOP-8 Package
The NXP Semiconductors MP3V5004DP is a silicon piezoresistive MEMS pressure sensor delivering an analog voltage output for gauge pressure measurement from 0 to 3.92 kPa. Operating from a 2.7V to 3.3V supply, it is designed for integration into low-pressure sensing systems, medical devices, HVAC controls, and industrial applications requiring a compact SOP-8 package.
Features
- Silicon piezoresistive MEMS sensor for precise low-pressure measurement.
- Analog voltage output simplifies interface with microcontrollers and ADCs.
- Compact SOP-8 surface-mount package for space-constrained designs.
- Wide operating temperature range from 0°C to +85°C.
- Optimized for 3.3V logic systems with a 2.7V to 3.3V supply range.
Out of stock
The MP3V5004DP from NXP Semiconductors is a gauge pressure sensor based on a micromachined silicon piezoresistive sensing element. This MEMS technology provides a stable analog voltage signal proportional to the applied differential pressure, referenced to atmospheric pressure. The sensor is calibrated and temperature compensated for reliable performance across its specified operating range.
Housed in a standard SOP-8 package, it is suitable for automated PCB assembly. The device is engineered for applications requiring accurate monitoring of very low pressures, such as in ventilation systems, medical respiratory equipment, and industrial pressure switches, where its small footprint and direct analog interface offer significant design advantages.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
