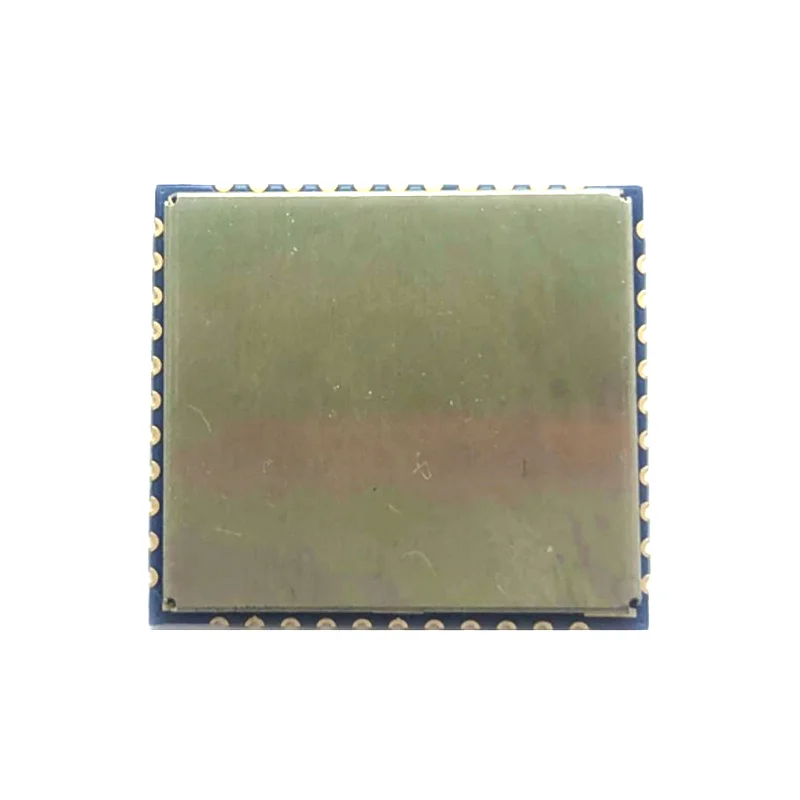

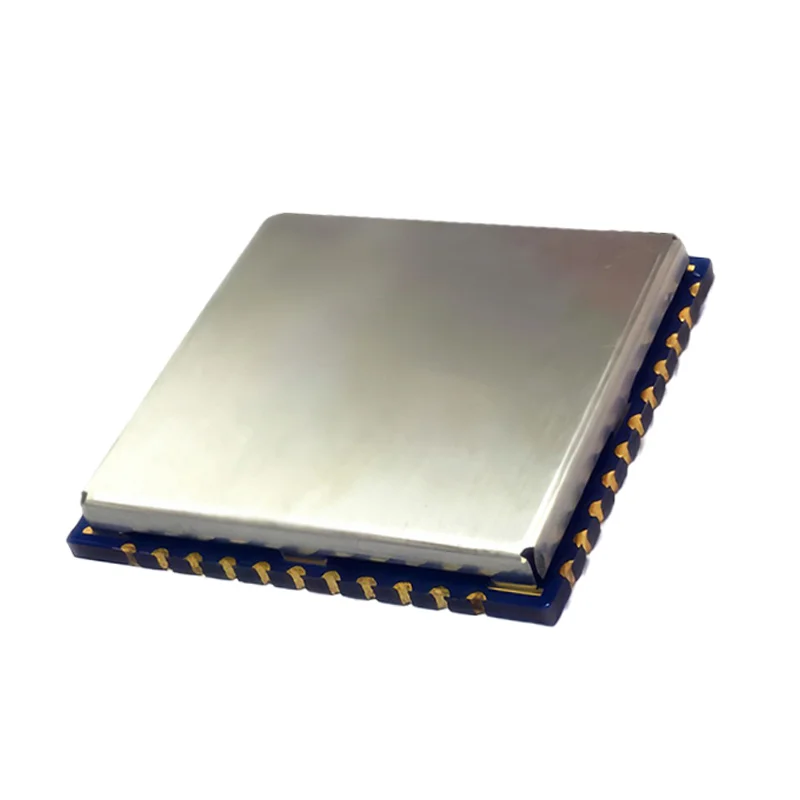

Reyax RYRR50S 13.56MHz RFID & NFC Module
The Reyax RYRR50S is a fully integrated 13.56MHz RFID and NFC module built around an NXP Semiconductors NFC/RFID engine, offering multiprotocol support for card reading, writing, and emulation. It operates from 1.8V to 3.8V and communicates via UART at baud rates from 9600 to 115200 bps, making it ideal for embedded proximity identification systems.
Features
- Multiprotocol 13.56MHz RFID/NFC module with an integrated NXP Semiconductors engine for robust card and tag communication.
- Supports ISO/IEC 14443 A/B, Mifare Classic/DESFire/Plus, ISO/IEC 15693, ICODE, and FeliCa (JIS X 6319-4).
- Features card emulation (ISO 14443 A), tag reader/writer, and optional peer-to-peer (P2P) NFC modes.
- Wide operating voltage range of 1.8V to 3.8V and a broad temperature range from -40°C to +85°C for industrial use.
- UART interface with configurable baud rates (9600-115200 bps) for easy integration with microcontrollers and SBCs.
Out of stock
The Reyax RYRR50S module is a comprehensive 13.56MHz RFID and NFC solution designed for embedded proximity and vicinity identification systems. Its core is powered by an NXP Semiconductors NFC/RFID engine, providing hardware-level support for a wide array of international standards, enabling seamless interaction with various card types and tags.
Engineered for reliability in demanding environments, the module operates across an extended industrial temperature range from -40°C to +85°C. Its flexible 1.8V to 3.8V power supply range allows for integration into both 3.3V and lower-voltage systems, while the UART serial interface simplifies firmware development and integration with platforms like Arduino, ESP32, or Raspberry Pi using AT commands or custom libraries.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
