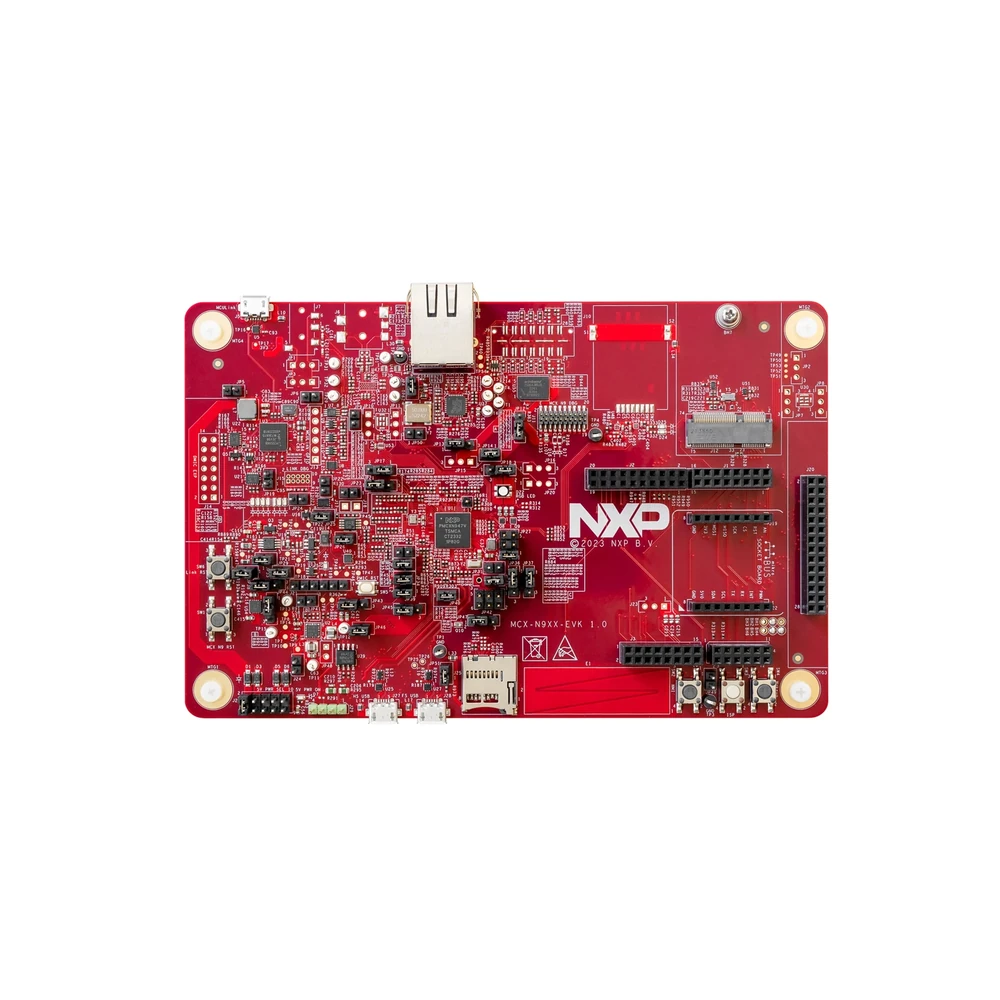

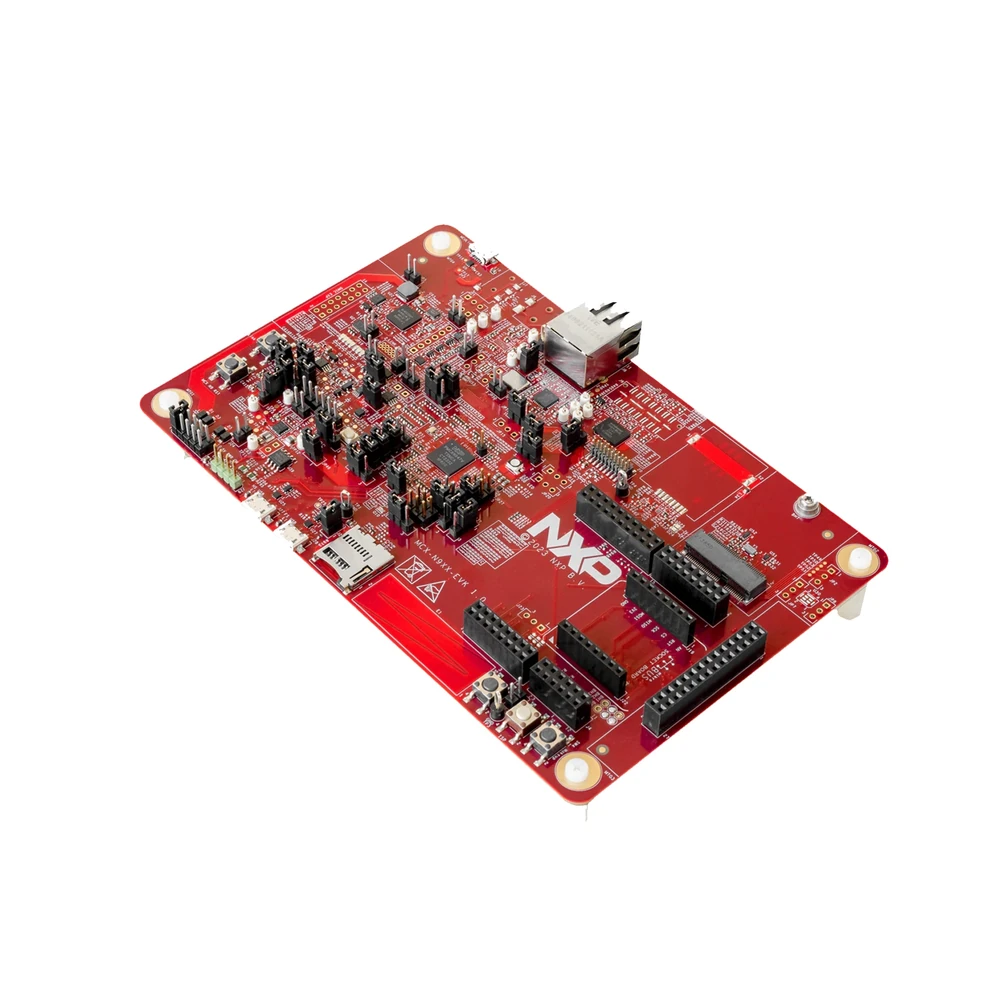

NXP Semiconductors MCX-N9XX-EVK MCXN94x Dual Cortex-M33 Evaluation Kit
The NXP Semiconductors MCX-N9XX-EVK Evaluation Kit is a comprehensive development platform featuring the MCX-N947 dual Arm Cortex-M33 microcontroller, designed for rapid prototyping and evaluation of the MCX N94, N54, N53, N52, and N24 series MCUs. It integrates an MCU-Link debugger and diverse expansion options for embedded applications.
Features
- Powered by NXP Semiconductors MCX-N947 dual Arm Cortex-M33 cores clocked at up to 150MHz each.
- Features up to 2MB dual-bank internal Flash with optional Full ECC RAM and 64Mbit QSPI Flash.
- Integrated MCU-Link debugger with built-in energy monitoring for efficient power analysis.
- Offers extensive connectivity including Ethernet, High-Speed USB, Full-Speed USB, and CAN.
- Flexible expansion via Arduino (FRDM), mikroBUS, PMOD, M.2, and FlexIO/LCD headers.
Out of stock
The NXP Semiconductors MCX-N9XX-EVK Evaluation Kit is a comprehensive development platform engineered for rapid prototyping and evaluation of the MCX N94, N54, N53, N52, and N24 series microcontrollers. At its core is the MCX-N947 microcontroller, featuring dual Arm Cortex-M33 cores operating at up to 150MHz each, which provides a balance of high performance and power efficiency suitable for industrial automation, IoT, smart sensing, and edge computing applications.
This kit integrates an on-board MCU-Link debugger with an advanced energy monitoring circuit, streamlining debugging and power optimization. It offers a rich set of connectivity options including Ethernet, High-Speed and Full-Speed USB, CAN, microSD card support, and a 64Mbit QSPI Flash. For enhanced versatility, the board includes multiple expansion interfaces such as Arduino (FRDM), mikroBUS, PMOD, FlexIO/LCD, and Tamper Pin headers, facilitating broad hardware development possibilities.
The MCX-N9XX-EVK also incorporates essential on-board sensors, including a temperature sensor, a 3-axis accelerometer, and an ambient light sensor, enabling rapid development of sensor-driven applications. Memory expansion is robust, supporting pSRAM, OctalFlash, HyperRAM, and microSD, all designed for seamless integration with the MCUXpresso Developer Experience.
Additional Information
| Weight | 0.65 kg |
|---|---|
| Dimensions | 28 × 20 × 10 cm |
