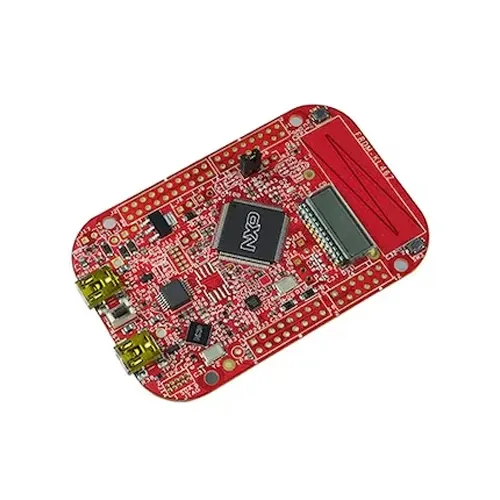

NXP Semiconductors FRDM-KL46Z Kinetis KL46 ARM Cortex-M0+ Dev Board

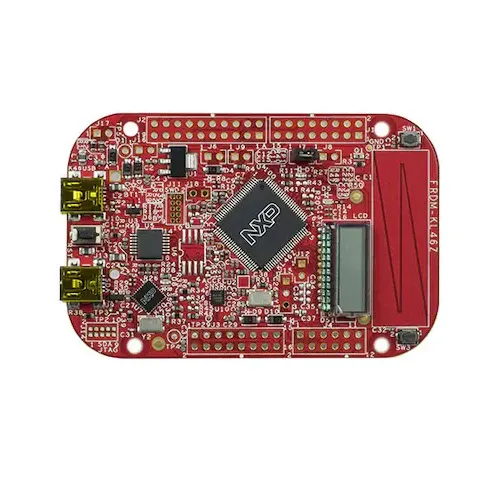

NXP Semiconductors FRDM-KL46Z Kinetis KL46 ARM Cortex-M0+ Dev Board - Image 2
SKU: SBCD-0005
📋 GST Invoice Available

NXP Semiconductors FRDM-KL46Z Kinetis KL46 ARM Cortex-M0+ Dev Board

₹6,089.00 (Inclusive of all taxes)
Out of Stock

The NXP Semiconductors FRDM-KL46Z Kinetis KL46 development board features an ARM Cortex-M0+ microcontroller (MKL46Z256VLL4) with 256KB Flash and 32KB SRAM, offering a low-power platform for embedded applications. It includes a capacitive touch slider and Arduino R3 compatible headers for versatile expansion.

Features

  • NXP Semiconductors Kinetis KL46 ARM Cortex-M0+ MCU (MKL46Z256VLL4)
  • 256KB Flash & 32KB SRAM for robust embedded code
  • Integrated capacitive touch slider, accelerometer, and magnetometer
  • Arduino R3 compatible headers for extensive shield compatibility
  • OpenSDA onboard debugger for streamlined programming and debug

Out of stock

Description

The NXP Semiconductors FRDM-KL46Z Kinetis KL3x/KL4x ARM Cortex-M0+ Development Board is a feature-rich evaluation platform designed for embedded development, rapid prototyping, and educational projects. Built around the powerful Kinetis KL46 microcontroller, it combines low-power performance with integrated peripherals to simplify application development.

The board includes a capacitive touch slider, accelerometer, magnetometer, ambient light sensor, and a 4-digit segment LCD for creating interactive embedded solutions. Arduino R3 compatible headers enable easy expansion with compatible shields, while the onboard OpenSDA interface supports hassle-free programming and debugging. It is suitable for IoT, sensing, industrial automation, and embedded system development.

Key Features

  • Powered by the NXP Semiconductors Kinetis KL46 ARM Cortex-M0+ microcontroller
  • Integrated capacitive touch slider for touch-based applications
  • Onboard 3-axis accelerometer for motion sensing
  • Built-in 3-axis magnetometer for orientation detection
  • 4-digit segment LCD for user interface development
  • Arduino R3 compatible headers for expansion shields
  • OpenSDA onboard debugger for easy programming and debugging
  • Supports USB connectivity with flexible power supply options

Applications

  • IoT gateways
  • Embedded sensing
  • Industrial automation
  • Human-machine interface (HMI) development
  • Rapid prototyping

Technical Specifications

Item TypeARM Cortex-M0+ Microcontroller Development Board
MicrocontrollerNXP Semiconductors MKL46Z256VLL4
Processor CoreARM Cortex-M0+
Maximum Clock Speed48 MHz
Flash Memory256 KB
SRAM32 KB
USB InterfaceMini-B USB (Full-Speed)
Debug InterfaceOpenSDA
Display4-Digit Segment LCD
AccelerometerMMA8451Q 3-Axis Digital Accelerometer
MagnetometerMAG3110 3D Digital Magnetometer
Touch InterfaceCapacitive Touch Slider
Ambient Light SensorOnboard Ambient Light Sensor
User LEDs2
User Buttons2 Push Buttons
Expansion HeadersArduino R3 Compatible
Programming InterfaceUSB Mass Storage
Power SupplyUSB, Coin Cell Battery, or External Source
Power MeasurementDedicated Measurement Access Points
Supported Kinetis SeriesKL46, KL36, KL26, and KL16

Frequently Asked Questions

What microcontroller powers the FRDM-KL46Z board?

The FRDM-KL46Z is powered by the NXP Semiconductors MKL46Z256VLL4 microcontroller, featuring an ARM Cortex-M0+ core clocked at up to 48 MHz. It integrates 256 KB of Flash memory and 32 KB of SRAM, making it suitable for a wide range of low-power embedded applications.

What debugging interface does the FRDM-KL46Z utilize?

The board features an onboard OpenSDA interface, which provides a flexible and powerful tool for programming and debugging the Kinetis microcontroller. OpenSDA supports various debugging protocols and allows for drag-and-drop programming via its USB Mass Storage device mode.

Is the FRDM-KL46Z compatible with Arduino shields?

Yes, the NXP Semiconductors FRDM-KL46Z board incorporates Arduino R3 compatible expansion headers. This allows developers to easily connect and integrate a vast ecosystem of Arduino shields, extending the board's functionality for diverse prototyping and application needs, from communication to motor control.

What onboard sensors are included with this development board?

The FRDM-KL46Z comes equipped with several integrated sensors for versatile applications. It includes a 3-axis digital accelerometer (MMA8451Q), a 3D digital magnetometer (MAG3110), an ambient light sensor, and a capacitive touch slider, enabling rich interactive and sensing projects.

Package Includes

  • 1 x NXP Semiconductors FRDM-KL46Z Kinetis KL3x/KL4x ARM Cortex-M0+ Development Board
  • 1 x Quick reference card
  • 1 x USB A-to-Mini B cable

Additional Information

Weight 0.019 kg
Dimensions 82.8 × 52.8 cm

Related Products

Out of Stock

NXP Semiconductors FRDM-MCXC041 Cortex-M0+ Development Kit

1,729.00
Learn More
Out of Stock

NXP Semiconductors FRDM-KE17Z512 ARM Cortex-M0+ Development Kit

6,279.00
Learn More
Out of Stock

NXP Semiconductors FRDM-KL28Z ARM Cortex-M0+ Evaluation Board

5,669.00
Learn More
Out of Stock

NXP Semiconductors LPC55S28-EVK Development Board

5,769.00
Learn More
Out of Stock

NXP Semiconductors FRDM-K66F Kinetis K66 ARM Cortex-M4 Dev Board w/ USB & Audio

13,649.00
Learn More
Out of Stock

NXP Semiconductors FRDM-IMX91 i.MX 91 Cortex-A55 Development Board

11,439.00
Learn More
Out of Stock

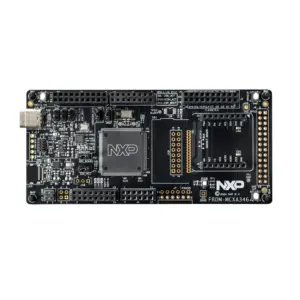

NXP Semiconductors FRDM-MCXA346 MCXA346VLQ ARM Cortex-M33F Dev Board
