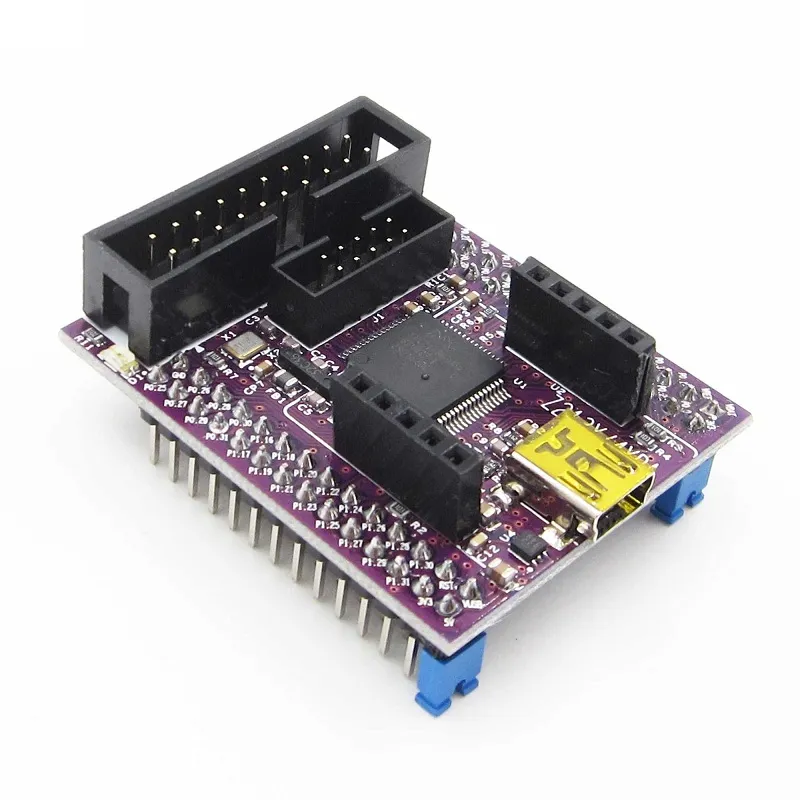

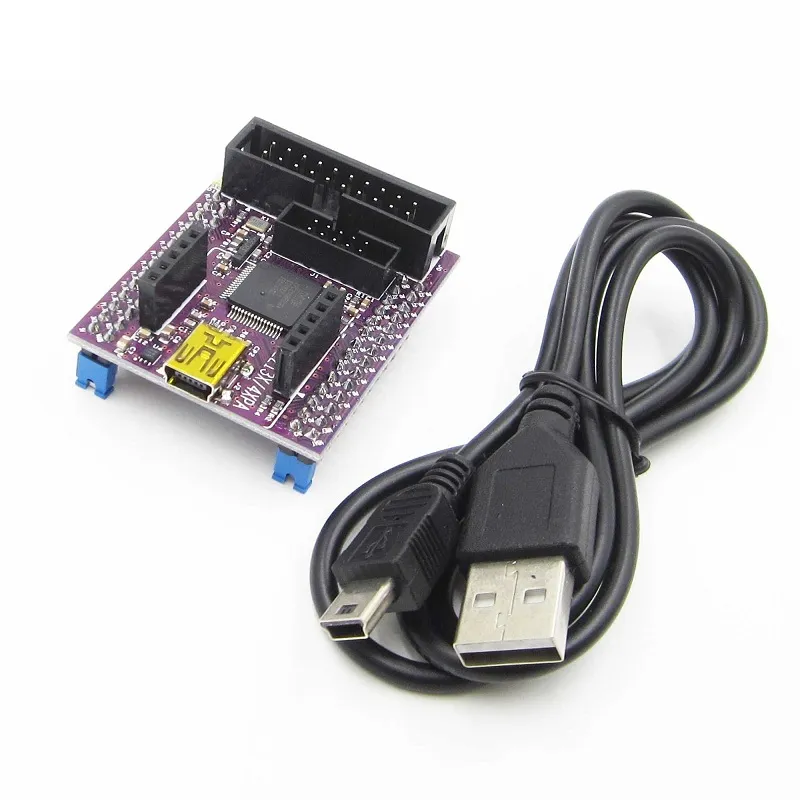

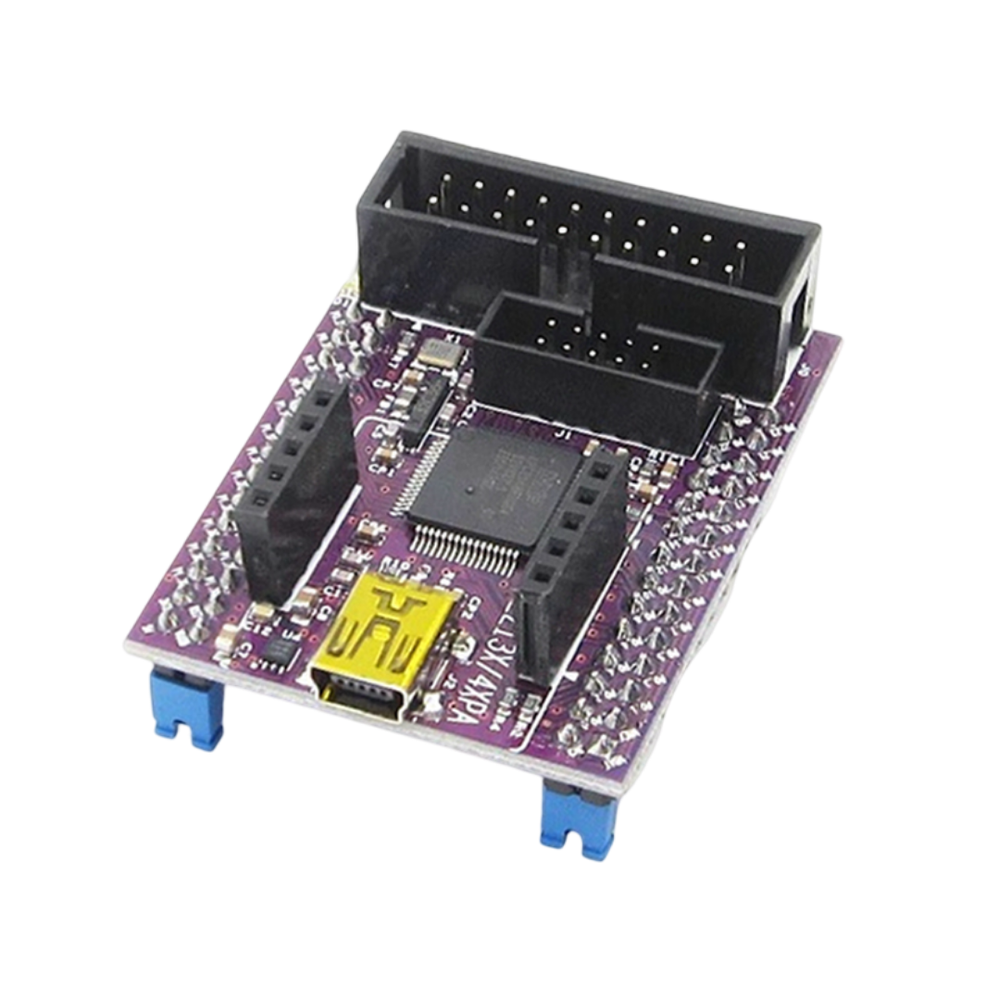

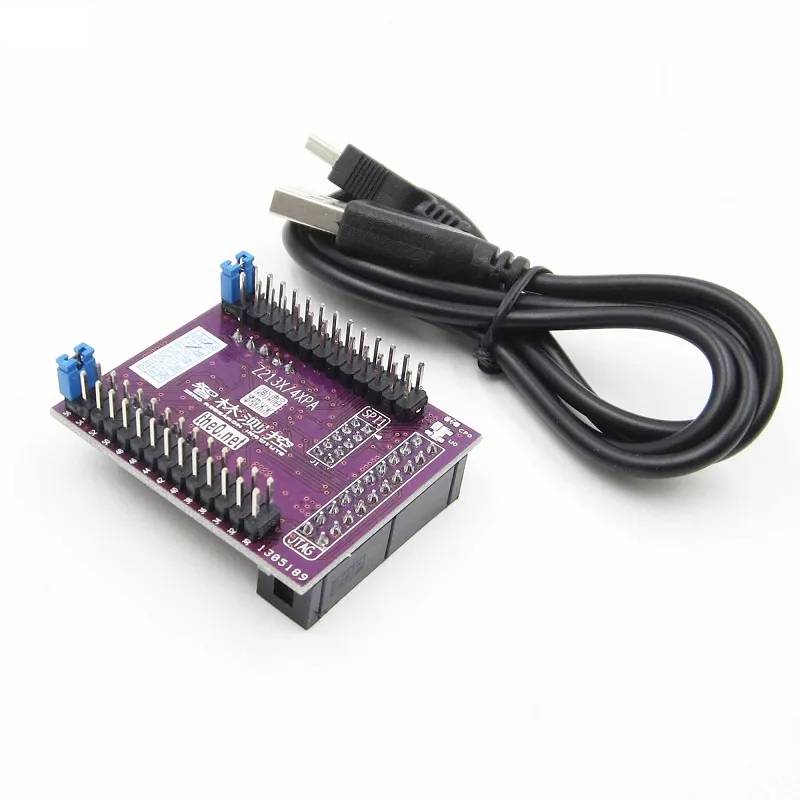

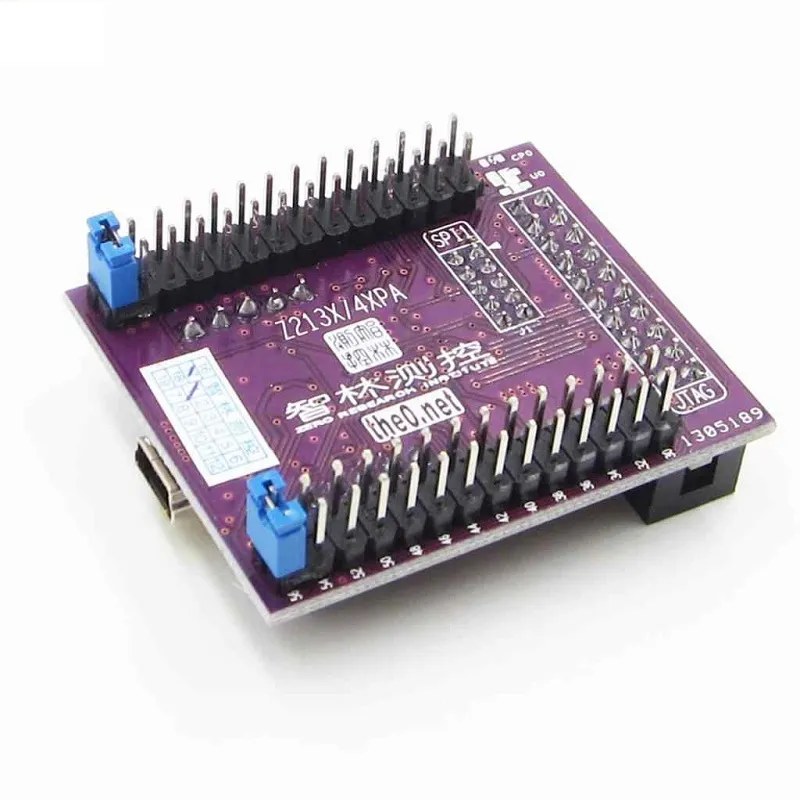

LPC2148 ARM7 Development Module Board
The LPC2148 Module Board features an ARM7TDMI-S microcontroller, offering a compact solution with 32 to 512 kB of on-chip flash memory and up to 40 kB of static RAM. It supports high-speed 60 MHz operations and In-System/In-Application Programming for efficient development.
Features
- Integrated 16/32-bit ARM7TDMI-S microcontroller in a compact LQFP64 package.
- Features 8 to 40 kB on-chip static RAM and 32 to 512 kB of high-speed flash program memory.
- Leverages a 128-bit wide memory interface for rapid 60 MHz operational speeds.
- Supports In-System/In-Application Programming (ISP/IAP) via an on-chip boot-loader.
- Enables fast flash operations with 400 ms full chip erase and 1 ms per 256 bytes programming time.
Out of stock
The LPC2148 microcontrollers integrate a 32/16-bit ARM7TDMI-S CPU, featuring real-time emulation and embedded trace support, along with 32 kB to 512 kB of high-speed on-chip flash memory. Its 128-bit wide memory interface and accelerator architecture facilitate 32-bit code execution at maximum clock rates. For code-size sensitive applications, the 16-bit Thumb mode significantly reduces code footprint with minimal performance impact.
Designed for applications demanding miniaturization and low power consumption, such as access control and point-of-sale systems, the LPC2148 series excels. Its comprehensive suite of serial communication interfaces, including USB 2.0 Full-Speed device, multiple UARTs, SPI, SSP, and I2C, coupled with 8 kB to 40 kB of on-chip SRAM, makes it ideal for communication gateways, protocol converters, and low-end imaging. Peripheral support includes various 32-bit timers, single or dual 10-bit ADCs, a 10-bit DAC, PWM channels, and 45 fast GPIO lines with external interrupt capabilities, making it highly suitable for industrial control and medical systems.
Additional Information
| Weight | 0.022 kg |
|---|---|
| Dimensions | 4.3 × 3.8 cm |
