NU200E18TR-1 18mm 200kHz Ultrasonic Distance Sensor
The NU200E18TR-1 is a compact 18mm piezoelectric ultrasonic transducer operating at 200kHz, designed for high-precision short to medium-range distance measurement and object detection. Its integrated transmit/receive functionality and robust aluminum housing ensure stable performance for integration into industrial automation, robotics, and embedded electronic systems.
Features
- High-Frequency 200kHz Operation: Delivers precise, high-resolution distance measurements with a narrow 7° beam angle for focused detection.

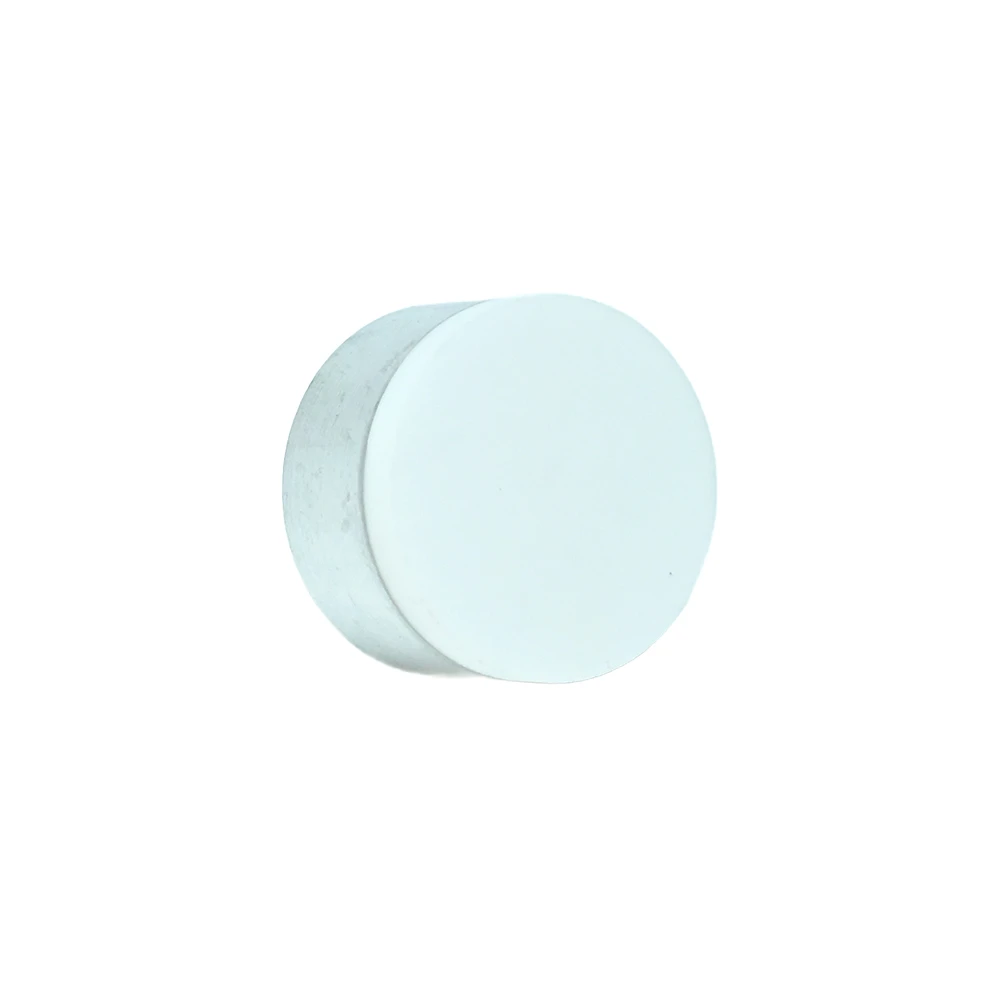

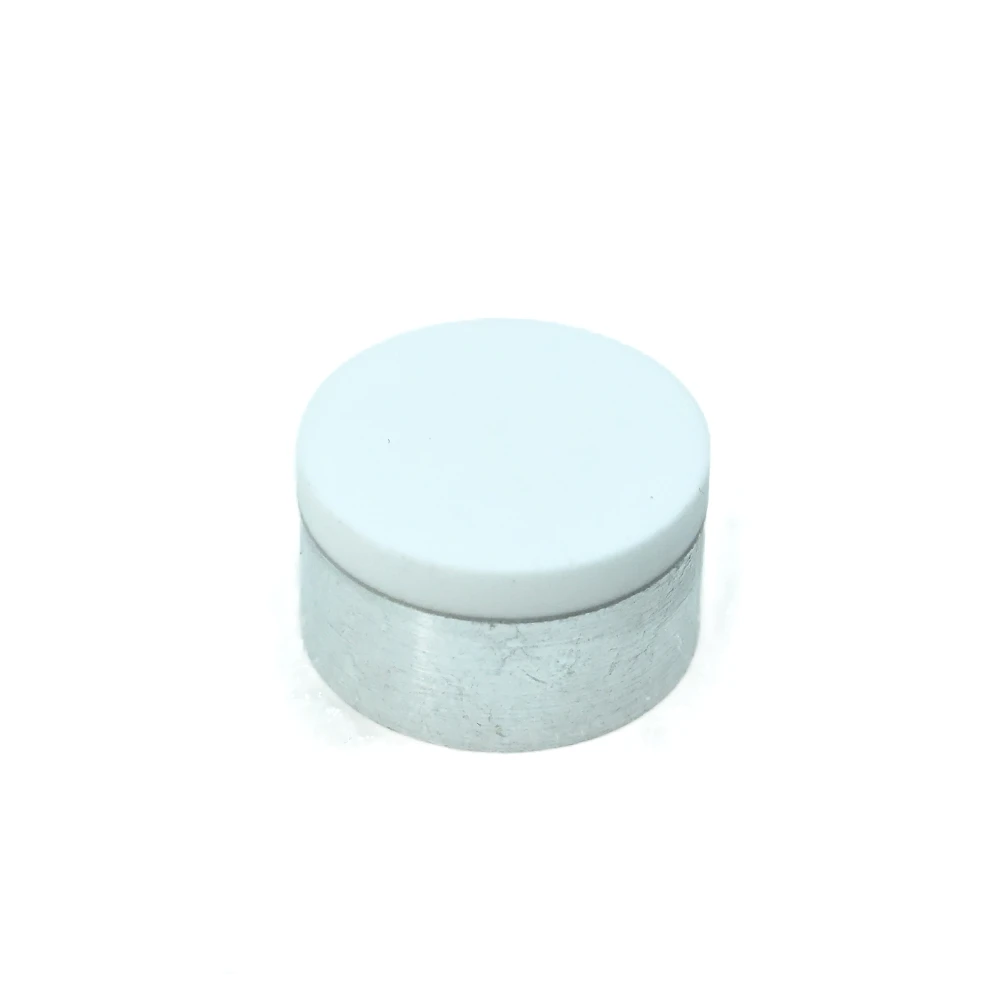

- Compact 18mm Diameter Design: Aluminum-housed transducer suitable for space-constrained installations and embedded system designs.
- Integrated Transmit/Receive Function: Combines transmitter and receiver in a single element for simplified system integration and wiring.
- Robust Industrial Performance: Operates reliably from -40°C to +80°C, providing stable output in challenging environmental conditions.
- Wide Detection Range: Accurately measures distances from 0.1 meters up to 2 meters for versatile application use.
Out of stock
The NU200E18TR-1 utilizes a piezoelectric ceramic element to generate and receive 200kHz ultrasonic waves. This high operating frequency enables excellent sensitivity to small distance changes and provides a narrow, focused beam pattern, minimizing interference from off-axis objects. The sensor’s combined transmit/receive mode simplifies driver circuit design by using a single transducer for both functions.

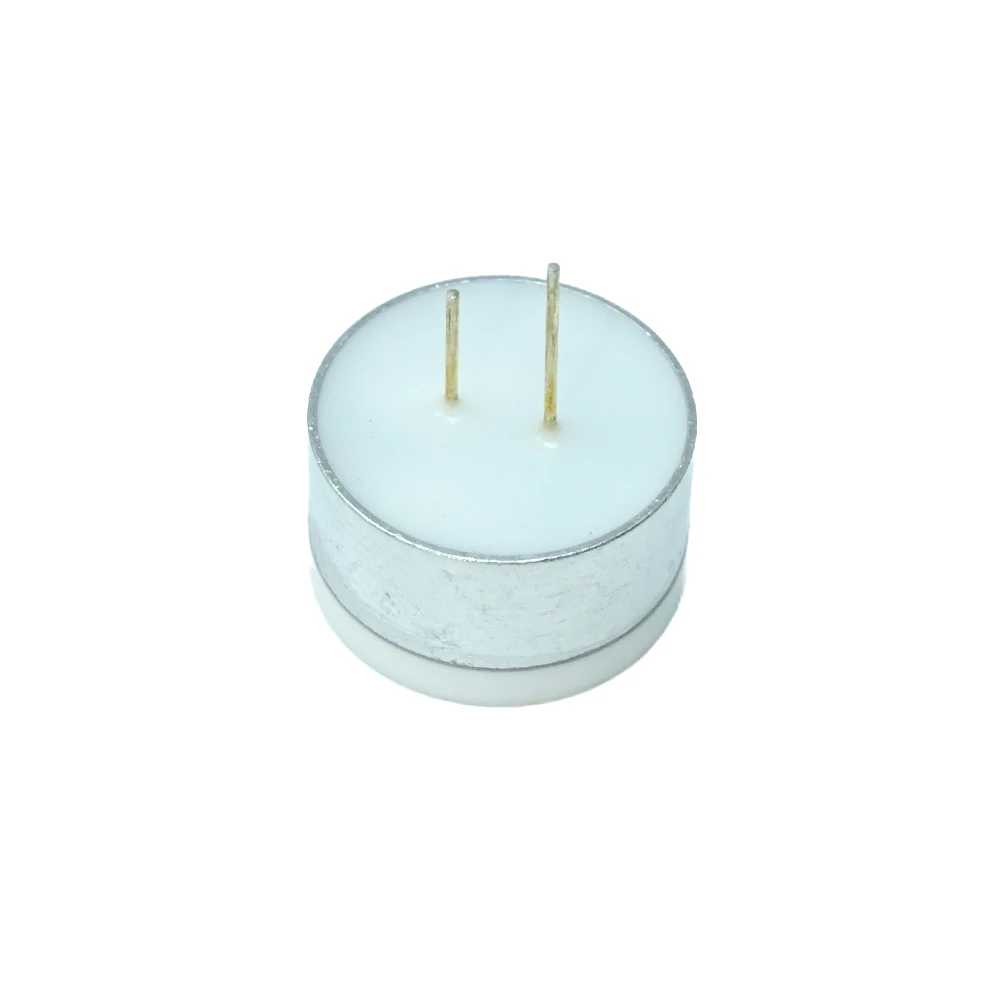

Housed in a durable aluminum casing, the transducer is built for long-term reliability in industrial settings. Its electrical characteristics, including a 400pF capacitance and tolerance for high input voltage pulses (500Vp-p), are optimized for compatibility with standard ultrasonic driver ICs and microcontroller-based systems, making it suitable for integration into automation, robotics, and precision measurement platforms.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 4 × 3 × 2 cm |
