QAWRUMS W800/1 Piezoelectric AE Sensor, >65dB, 600 KHz, -20℃~120℃, IP68, SUS-304, BNC
The QAWRUMS W800/1 is a high-performance, wideband piezoelectric acoustic emission (AE) sensor designed for structural health monitoring in industrial and laboratory environments. Featuring a rugged SUS-304 stainless steel housing with IP68 waterproof protection, it delivers a flat frequency response up to 800 kHz and high sensitivity (>65 dB) for detecting micro-fractures, crack propagation, and pressure fluctuations in metals, composites, and pipelines.
Features
- High-sensitivity piezoelectric AE sensor with >65 dB output for detecting micro-cracks and structural defects.
- Wideband frequency response from 50 kHz to 800 kHz with a resonant peak at 600 kHz for precise acoustic emission analysis.

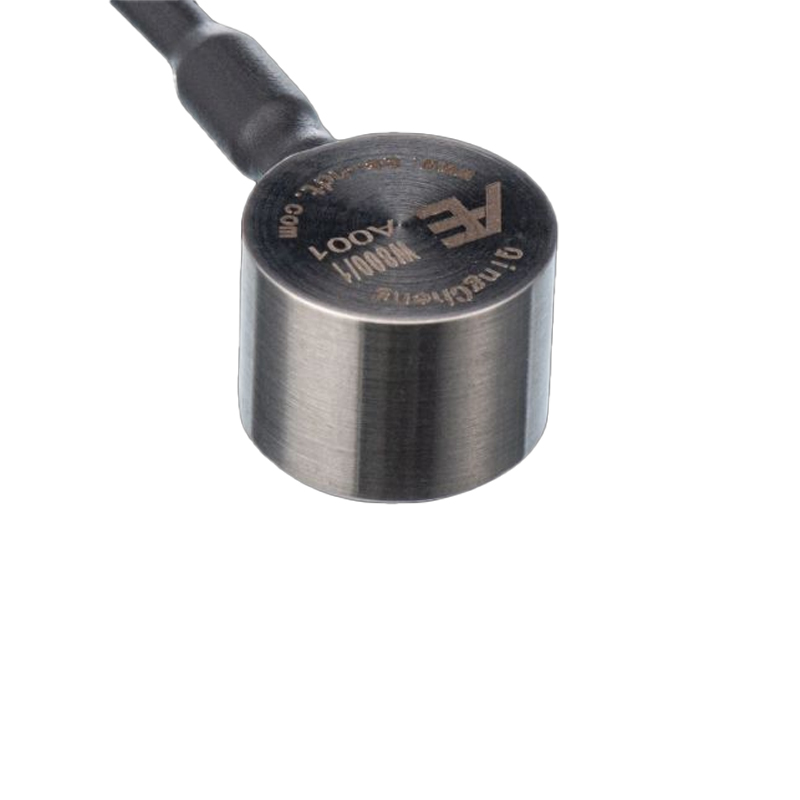

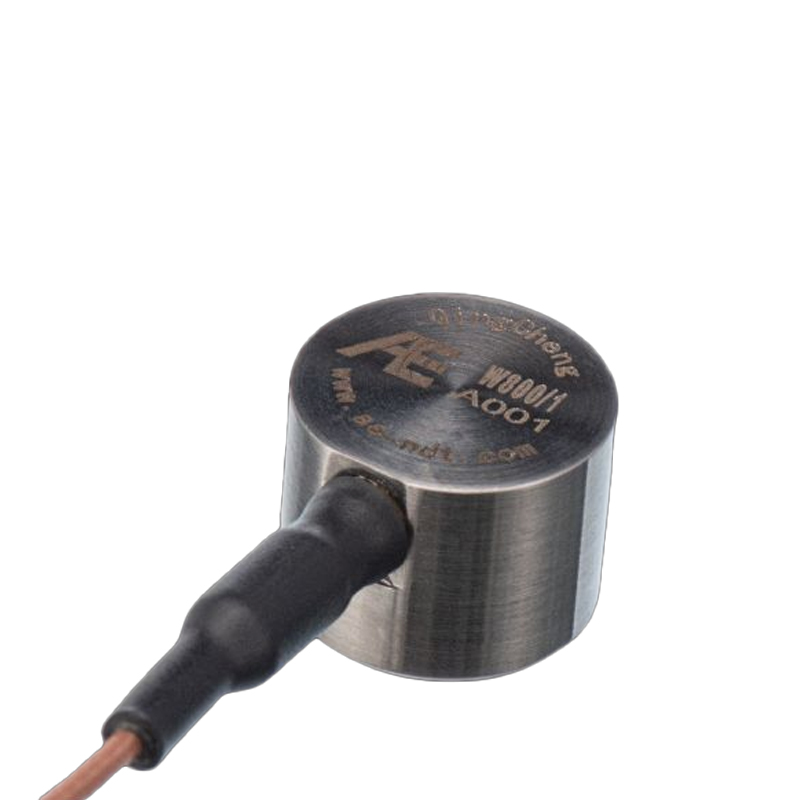

- Rugged IP68 waterproof SUS-304 stainless steel housing ensures reliable operation in harsh industrial environments.

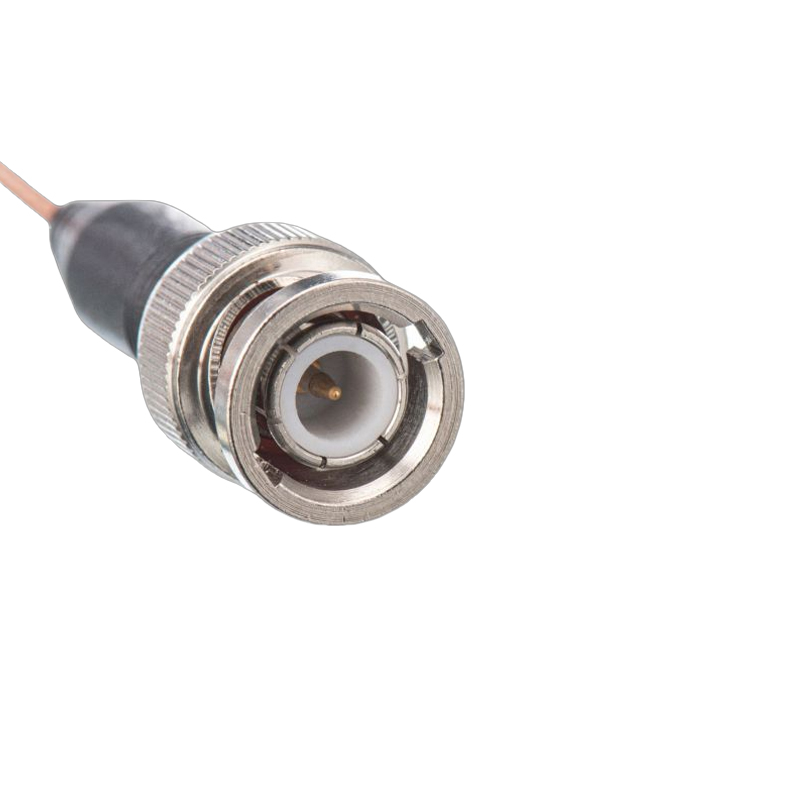

- Integrated BNC connector on a fixed cable provides a robust, low-noise signal interface for data acquisition systems.
- Extended operating temperature range from -20°C to 120°C suitable for high-temperature process monitoring and outdoor applications.
Out of stock
The QAWRUMS W800/1 utilizes a passive piezoelectric sensing element with a ceramic face to convert high-frequency stress waves (acoustic emissions) into measurable electrical signals. This design provides a flat frequency response across its operational bandwidth, ensuring consistent signal fidelity for time-domain and frequency-domain analysis of structural integrity.

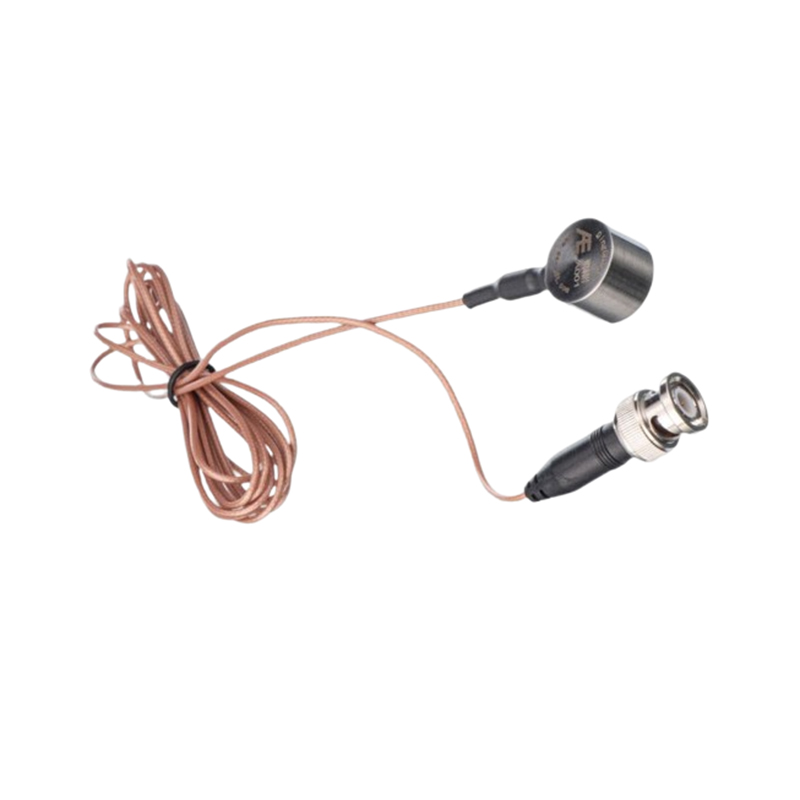

Engineered for durability, the sensor’s SUS-304 stainless steel body and IP68 ingress protection rating make it suitable for deployment in demanding conditions, including wet, dusty, or corrosive industrial settings. The integral cable with a BNC connector offers a secure, industry-standard interface compatible with most data acquisition systems, oscilloscopes, and AE preamplifiers.
Additional Information
| Weight | 0.045 kg |
|---|---|
| Dimensions | 1.9 cm |
