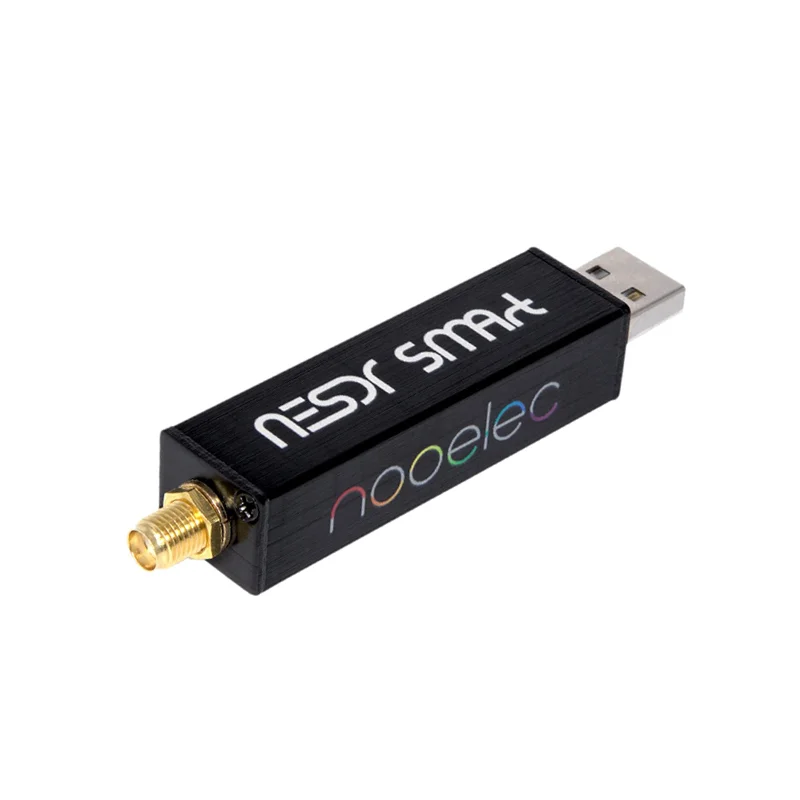

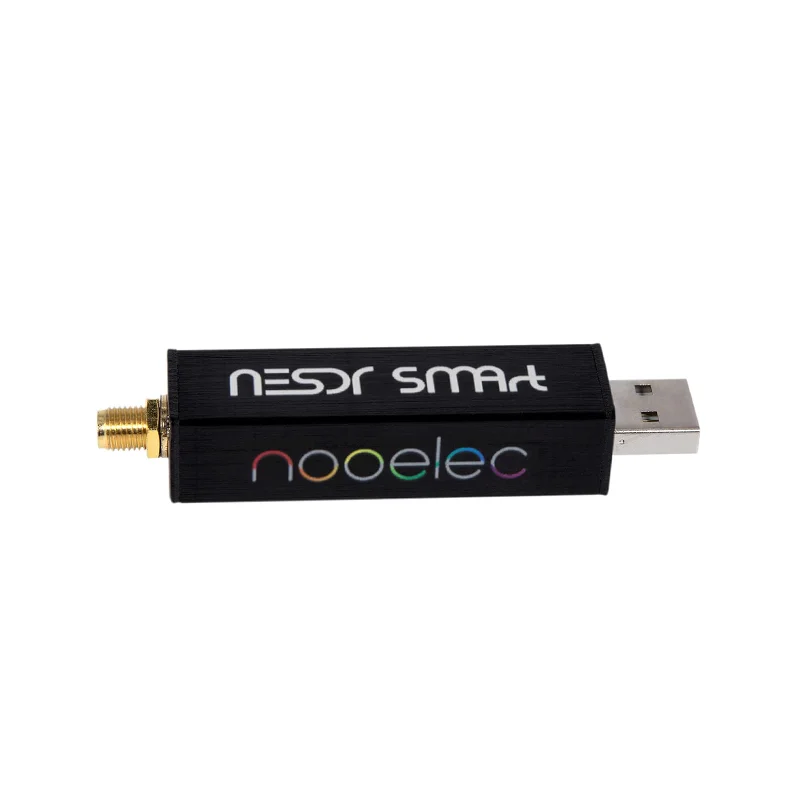

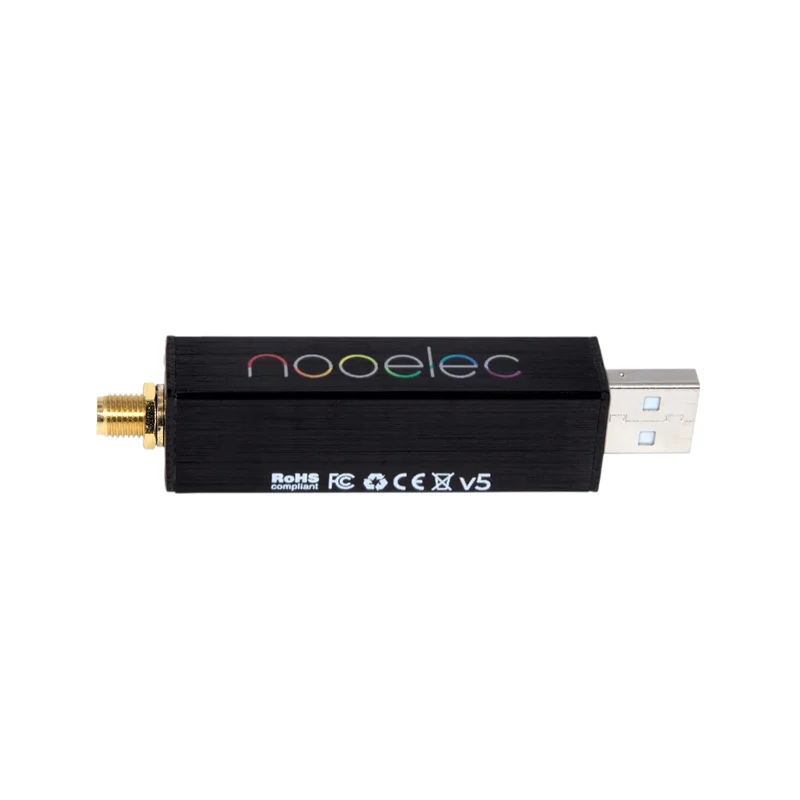

Nooelec NESDR SMArt HF Bundle: 100kHz-1.7GHz SDR Receiver

The SDR is compatible with popular software like SDR#, GQRX, CubicSDR, and HDSDR on Windows, Linux, and macOS. For Android, you can use apps like SDR Touch. You'll need to install the appropriate USB drivers for your operating system, which are typically provided by the software community or Nooelec's support resources, before the device will be recognized as an RF source.

Connect your antenna to the SMA female port on the SDR dongle using a cable with an SMA male connector. Antenna choice depends on your target frequency: a discone or wideband antenna is good for general scanning, a V-dipole is excellent for NOAA satellite reception around 137 MHz, and a longwire antenna is suitable for HF bands below 30 MHz. Always ensure proper impedance matching for optimal performance.

The 0.5 PPM TCXO provides exceptional frequency stability, minimizing tuning drift which is crucial for decoding narrowband signals like digital modes or tracking satellites. Direct sampling allows the SDR to natively receive HF signals (100 kHz - 30 MHz) without requiring an external upconverter, simplifying your setup and improving the signal-to-noise ratio for these lower frequencies compared to the traditional mixer method.

No, the Nooelec NESDR SMArt HF Bundle is a receive-only software-defined radio. It is designed solely for capturing and analyzing RF signals. Attempting to modify it for transmission would damage the sensitive front-end components and is not supported. For transmission capabilities, you would need a dedicated SDR transceiver like a HackRF One or a USRP device.

The SDR is bus-powered directly from a USB port on your computer or a powered USB hub, requiring a standard 5V DC supply. Ensure your USB port can provide sufficient current (typically 500mA is ample). Avoid using excessively long or low-quality USB cables, as voltage drop can cause instability or prevent the device from being recognized by your host system.
