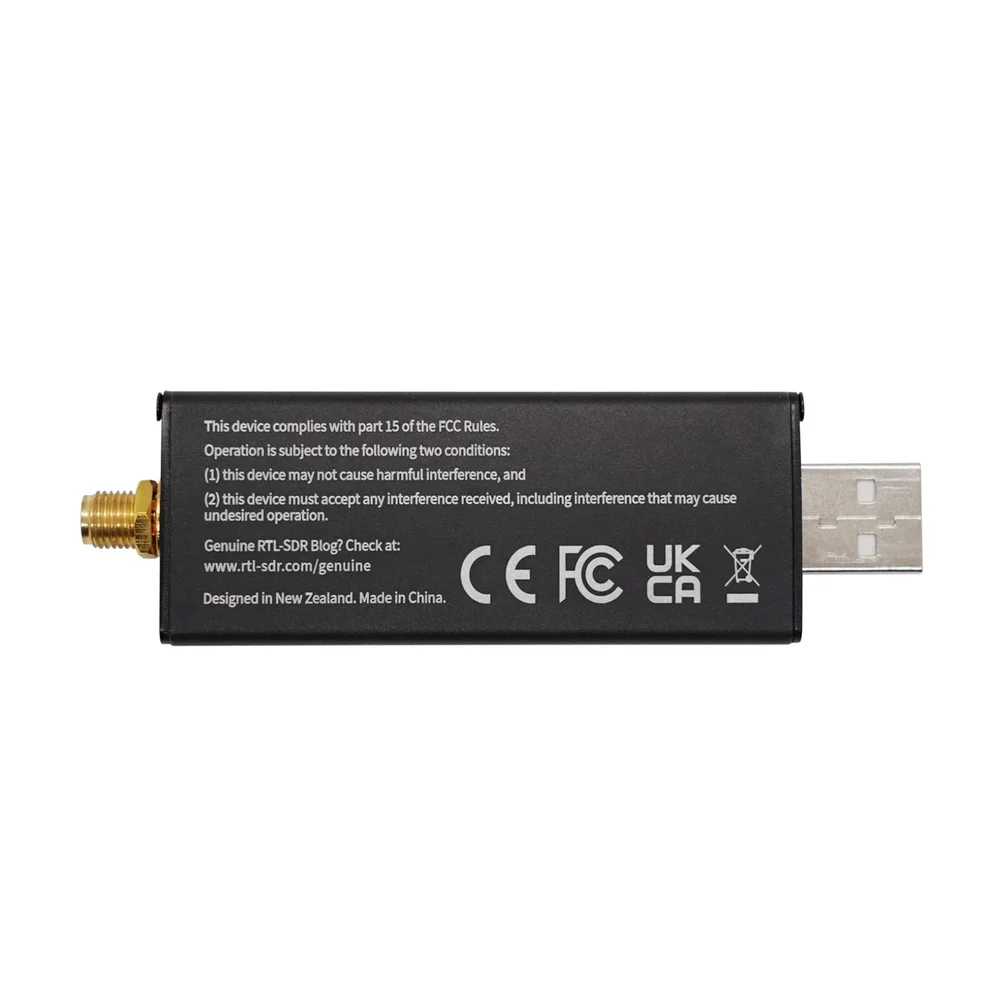

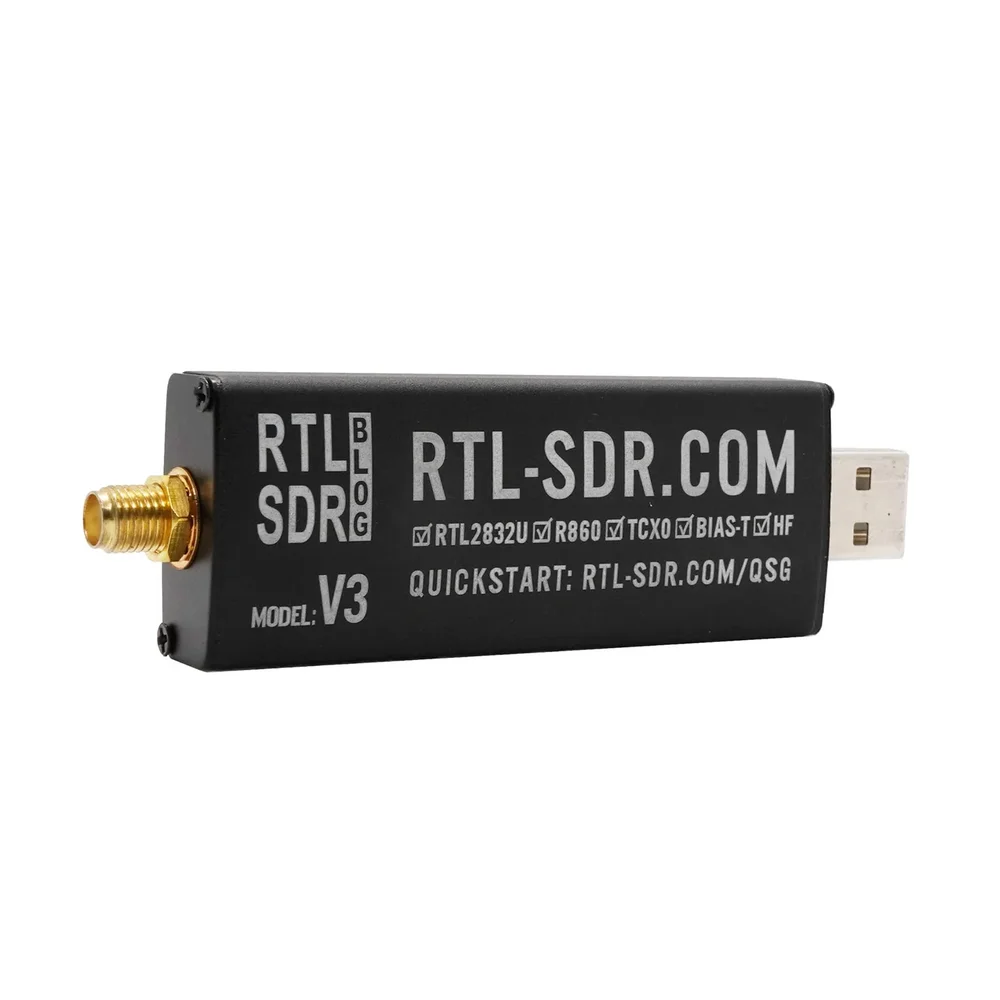

RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA SDR Dongle w/ Antenna Kit
RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA SDR Dongle w/ Antenna Kit - Image 2
RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA SDR Dongle w/ Antenna Kit - Image 3
RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA SDR Dongle w/ Antenna Kit - Image 4
SKU: IOWC-1905
📋 GST Invoice Available

RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA SDR Dongle w/ Antenna Kit

₹6,929.00 (Inclusive of all taxes)
Out of Stock

The RTL-SDR Blog Blog V3 is a professional-grade USB software-defined radio (SDR) receiver featuring an R860 tuner and RTL2832U chipset for monitoring signals from 500 kHz to 1.7 GHz. Its 1 PPM TCXO ensures exceptional frequency stability for applications like ADS-B aircraft tracking, weather satellite decoding, and RF analysis.

Features

  • Wideband RF reception from 500 kHz to 1.7 GHz with the R860 tuner and RTL2832U chipset for versatile signal monitoring.
  • High-stability 1 PPM Temperature-Compensated Crystal Oscillator (TCXO) ensures precise frequency tuning and reduced drift.
  • Integrated bias tee support powers active antennas and low-noise amplifiers (LNAs) directly from the USB dongle.

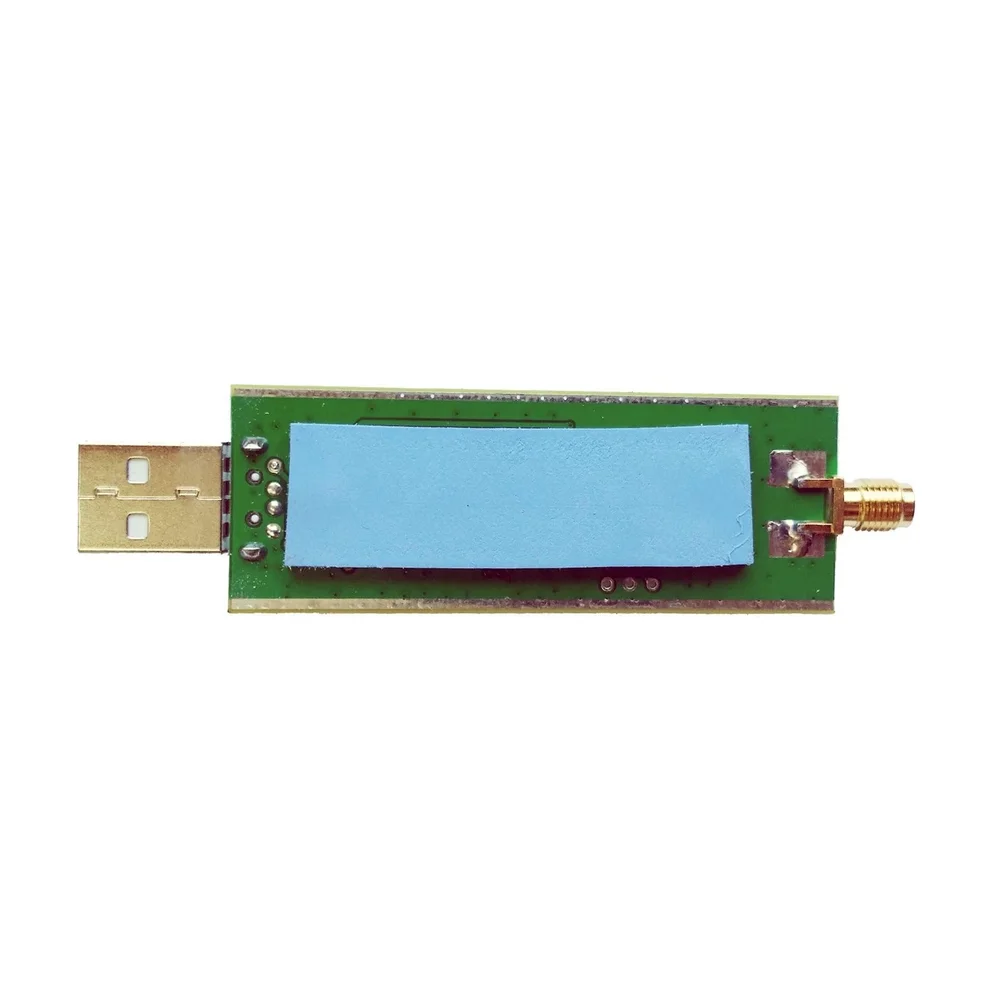

  • Aluminum shielded enclosure with a thermal cooling pad minimizes RF interference and maintains stable operation.
  • Includes a portable dipole antenna kit for immediate VHF/UHF terrestrial and satellite signal reception.

Out of stock

Description

The RTL-SDR Blog Blog V3 is an advanced software-defined radio receiver engineered for reliable RF signal acquisition and analysis. It combines the RTL2832U ADC chipset with the high-performance R860 tuner IC, delivering an instantaneous bandwidth of up to 3.2 MHz across a broad spectrum from longwave HF bands up to 1.7 GHz. The integrated 1 PPM TCXO oscillator provides critical frequency accuracy, essential for decoding digital protocols and tracking narrowband signals.

Designed for both hobbyists and professionals, the dongle features a robust aluminum enclosure that acts as both an RF shield and a heatsink, paired with a thermal pad for passive cooling. The SMA female connector offers reliable antenna coupling, while the built-in bias tee simplifies the integration of external active antennas. This SDR platform is fully compatible with major operating systems and popular software like SDR#, HDSDR, and CubicSDR, making it a cornerstone tool for wireless experimentation and telemetry reception.

Key Features

  • Broad frequency coverage from 500 kHz to 1.7 GHz for monitoring AM/FM radio, aviation ADS-B, marine AIS, and satellite signals.
  • Precision 1 PPM TCXO provides superior frequency stability compared to standard crystal oscillators, critical for digital decoding.
  • Direct sampling mode enables HF reception below 24 MHz without an upconverter, suitable for amateur radio and shortwave listening.
  • Integrated bias tee circuit supplies DC power over the antenna line to support active antennas and LNAs, simplifying field setups.
  • Aluminum RF-shielded case with a thermal pad dissipates heat and reduces internal noise, improving overall sensitivity.
  • Plug-and-play compatibility with Windows, Linux, macOS, and Android via standard USB 2.0 interface and driver support.
  • Supports stable 2.4 MHz bandwidth for continuous decoding and up to 3.2 MHz instantaneous bandwidth for wideband scanning.
  • Includes a versatile portable dipole antenna kit with adjustable elements for quick deployment on VHF/UHF frequencies.

Applications

  • Aviation monitoring and ADS-B aircraft tracking for flight radar applications.
  • Weather satellite (NOAA, Meteor-M2) image and telemetry decoding.
  • Marine AIS ship tracking and navigation signal reception.
  • Amateur radio listening, shortwave broadcasting, and HF communication.
  • RF signal analysis, spectrum monitoring, and wireless security research.
  • FM radio, DAB, DVB-T, and other terrestrial broadcast reception.
  • IoT device signal investigation and protocol analysis.

Technical Specifications

ChipsetRTL2832U
Tuner ICR860
Frequency Range500 kHz to 1.7 GHz
Instantaneous BandwidthUp to 3.2 MHz
Stable Bandwidth2.4 MHz
Oscillator Stability1 PPM TCXO
Connector TypeSMA Female
HF Reception ModeDirect Sampling
Power SourceUSB 2.0 Bus Powered
Cooling SystemAluminum Case with Thermal Pad
Operating SystemsWindows, Linux, macOS, Android
Dimensions10 cm x 10 cm x 3 cm

Frequently Asked Questions

What software is compatible with this RTL-SDR Blog Blog V3 dongle?

The dongle is compatible with popular SDR software like SDR#, HDSDR, SDR Console, CubicSDR, and Gqrx on Windows, Linux, and macOS. For ADS-B, use dump1090 or Virtual Radar Server; for satellite decoding, use SDR# with plugins like SatDump or WXtoImg. Android support is available via apps like SDR Touch. Install the Generic RTL-SDR Blog drivers from the official blog before use.

How do I use the built-in bias tee to power an active antenna?

The bias tee is enabled by default on the V3 model. Connect your active antenna or LNA to the SMA port. The dongle will supply approximately 4.5-5V DC over the antenna line. Ensure your external device operates within this voltage range and does not exceed the current limit. No software configuration is typically needed, but some applications allow you to toggle the bias tee feature.

What is the performance like for HF reception below 24 MHz?

For HF bands (below 24 MHz), the dongle uses a direct sampling mode by connecting the antenna to the 'Direct Sampling' pin or selecting the mode in software. While functional, sensitivity is lower compared to dedicated HF receivers or upconverters. For improved HF performance, consider adding a passive or active upconverter or using a separate HF antenna tuner to boost signal levels before the dongle.

What are the power requirements and can it be used with a Raspberry Pi?

The dongle is USB bus-powered and draws less than 300mA, making it compatible with Raspberry Pi 3/4/5 and most single-board computers. Use a powered USB hub if your Pi's USB ports cannot supply sufficient stable current, especially when also powering an active antenna via the bias tee. Ensure your OS has the RTL-SDR Blog kernel modules installed for driver support.

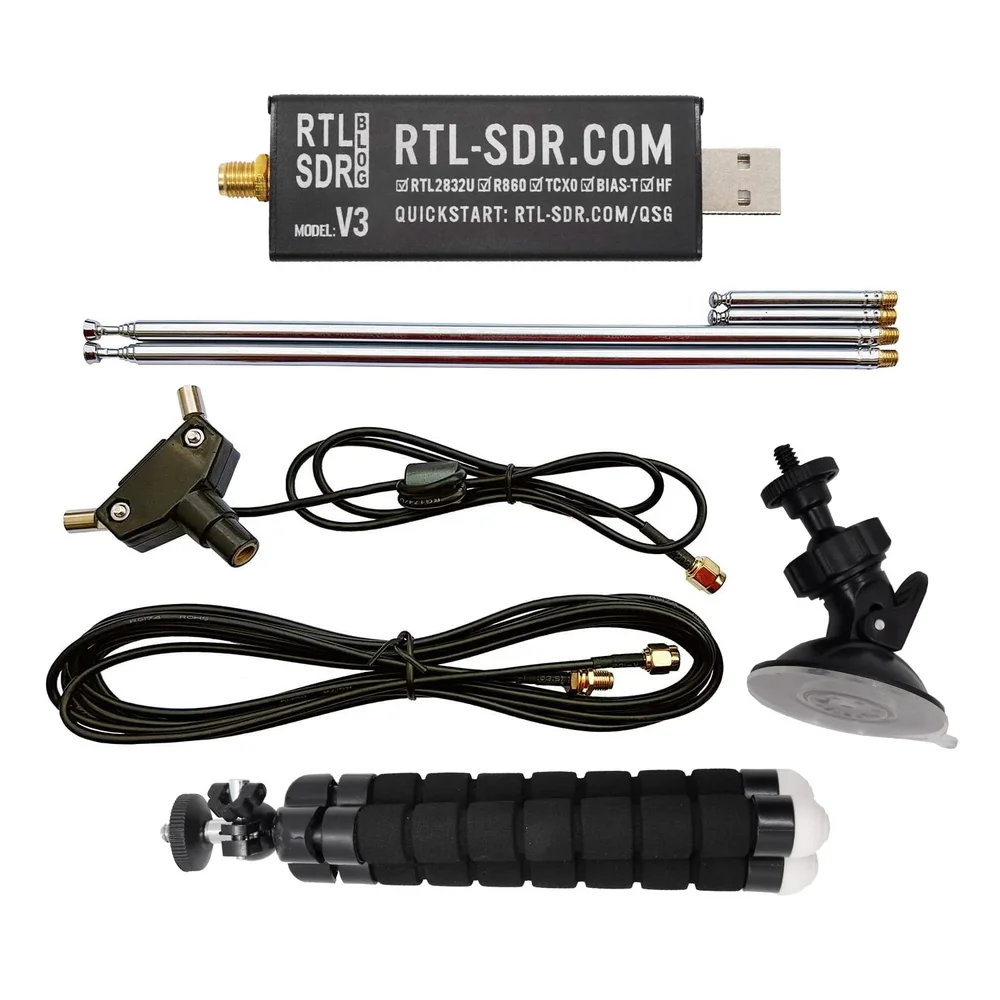

Package Includes

  • 1 x RTL-SDR Blog Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio Dongle
  • 1 x Portable Dipole Antenna Kit

Additional Information

Weight 0.248 kg
Dimensions 10 × 10 × 3 cm

Related Products

Out of Stock

LWC-GSM-MM-03 GSM Antenna Cable w/ SMA Plug, 1m RG58

144.00
Learn More
Out of Stock

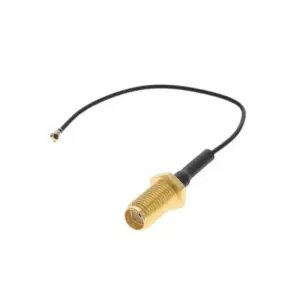

IPEX1 to SMA Female Connector Cable RG1.13 15cm

82.00
Learn More
Out of Stock

Generic 30cm SMA Female to Stripping Head RG1.13 RF Cable

62.00
Learn More
Out of Stock

LWC-GSM-MM-03 GSM Antenna Cable w/ SMA Plug (3.0M RG58)

217.00
Learn More
Out of Stock

ReadyToSky TX433-XPA100 433MHz SMA Antenna w/ Magnetic Base

459.00
Learn More
Out of Stock

LWC-433-MM-03 433MHz SMA Male RG58 Coaxial Cable (3.0M)

418.00
Learn More
Out of Stock

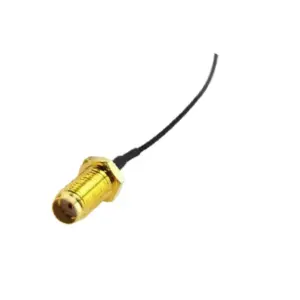

Generic 10cm SMA Female to Stripping Head Connector Cable RG1.13

70.00
Learn More
Out of Stock

LWC-4G-MM-06 5.0M-RG58 Coaxial Cable Assembly

322.00
Learn More
Out of Stock

Nooelec NESDR SMArt v5 SDR - HF/VHF/UHF (100kHz-1.75GHz) RTL2832U & R820T2

6,399.00
Learn More
Out of Stock

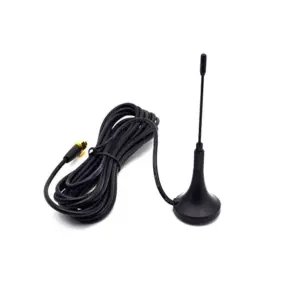

SAM Head Sucker GSM Antenna 7dBi SMA Male w/ Magnetic Base
