Nooelec NESDR Mini 2 USB RTL-SDR Blog & ADS-B Receiver Set w/ Antenna
The Nooelec NESDR Mini 2 is a compact USB software-defined radio (SDR) receiver based on the RTL2832U and R820T2 tuner, covering 25MHz to 1750MHz for ADS-B, amateur radio, and signal analysis. It’s plug-and-play compatible with SDR#, HDSDR, and MATLAB.
Features
- Broadband RF receiver covering 25MHz to 1750MHz for versatile signal monitoring and decoding.
- Upgraded R820T2 tuner provides improved sensitivity and signal-to-noise ratio over Generic dongles.
- RTL2832U chipset handles demodulation and USB interfacing for real-time I/Q data streaming.

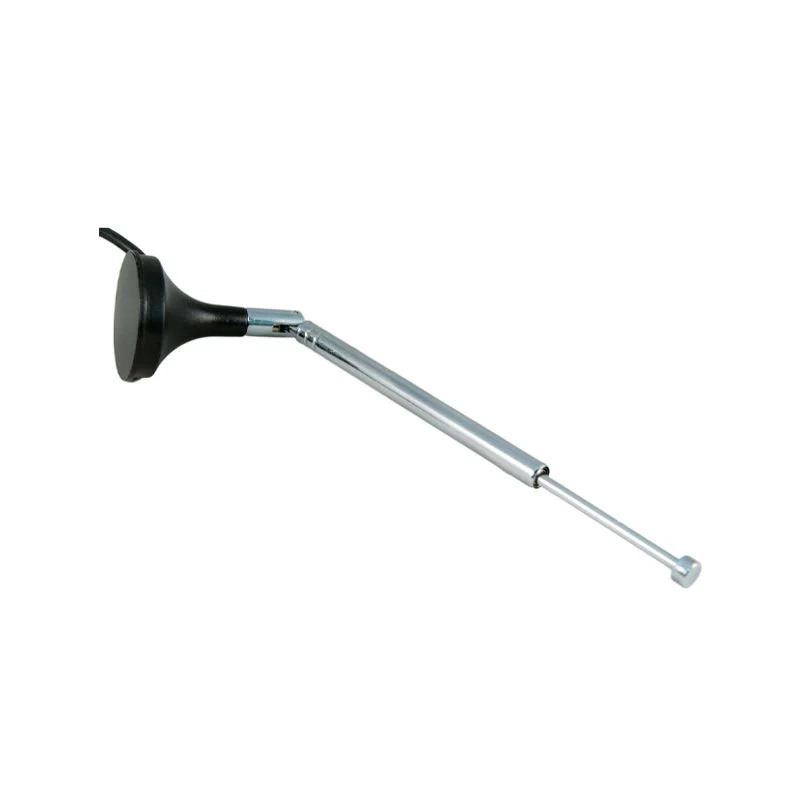

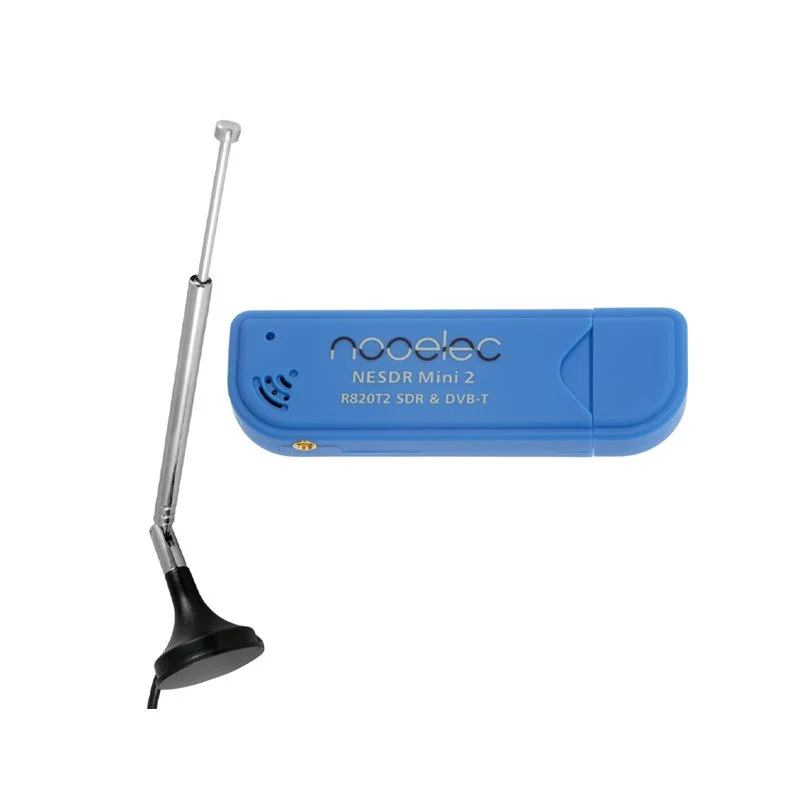

- Includes a high-quality telescopic antenna with MCX connector for immediate setup and experimentation.
- ESD-safe design and enhanced components ensure reliable operation for hobbyists and developers.
Out of stock

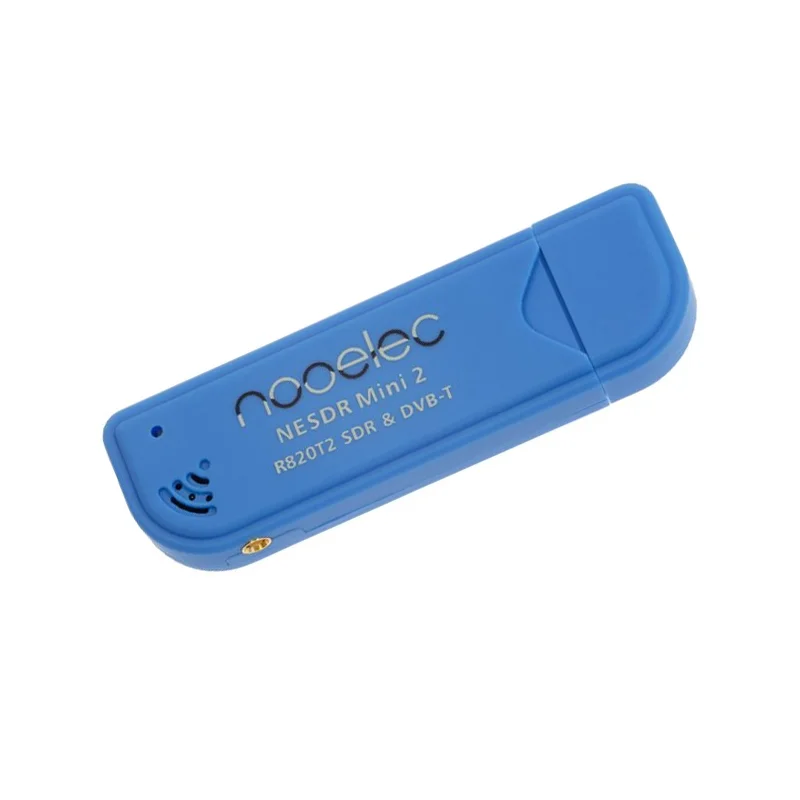

The Nooelec NESDR Mini 2 is a professional-grade, entry-level software-defined radio (SDR) that transforms any computer into a wideband RF spectrum analyzer and receiver. Built around the proven RTL2832U USB controller and the enhanced R820T2 tuner, this dongle provides direct sampling and demodulation of signals across a massive 25MHz to 1750MHz frequency range, capturing everything from ADS-B aircraft transponders at 1090MHz to VHF/UHF amateur radio bands and weather satellite downlinks.
Its compact, ESD-protected design houses carefully selected passive components—including a low-phase-noise crystal and high-Q inductors—which collectively reduce spurious signals and improve overall reception stability compared to standard DVB-T TV tuners. The integrated MCX antenna port allows for quick connection of the included telescopic whip or external high-gain antennas, making it an indispensable tool for wireless protocol analysis, spectrum monitoring, and educational projects in software-defined radio.
Additional Information
| Weight | 0.019 kg |
|---|---|
| Dimensions | 8.5 × 2.5 cm |
