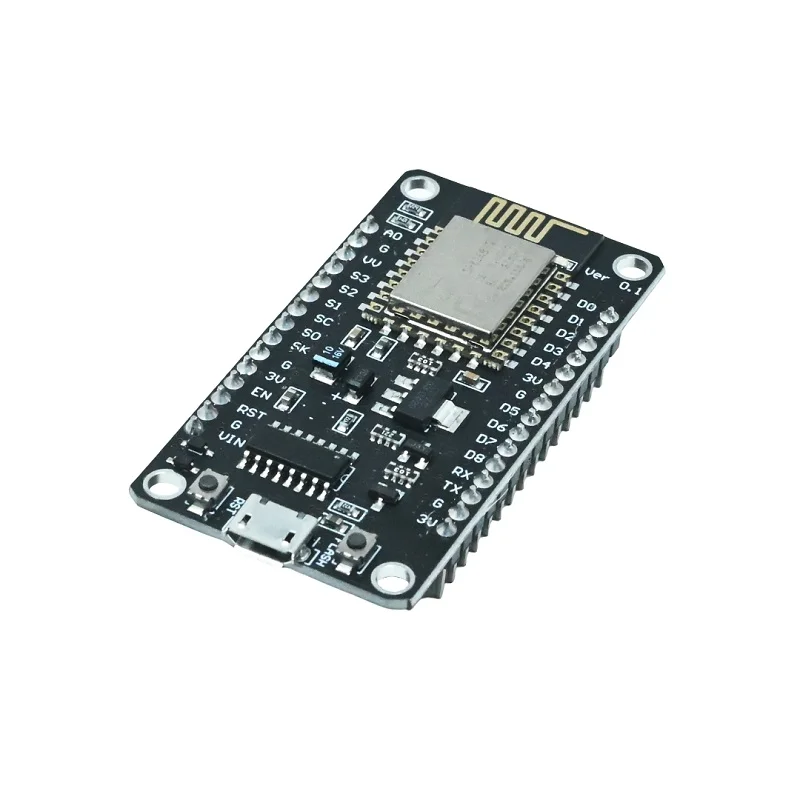

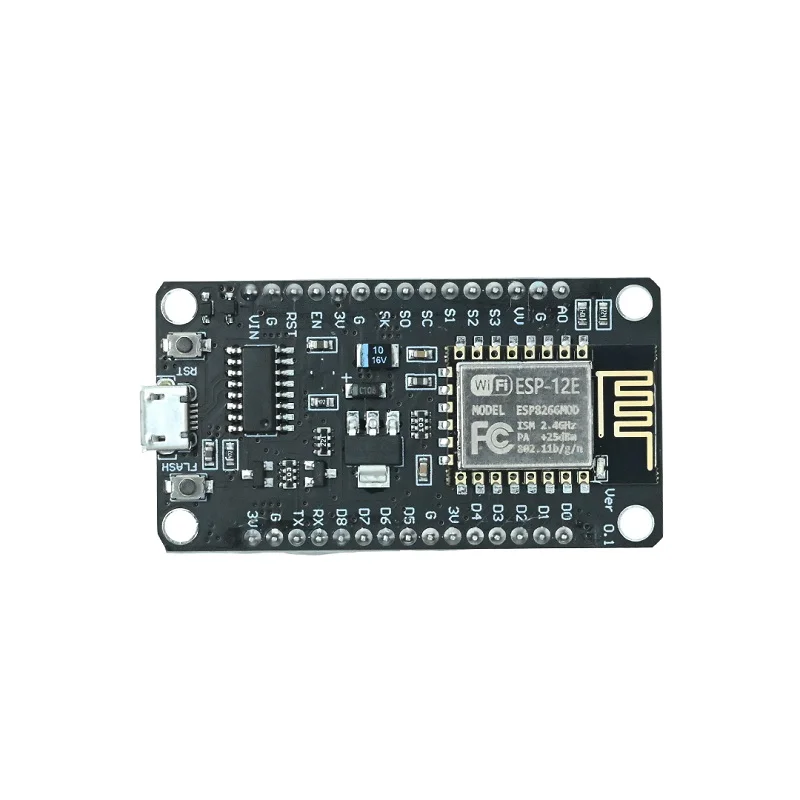

NodeMCU ESP8266 ESP-12E/F WiFi IoT Dev Board w/ FT232

First, install the ESP8266 board package via the Arduino IDE's Boards Manager. Connect the board via USB, select 'NodeMCU 1.0 (ESP-12E Module)' as your board, and choose the correct COM port. The FT232 chip handles serial communication, so you can upload sketches directly without pressing any physical reset buttons. Ensure your code configures the correct GPIO pins, as the pin numbering in the Arduino environment maps to the ESP8266's internal GPIO indices, not the board's labeled D-pins.

Both chips provide USB-to-serial conversion, but the FT232R (used here) is known for its robust driver support across Windows, macOS, and Linux, often requiring no manual driver installation on modern OSes. It also typically offers more stable data transfer rates for high-speed flashing. The CP2102 is another common, cost-effective solution. The functional result is identical—both enable serial communication and firmware uploads—but the FT232 is generally preferred for its plug-and-play reliability and widespread compatibility in development environments.

The board is powered via its micro-USB port at 5V. An onboard linear regulator steps this down to the 3.3V required by the ESP8266. During active Wi-Fi transmission, the ESP8266 can draw peaks of up to 170mA. In deep sleep mode, current consumption can drop to around 20µA, making it suitable for battery-powered applications. For stable operation, ensure your USB port or external 5V supply can deliver at least 500mA. Do not apply voltages above 3.3V directly to any GPIO pin, as they are not 5V tolerant.

Yes. You first need to flash the NodeMCU firmware binary onto the ESP8266. This can be done using a tool like esptool.py or the NodeMCU Flasher GUI. After flashing, you can connect via a serial terminal at 9600 baud to write and execute Lua scripts directly. The firmware provides a high-level API for Wi-Fi, GPIO, and network functions. Remember that using the Lua interpreter consumes more RAM and flash compared to programming in C++ via the Arduino IDE, which offers finer control and better performance for complex projects.
